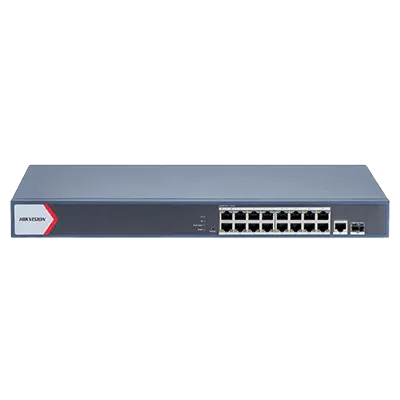

DS-3E1518P-EI/M

General

Shell

Metal material

Net Weight

2.7 kg (5.9 lb)

Gross Weight

2.9 kg (6.4 lb)

Dimensions (W × H × D)

440.0 mm × 220.8 mm × 44.0 mm (17.32'' × 8.69'' × 1.73'')

Operating Temperature

0 °C to 45 °C (0 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

100~240 V AC, 50/60 Hz, Max. 2.5 A

Installation Mode

Rack (equipped with mounting ears)

Max. Power Consumption

150 W

Power Consumption in Idle

20 W

Surge Protection

6 kV

Network Parameters

Ports

16 × Gigabit PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table

8 K

Switching Capacity

56 Gbps

Packet Forwarding Rate

41.66 Mpps

Internal Cache

4.1 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af, IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 16

Max. Port Power

30 W

PoE Power Budget

130 W

Software Function

Long Range

Ports 1 to 16: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

Port Isolation

Ports 1 to 16: port isolation mode to improve network security.

Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.

PoE Watchdog

Ports 1 to 16: auto detect and restart the cameras that do not respond.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation groups.

Loop Prevention

Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.

Support 802.1D STP. Suppport 802.1w RSTP.

VLAN

VLAN is used for network scale planning and network health improvement. Support 802.1Q.

Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 32 VLAN.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

Display the port rate.

Display the port bandwidth utilization rate.

Display the PoE power usage.

Display topology information.

Display the alarm status.

Restart ports and devices.

Enable port long-rage mode.

Remotely upgrade the device.

System Maintenance

Support device management via web.

Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.

Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support remote management via Hik-Partner Pro.

Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected.

Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020)

Safety

CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (201165EU); WEEE (201219EU);

Reach (Regulation (EC) No.19072006)
