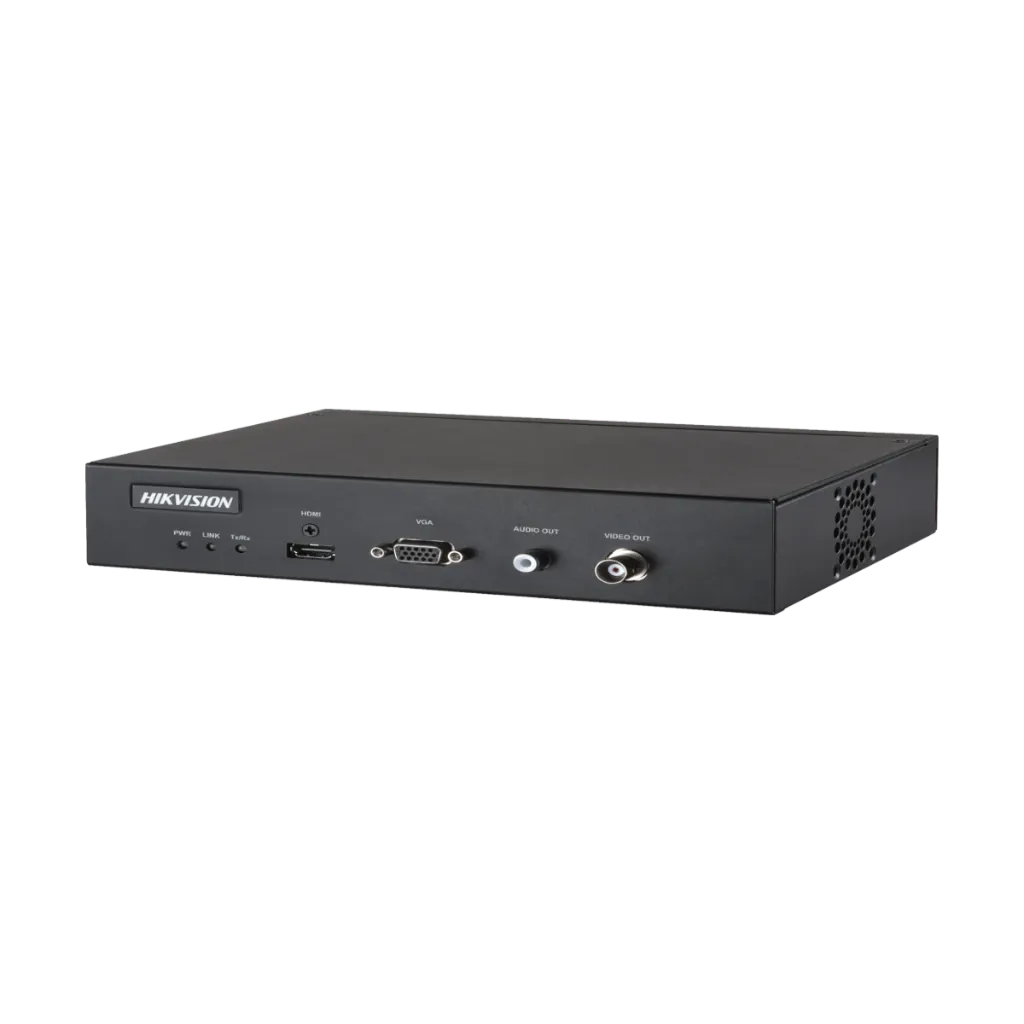

DS-6901UDI
Decoder, 1 × HDMI out
- Decodes up to 32 MP, 16 channels
- 1 × HDMI 1.4 output, up to 4K
- ONVIF: works with other camera brands
DS-6901UDI
Decoder, 1 × HDMI out
- Decodes up to 32 MP, 16 channels
- 1 × HDMI 1.4 output, up to 4K
- ONVIF: works with other camera brands
Key specs
- Decoder
- Decoding: 1-ch 32 MP / 24 MP
- Up to 32 MP, 16 channels
- 1 × HDMI 1.4 output, max 4K
- 1 × BNC (CVBS) output
- Network: 1 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45)
| Interface | |
|---|---|
| Serial Interface | 1 × RS-232 serial port (RJ-45) + 1 × RS-485 serial port |
| Network Interface | 1 × 10/100/1000 Mbps self-adaptive Ethernet interface (RJ-45) |
| Alarm In Interface | 8 channels of alarm input |
| Alarm Out Interface | 8 channels of alarm output |
| Power | |
| Power Interface | External 12 VDC |
| Device Consumption | < 15 W |
| Video Output | |
| Video Output Interface Type | HDMI 1.4 |
| Video Output Interfaces | 1 |
| Max. Video Output Resolution | 4K |
| Video Output Resolutions | 3840 × 2160@30 Hz, 2560 × 1440@30 Hz, 1920 × 1200@60 Hz, 1920 × 1080@60 Hz, 1920 × 1080@50 Hz, 1680 × 1050@60 Hz, 1600 × 1200@60 Hz, 1280 × 1024@60 Hz, 1280 × 720@60 Hz, 1280 × 720@50 Hz, 1024 × 768@60 Hz |
| Loading Capacity for Video Output to LED | Single port load 2600000; Width 144 to 3840; Height 144 to 2160 |
| Video Output Interface (BNC) | 1 channel of CVBS output |
| Video Output Resolution (BNC) | PAL 704 × 576@25 Hz; NTSC 704 × 480@30 Hz |
| Video Decoding | |
| Video Decoding Formats | H.264, H.265, Smart264, Smart265, MJPEG |
| Video Decoding Channels | 16 |
| Video Decoding Resolution | Up to 32 MP |
| H.264/H.265 Decoding Capability (real time) | 1-ch 32 MP / 24 MP; 2-ch 12 MP; 4-ch 8 MP; 5-ch 6 MP; 9-ch 4 MP; 16-ch 1080p and lower |
| MJPEG Decoding Capability | 4-ch 1080p and lower |
| HIK264 Decoding Capability | 2-ch 720p and lower |
| Audio Output | |
| Audio Output Interface Type | Embedded HDMI audio output port or RCA |
| Audio Output Interfaces | 1 |
| Audio Decoding | |
| Audio Decoding Formats | G711A, G711U, G722.1, G726-16/U/A, MPEG, AAC-LC, PCM |
| Video Wall | |
| Video Walls | 1 |
| Video Wall Scale | ≤ 1 |
| Split Window | Supported |
| Window Division per Output Port | 1, 2, 4, 6, 8, 9, 12, 16 |
| Layers Per Screen | 4 × 1080p or 2 × 4K |
| Layers per Device | Layers Per Screen × Output Interface(s) |
| Scenes | 64 |
| Plans | 100 view groups on the HCP client |
| General | |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | 0% RH to 90% RH |
| Net Weight | ≤ 1.12 kg (2.47 lb) |
| Gross Weight | ≤ 1.17 kg (2.58 lb) |
| Dimensions (W × H × D) | 220 mm × 45 mm × 148 mm (8.66 in × 1.77 in × 5.83 in) |
| Packing List | 1 × decoder, 1 × regulatory compliance and safety information manual, 1 × power adapter, 1 × grounding cable |
| Physical Interface | |
| Indicators | PWR, LINK, TX/Rx |
| Ports | HDMI output, RS232 (device debug serial port), LAN (1000 Mbps electrical port), RS485, ALARM (8 inputs, 8 outputs), AUDIO OUT, DC12 V power, VIDEO OUT (BNC) |
Questions & answers
Know before you buy
Quick answers about the DS-6901UDI, and how it compares.
How many cameras can it show?
Up to 16 channels at the same time (decoding capacity: 1-ch 32 MP / 24 MP, 2-ch 12 MP, 4-ch 8 MP, 5-ch 6 MP, 9-ch 4 MP, 16-ch 1080p and lower).
How many screens can it drive?
1 HDMI 1.4 output, up to 4K.
Does it work with other camera brands?
Yes, it takes ONVIF cameras as well as Hikvision cameras and NVRs.
Can I buy it online?
Video wall controllers and decoders are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
