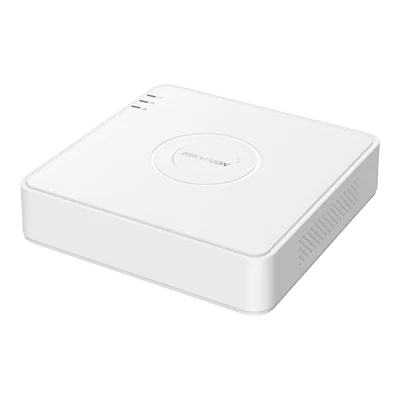

DS-7108HGHI-M1

Hikvision DS-7108HGHI-M1 8-ch Mini 1U H.265 DVR, Deep learning based human and vehicle targets classification of Motion Detection 2.0, H.265 Pro+/H.265 Pro/H.265 video compression, HDTVI/AHD/CVI/CVBS/IP video input, Audio via coaxial cable, IP Video Input: 2-ch (up to 10-ch), HDMI/VGA simultaneous output, 72 Mbps Total Bandwidth, 1 SATA interface, 12 VDC, 1.5 A.

https://www.esco.pk/web/image/product.template/24316/image_1920?unique=7a45941
  • Type
  • DVR Series
  • Channels
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Hikvision
Type: Turbo HD
DVR Series: 7100HGH
Channels: 4-8 Ch
SATA Interfaces (HDD Slots): 1 HDD Slot
​

Analog Video Input

Hikvision DS-7108HGHI-M1 8-ch Mini 1U H.265 DVR

Motion Detection 2.0

Deep learning based human and vehicle targets classification of Motion Detection 2.0

Encoding Resolution

Encoding ability up to 1080p lite @ 15 fps

Video Input

HDTVI/AHD/CVI/CVBS/IP video input

Audio over Coaxial

Support Audio over Coaxial

SATA Interface

1 SATA interface (up to 4 TB capacity)

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording

Video Compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding Resolution

For 1080p stream access: 1080p Lite / 720p Lite

For 720p stream access: 720p/WD1

For SD stream access: WD1/4CIF

Frame Rate

Main stream:

For 1080p stream access: 1080p Lite / 720p Lite @15 fps

For 720p stream access: 720p / WD1 @ 15 fps

For SD stream access: WD1 / 4CIF / VGA @25 fps (P)/30 fps (N)

Sub-stream:

For 1080p and 720p stream access: CIF/QVGA@15 fps

For SD stream access: CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 4 Mbps

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

2-ch (up to 10-ch)

Up to 5 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog Video Input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

1-ch RCA (2.0 Vp-p, 1 KΩ)

8-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

Reuse the first audio input

Synchronous playback

8-ch

Network

Total Bandwidth

72 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connection

64

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 4 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

N/A

General

Power Supply

12 VDC, 1.5 A

Consumption

≤ 17 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to +31 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)

Weight

≤ 1 kg (without HDD, 2.2 lb.)
