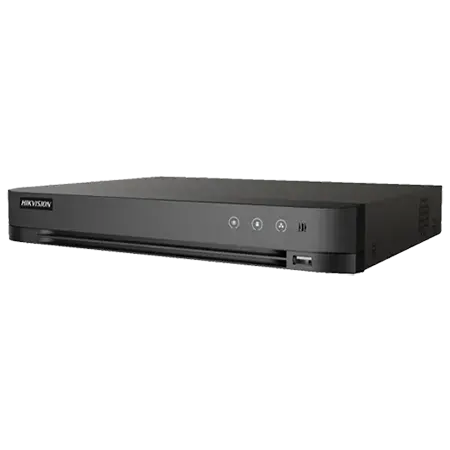

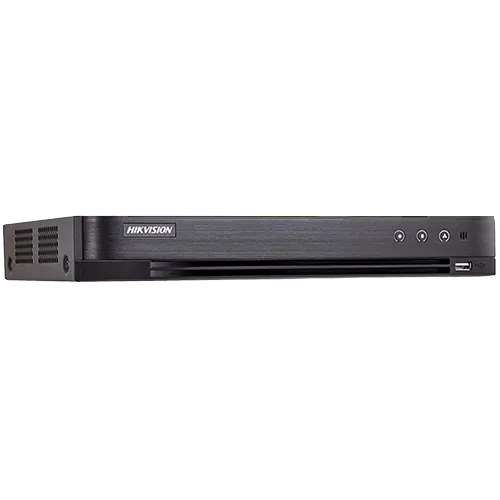

DS-7208HQHI-K1/E(S)

Hikvision 8 Ch. Turbo DVR, HD/AHD/Analog interface input, 8-ch Analog video, 8-ch Audio over coaxial, 4-ch IP Video Input, Up to 12 network cameras can be connected on Enhanced IP Mode, H.265/H.265+ Compression, 1 SATA Interface, 4 MP lite@15fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF @ 25fps, 96Mbps Total Bandwidth, Supports HDTVI, AHD, CVI, CVBS Output, Standalone 1U Case.

https://www.esco.pk/web/image/product.template/6668/image_1920?unique=af37e48

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Contact Us
Hikvision
Type: Turbo HD
DVR Series: 7200HQH
Channels: 4-8 Ch
SATA Interfaces (HDD Slots): 1 HDD Slot

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

​

Analog Video Input

8-ch BNC interface DVR

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

Encoding ability up to 1080p@15 fps

Smart Function

Support multiple VCA (Video Content Analytics) events

Support 4-ch line crossing detection and intrusion detection

Video Input

HDTVI/AHD/CVI/CVBS/IP video input

Video Output

VGA/HDMI Output

Audio

Audio over coaxial cable

Transmission Distance

Max. 800 m for 1080p and 1200 m for 720p HD-TVI signal

Recording

Video compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding resolution

When 1080p lite mode is not enabled:

4 MP lite / 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF When 1080p Lite mode is enabled:

4 MP lite / 3 MP / 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF

Frame rate

Main stream:

When 1080p Lite mode not enabled: For 4 MP stream access:

4 MP lite@15fps; 1080p lite / 720p / WD1 / 4CIF / VGA / CIF@25fps (P) / 30fps (N)

For 3 MP stream access: 3 MP / 1080p / 720p / VGA / WD1 / 4CIF / CIF@15fps

For 1080p stream access:

1080p / 720p@15fps; VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

For 720p stream access: 720p / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

When 1080p Lite mode enabled:

4 MP lite / 3 MP@15fps; 1080p lite / 720p lite / VGA / WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

Sub-stream:

WD1 / 4CIF@12fps; CIF@25fps (P) / 30fps (N)

Video bit rate

32 Kbps to 6 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

4-ch (up to 12-ch)

Up to 6 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog video input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection



HDTVI input

4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

*: The 3 MP signal input is only available for channel 1 / 2 of DS-7208HQHI-K1

AHD input

4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL / NTSC

CVBS output

N/A

VGA output

1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

HDMI output

1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

HDMI and VGA simultaneous output

Audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

8-ch

Network

Remote connection

64

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary interface

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

Serial interface

N/A

USB interface

2 × USB 2.0

Alarm in/out

N/A

General

Power supply

12 VDC

Consumption (without HDD)

≤ 9 W

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight (without HDD)

≤ 1.6 kg
