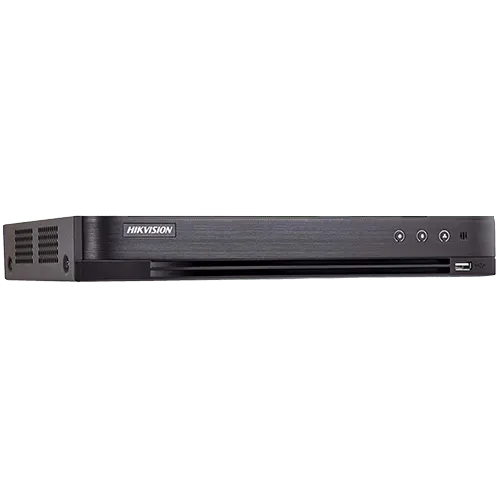

DS-7208HUHI-K1/E(S)

Hikvision 7200 Series Turbo 8 Channel DVR, Support HDTVI/AHD/CVI/CVBS/IP, 8-ch Analog video, 8-ch IP Video Input & 1-ch Audio Input, H.265/H.265+ Compression, 1 SATA Interface, 8 MP@8fps / 5 MP@12fps / 4 MP@15fps / 3 MP@18fps 1080p / 720p@25fps, 12VDC

https://www.esco.pk/web/image/product.template/6626/image_1920?unique=a5b6226
  • Type
  • DVR Series
  • Channels
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Hikvision
Type: Turbo HD
DVR Series: 7200HUH
Channels: 4-8 Ch
SATA Interfaces (HDD Slots): 1 HDD Slot
​

Analog Video Input

8-ch BNC interface DVR

Video Compression

H.265 Pro+/H.265 Pro/H.265 video compression

Encoding Resolution

Encoding ability up to 8 MP lite@15 fps, 5 MP@12 fps

Smart Function

Support multiple VCA (Video Content Analytics) events

Support line crossing detection and intrusion detection

2-ch sudden scene change detection

Video Input

HDTVI/AHD/CVI/CVBS/IP video input

Video Output

VGA/HDMI Output, HDMI and VGA simultaneous output

Transmission Distance

Max. 800 m for 1080p and 1200 m for 720p HDTVI signal

Interface

Audio In/Out via Coaxial

1 SATA Interface

Recording

Video compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding resolution

When 8 MP Lite mode is not enabled:

8 MP / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF

When 8 MP Lite mode is enabled:

8  MP Lite / 3MP / 1080P / 720P / WD1 / 4CIF / VGA / CIF

Frame rate

Main stream:

When 8 MP Lite mode is not enabled:

8 MP@8 fps / 5MP@12 fps / 4 MP@15 fps / 3 MP@18 fps 1080p / 720p / WD1 / 4CIF / VGA / CIF@25 fps (P) / 30 fps (N)

Sub-stream:

WD1 / 4CIF / CIF@25fps (P) / 30fps (N)

Video bit rate

32 Kbps to 10 Mbps

Dual stream

Support

Stream type

Video, Video & Audio

Audio compression

G.711u

Audio bit rate

64 Kbps

Video and Audio

IP video input

8-ch (up to 16-ch)

Up to 8 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog video input

8-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI input

8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI input

5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS input

PAL / NTSC

CVBS output

N/A

VGA output

1-ch, 1920 × 1080 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

HDMI output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI and VGA simultaneous output

Audio input

4-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio output

1-ch, RCA (Linear, 1 KΩ)

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

8-ch

Network

Remote connection

64

Network protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Network interface

1, RJ45 10M/100M/1000M self-adaptive Ethernet interface

Auxiliary interface

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

Serial interface

N/A

USB interface

2 × USB 2.0

Alarm in/out

N/A

General

Power supply

12 VDC

Consumption (without HDD)

≤ 8 W

Working temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

265 × 225 × 48 mm (10.4 × 8.9 × 1.9 inch)

Weight (without HDD)

≤ 1.6 kg (3.5 lb)
