DS-7604NI-K1

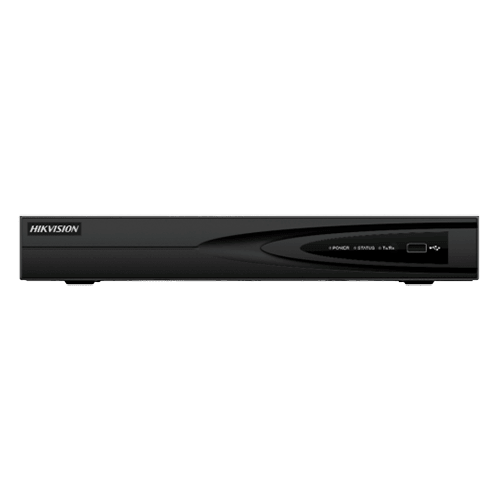

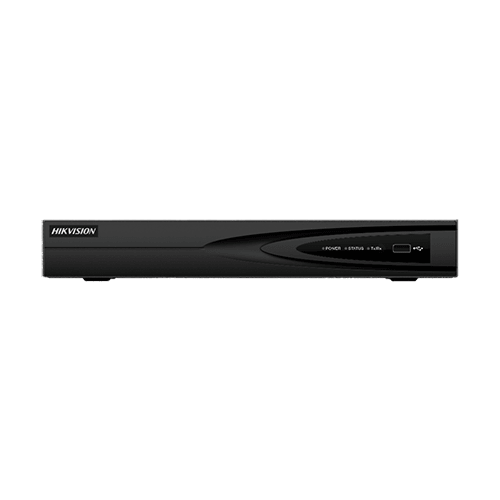

Hikvision 4-Ch NVR (Network Video Recorder), 8MP Resolution Support, H.265+/H.265 Support, Incoming/Outgoing Bandwidth : 40 Mbps/80 Mbps, IEEE 802.11b/g/n, 1 SATA interface for HDD, Smart Feature Set, 12 VDC

https://www.esco.pk/web/image/product.template/4737/image_1920?unique=b4f9617

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Contact Us
Hikvision
Type: IP
Channels: 4-8 Ch
NVR Series: 7600 Series
SATA Interfaces (HDD Slots): 1 HDD Slot

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

​

IP Video Input

Up to 4 IP cameras can be connected

Bandwidth

Incoming bandwidth: 40 Mbps

Outgoing bandwidth: 80 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Decoding Capacity

1-ch @ 8 MP / 4-ch @ 1080p

Video Output

VGA/HDMI Output

Smart Function

Centralized management of IP cameras

VCA detection alarm

SATA Interface

1 SATA interface connectable for recording and backup

Recording Resolution

Live view, storage, and playback of the connected camera at up to 8 MP resolution

Video/Audio input

IP video input

4-ch

Up to 8 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

Incoming bandwidth

40 Mbps

Outgoing bandwidth

80 Mbps

Video / Audio output

Recording resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA  / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

HDMI output resolution

1-ch, 4K (3840 × 2160) / 30Hz,1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz;

HDMI / VGA simultaneous output

VGA output resolution

1-ch, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz;

HDMI / VGA simultaneous output

Audio output

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding format

H.265 / H.265+ / H.264 / H.264+ / MPEG4

Live view  /  Playback resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous playback

4-ch

Capability

1-ch @ 8 MP / 4-ch @ 1080p

Network management

Network protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA

1 SATA interface

Capacity

Up to 6TB capacity for each disk

External interface

Network interface

1, RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface

USB interface

2 × USB 2.0

General

Power supply

12 VDC

Power

≤ 18W

Consumption (without hard disk)

≤ 10 W

Working temperature

-10 to +55º C (+14 to +131º F)

Working humidity

10 to 90 %

Chassis

1U chassis

Dimensions (W × D × H)

315 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight(without hard disk)

≤ 1 kg (2.2 lb)
