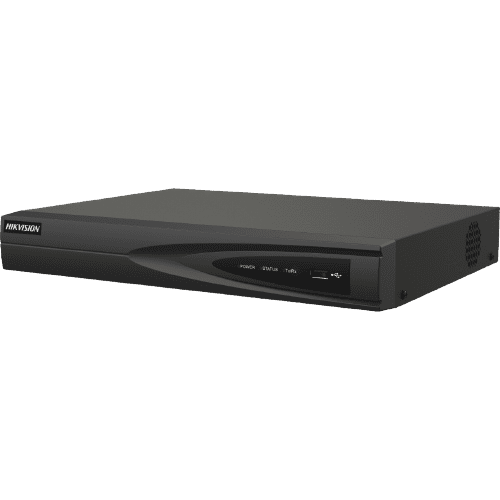

DS-7604NI-K1/4P

DS-7604NI-K1/4P Hikvision 4-ch 1U 4 PoE 4K NVR, 4-ch IP camera inputs, simultaneous HDMI and VGA outputs, 4 PoE network interfaces, 1 SATA interface for HDD connection, Configurable special camera smart functions, such as VCA detection, Incoming Bandwidth 40 Mbps, Outgoing Bandwidth 80 Mbps, Two-Way Audio, Decoding Capability 1-ch@8 MP /3-ch@4 MP /6-ch@1080p.

https://www.esco.pk/web/image/product.template/12501/image_1920?unique=7a45941
  • Type
  • Channels
  • NVR Series
  • PoE Ports
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Hikvision
Type: IP
Channels: 4-8 Ch
NVR Series: 7600 Series
PoE Ports: 4 Ch
SATA Interfaces (HDD Slots): 1 HDD Slot
​

IP Video Input

Up to 4 IP cameras can be connected

Bandwidth

Incoming bandwidth: 40 Mbps

Outgoing bandwidth: 80 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Decoding Capacity

1-ch @ 8 MP / 4-ch @ 1080p

Video Output

VGA/HDMI Output

Smart Function

Centralized management of IP cameras

VCA detection alarm

SATA Interface

1 SATA interface connectable for recording and backup

Recording Resolution

Live view, storage & playback of the connected camera at up to 8 MP resolution

Video and Audio

IP Video Input

4-ch

Incoming Bandwidth

40 Mbps

Outgoing Bandwidth

80 Mbps

HDMI Output

1-ch, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920 x 1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720  / 60 Hz

VGA Output

1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz

Video Output Mode

HDMI / VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1kΩ)

Decoding

Decoding Format

H.265+ / H.265 / H.264+ / H.264

Recording Resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA /  720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous playback

4-ch

Decoding Capability

1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw / G.711alaw / G.722 / G.726

Network

Remote Connection

32

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

   Network Interface

1 RJ-45 10 /100 Mbps self-adaptive Ethernet interface

PoE Interface

4-ch, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

≤ 50 W

Standard

IEEE 802.3 af/at

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 8 TB capacity for each disk

USB Interface

2 × USB 2.0

Alarm In/Out

N/A (4/1 is optional)

General

Power Supply

48 VDC, 1.35

Consumption

≤ 10 W (without HDD and PoE off)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

320 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight

≤ 1.18 kg (without HDD, 2.6 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
