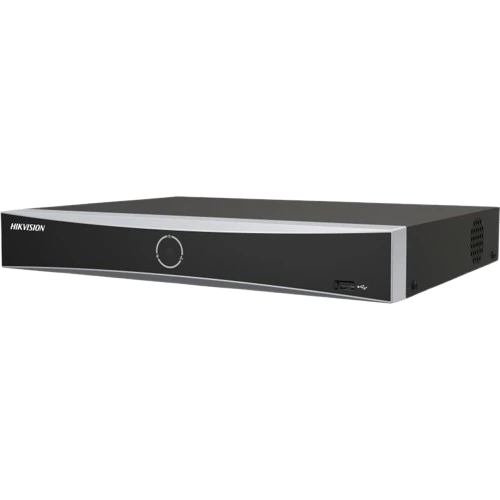

DS-7604NXI-K1
Hikvision DS-7604NXI-K1 4 Channel K Series AcuSense NVR, Up to 1-ch@12 MP or 2-ch@8 MP or 4-ch@4 MP decoding capacity, Up to 40 Mbps incoming bandwidth & 80 Mbps output bandwidth, 1-ch video analysis for human & vehicle recognition to reduce false alarm, 1-ch facial recognition for video stream, or 2-ch facial recognition for face picture, Provide simultaneous HDMI & VGA outputs, 1 SATA interface, 12 VDC, 1.5A.
Type: IP |
Channels: 4-8 Ch |
Technology: AcuSense |
SATA Interfaces (HDD Slots): 1 HDD Slot |
NVR Series: 7600 Series |
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
AcuSense NVR
Hikvision DS-7604NXI-K1 4 Channel K Series AcuSense NVR
Decoding Capacity
Up to 1-ch@12MP or 2-ch@8MP or 4-ch@4MP decoding capacity
Bandwidth
Incoming bandwidth: 40 Mbps
Outgoing bandwidth: 80 Mbps
Interface
1 SATA interface connectable for recording and backup
Perimeter Protection
video analysis for human and vehicle recognition to reduce false alarm
Smart Function
1-ch video analysis for human and vehicle recognition to reduce false alarm
1-ch facial recognition for video stream, or 2-ch facial recognition for face picture
Intelligent Analytics |
|
|
AI by Device |
Facial recognition, perimeter protection, motion detection 2.0 |
|
AI by Camera |
Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
|
Facial Recognition |
|
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
Face Picture Library |
Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB) |
|
Facial Detection and Analytics Performance |
1-ch, 4 MP |
|
Face Picture Comparison (Captured from Camera) |
2-ch |
|
Motion Detection 2.0 |
|
|
By Device |
All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
|
By Camera |
All channels |
|
Perimeter Protection |
|
|
By Device |
1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
|
By Camera |
All channels |
|
Video and Audio |
|
|
IP Video Input |
4-ch |
|
Incoming Bandwidth |
40 Mbps |
|
Outgoing Bandwidth |
80 Mbps |
|
HDMI Output |
1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
VGA Output |
1-ch, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
Video Output Mode |
HDMI1/VGA simultaneous output as default, HDMI1/VGA can be set to independent output |
|
CVBS Output |
N/A |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|
Decoding |
|
|
Decoding Format |
H.265 / H.265+ / H.264+ / H.264 |
|
Recording Resolution |
12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA |
|
Synchronous Playback |
4-ch |
|
Decoding Capability |
AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
|
Stream Type |
Video, Video & Audio |
|
Network |
||
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
Network Interface |
1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
||
SATA |
1 SATA interface |
|
Capacity |
Up to 10 TB capacity for each HDD |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
|
General |
||
Power Supply |
12 VDC, 1.5 A |
|
Consumption |
≤ 10 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") |
|
Weight |
≤ 1 kg (without HDD, 2.2 lb.) |
|
Certification |
||
CE |
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
|
Obtained Certification |
CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA |
Intelligent Analytics |
|
|
AI by Device |
Facial recognition, perimeter protection, motion detection 2.0 |
|
AI by Camera |
Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA |
|
Facial Recognition |
|
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
Face Picture Library |
Up to 16 face picture libraries, with up to 5,000 face pictures in total (each picture ≤ 1MB, total capacity ≤ 73MB) |
|
Facial Detection and Analytics Performance |
1-ch, 4 MP |
|
Face Picture Comparison (Captured from Camera) |
2-ch |
|
Motion Detection 2.0 |
|
|
By Device |
All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm |
|
By Camera |
All channels |
|
Perimeter Protection |
|
|
By Device |
1-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm |
|
By Camera |
All channels |
|
Video and Audio |
|
|
IP Video Input |
4-ch |
|
Incoming Bandwidth |
40 Mbps |
|
Outgoing Bandwidth |
80 Mbps |
|
HDMI Output |
1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
VGA Output |
1-ch, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz |
|
Video Output Mode |
HDMI1/VGA simultaneous output as default, HDMI1/VGA can be set to independent output |
|
CVBS Output |
N/A |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
|
Decoding |
|
|
Decoding Format |
H.265 / H.265+ / H.264+ / H.264 |
|
Recording Resolution |
12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA |
|
Synchronous Playback |
4-ch |
|
Decoding Capability |
AI on: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps) AI off: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
|
Stream Type |
Video, Video & Audio |
|
Network |
||
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
Network Interface |
1 RJ-45 10/100 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
||
SATA |
1 SATA interface |
|
Capacity |
Up to 10 TB capacity for each HDD |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
|
General |
||
Power Supply |
12 VDC, 1.5 A |
|
Consumption |
≤ 10 W (without HDD) |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
320 mm × 240 mm × 48 mm (12.6"× 9.4" × 1.9") |
|
Weight |
≤ 1 kg (without HDD, 2.2 lb.) |
|
Certification |
||
CE |
EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017 |
|
Obtained Certification |
CE, CB, KC, Reach, WEEE, RCM, UKCA, LOA |
