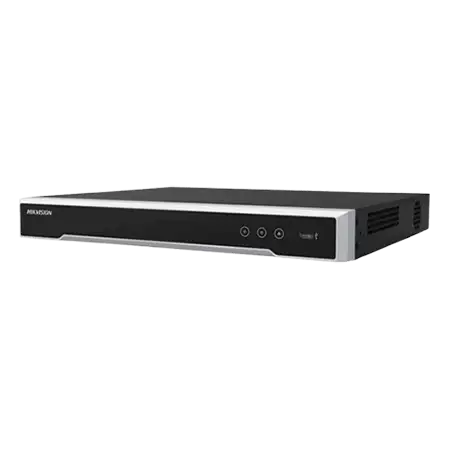

DS-7608NI-I2/8P

Hikvision 7600 Series 8-ch NVR, 8-ch IP Camera Input, 80 Mbps Incoming Bandwidth, 256 Mbps Outgoing Bandwidth, 8 100Mbps PoE Network Ports, 1 HDMI/VGA Output Interface, 1-ch Audio Output, Upto 12MP Recording Resolution, H.265+ Decoding Format, 2 SATA Interfaces, RS-232, RS-485, 2 USB Interfaces, 4/1 Alarm I/O.

https://www.esco.pk/web/image/product.template/2282/image_1920?unique=7a45941
  • Type
  • Channels
  • NVR Series
  • PoE Ports
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Hikvision
Type: IP
Channels: 4-8 Ch
NVR Series: 7600 Series
PoE Ports: 8 Ch
SATA Interfaces (HDD Slots): 2 HDD Slots
​

IP Video Input

Up to 8 IP cameras can be connected

PoE Ports

8 RJ-45 10/100 Mbps PoE Ports

<120 W PoE Power

Decoding Capacity

2-ch @12 MP (20fps), 4-ch @8 MP (25fps), 8-ch @4MP (30fps)

Bandwidth

Incoming bandwidth: 80 Mbps

Outgoing bandwidth: 256 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

2 SATA interface connectable for recording and backup

Alarm In/Out: 4/1

Resolution

Live view, storage, and playback of the connected camera at up to 12 MP resolution

Smart Function

Supports multiple VCA (Video Content Analytics) events

POS triggered recording and alarm

Video/Audio input

IP video input

8-ch

Up to 12 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

Incoming bandwidth

80 Mbps

Outgoing bandwidth

256 Mbps

Remote connection

32

Recording resolution

12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3MP / 1080p / UXGA / 720p  / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

CVBS output (Optional)

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 ×480

HDMI output resolution

4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

VGA output resolution

1920 × 1080p / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

Audio output

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding format

H.265 / H.265+ / H.264 / H.264+ / MPEG4

Live view / Playback resolution

12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3MP / 1080p / UXGA / 720p  / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous playback

8-ch

Capability

2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network management

Network protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA

2 SATA interfaces

Capacity

Up to 8TB capacity for each HDD

External interface

Network interface

1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in / out

4 / 1

POE Interface

Interface

8 RJ-45 10 / 100 Mbps self-adaptive Ethernet interfaces

Power

≤ 120 W

Supported standard

IEEE 802.3 af/at

General

Power supply

100 to 240 VAC, 50 to 60 Hz

Power

≤ 180 W

Consumption (without hard disk)

≤15 W (without enabling PoE)

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10 to 90 %

Dimensions(W × D × H)

385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Weight (without hard disk)

≤ 3 kg (6.6 lb)
