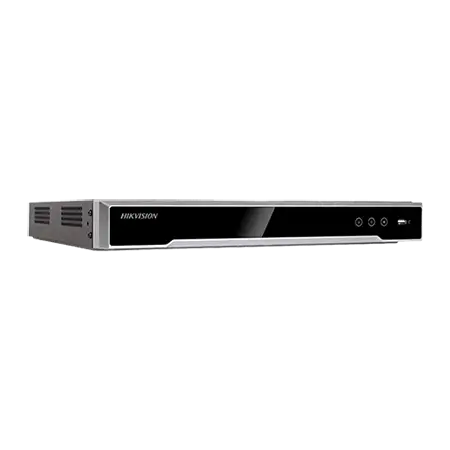

DS-7616NI-I2
DS-7616NI-I2
Hikvision 7600 Series 16 Channel NVR, 16-ch IP Camera Input, 160 Mbps Incoming Bandwidth, 256 Mbps Outgoing Bandwidth, 1 HDMI/VGA Output Interface, 1-ch Audio Output, Upto 12MP Recording Resolution, H.265+ Decoding Format, 2 SATA Interfaces (Up to 10 TB capacity for each disk), RS-232, 2 USB Interfaces, 4/1 Alarm I/.
IP Video Input
Up to 16 IP cameras can be connected
Decoding Capacity
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps)
8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)
Video Output
HDMI/VGA Output
Interface
2 SATA interface connectable for recording and backup
Alarm In/Out: 4/1
Decoding Format
Supports H.265+/H.265/H.264+/H.264 Video formats
Bandwidth
Incoming bandwidth: 160 Mbps
Outgoing bandwidth: 256 Mbps
Resolution
Live view, storage, and playback of the connected camera at up to 12 MP resolution
Smart Function
Supports multiple VCA (Video Content Analytics) events
Supports various special function cameras, including thermal camera / fisheye / people counting / heatmap / ANPR
Video/Audio input |
|
IP video input |
16-ch |
Up to 12 MP resolution |
|
Two-way audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
Network |
|
Incoming bandwidth |
160 Mbps |
Outgoing bandwidth |
256 Mbps |
Remote connection |
128 |
Recording resolution |
12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
CVBS output (Optional) |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 ×480 |
HDMI output resolution |
4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz, 2K (2560 × 1440) / 60Hz, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz |
VGA output resolution |
1920 × 1080p / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz |
Audio output |
1-ch, RCA (Linear, 1 KΩ) |
Decoding |
|
Decoding format |
H.265 / H.265+ / H.264 / H.264+ / MPEG4 |
Live view / Playback resolution |
12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF |
Synchronous playback |
16-ch |
Capability |
2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps) |
Network management |
|
Network protocols |
TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
Hard disk |
|
SATA |
2 SATA interfaces |
Capacity |
Up to 10TB capacity for each disk |
External interface |
|
Network interface |
1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface |
USB interface |
Front panel: 1 × USB 2.0 Rear panel: 1 × USB 3.0 |
Alarm in / out |
4 / 1 |
General |
|
Power supply |
12V DC |
Power |
≤ 40 W |
Consumption (without hard disk) |
≤15 W |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Working humidity |
10 to 90 % |
Dimensions(W × D × H) |
385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
Weight (without hard disk) |
≤ 1 kg (6.6 lb) |
