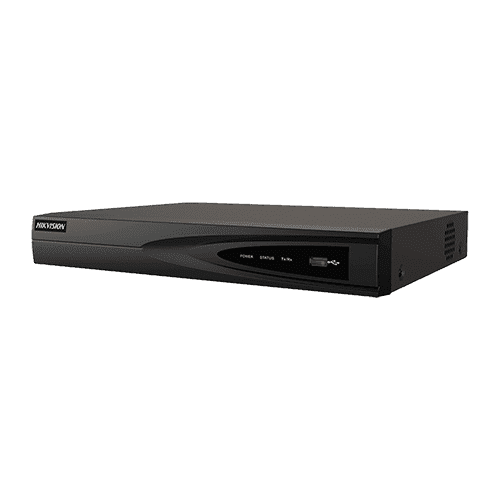

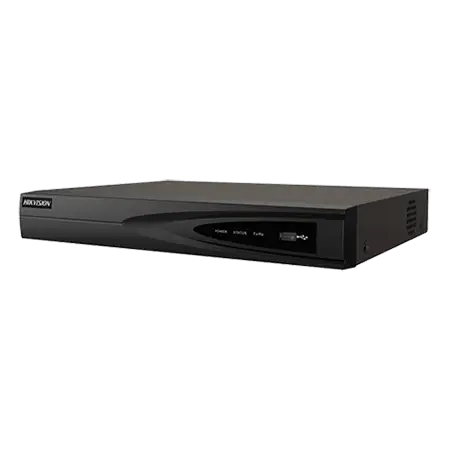

DS-7616NI-Q1

Hikvision 16-ch 7600 Series NVR, Incoming / Outgoing Bandwidth: 160Mbps / 80Mbps, Upto 8MP Recording Resolution with H.265+ Support, 1-ch@8MP and 4-ch@1080p Decoding capability, 1 SATA Interface, HDMI/VGA Output Resolution : 4K / 1080p, 1U chassis, W/O HDD

https://www.esco.pk/web/image/product.template/2578/image_1920?unique=7a45941
  • Type
  • Channels
  • NVR Series
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Hikvision
Type: IP
Channels: 16-32 Ch
NVR Series: 7600 Series
SATA Interfaces (HDD Slots): 1 HDD Slot
​

IP Video Input

Up to 16 IP cameras can be connected

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Decoding Capacity

1-ch @ 8 MP / 4-ch @ 1080p

Bandwidth

Incoming bandwidth: 160 Mbps

Outgoing bandwidth: 80 Mbps

Video Output

VGA/HDMI Output

SATA Interface

1 SATA interface connectable for recording and backup

Resolution

Live view, storage, and playback of the connected camera at up to 8 MP resolution

Smart Function

Centralized management of IP cameras

VCA detection alarm

Video/Audio input

IP video input

16-ch

Up to 8 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

Incoming bandwidth

160 Mbps

Outgoing bandwidth

80 Mbps

Video/Audio output

Recording resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA  / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

HDMI output resolution

1-ch, 4K (3840 × 2160) / 30Hz, 1920 × 1080p / 60Hz, 1600 × 1200 / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

VGA output resolution

1-ch, 1920 × 1080p / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

Audio output

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding format

H.265 / H.265+ / H.264 / H.264+ / MPEG4

Live view  /  Playback resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA  / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous playback

16-ch

Capability

1-ch @ 8 MP / 4-ch @ 1080p

Network management

Network protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA

1 SATA interface

Capacity

Up to 6TB capacity for each disk

External interface

Network interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

USB interface

2 × USB 2.0

General

Power supply

12 VDC

Power

≤ 18W

Consumption (without hard disk)

≤ 10 W

Working temperature

-10 to +55º C (+14 to +131º F)

Working humidity

10 to 90 %

Chassis

1U chassis

Dimensions (W × D × H)

315 × 240 × 48 mm (12.4" × 9.4" × 1.9")

Weight(without hard disk)

≤ 1 kg (2.2 lb)
