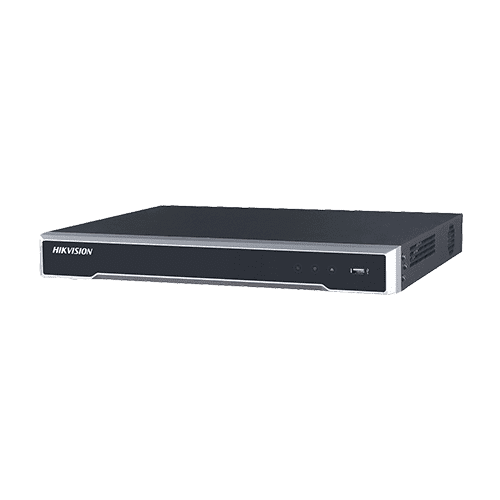

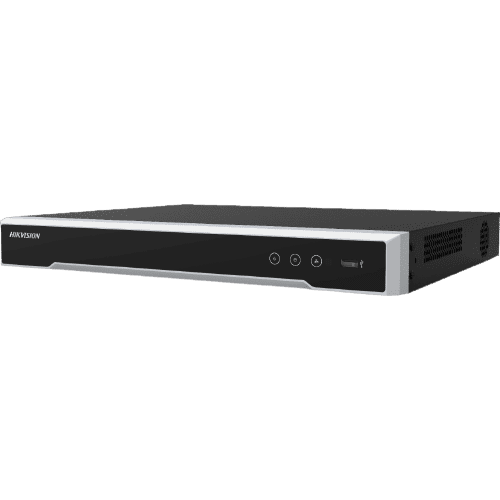

DS-7616NI-Q2/16P

Hikvision DS-7616NI-Q2/16P 16-ch 1U 16 PoE 4K NVR, Up to 8MP Recording Resolution, 160 Mbps/80 Mbps Incoming/Outgoing Bandwidth, 16-Port PoE Interface, IEEE 802.3 af/ at, 4K HDMI and 1080p VGA Output Resolution, Up to H.265+ Video Compression, Two-way Audio, 2 SATA Interfaces, 1 RJ-45 and 2 USB Interfaces, 100 to 240 VAC (≤ 150W).

https://www.esco.pk/web/image/product.template/6936/image_1920?unique=eaf79a1

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: IP
Channels: 16-32 Ch
NVR Series: 7600 Series
PoE Ports: 16 Ch
SATA Interfaces (HDD Slots): 2 HDD Slots

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

IP Video Input

Up to 16 IP cameras can be connected

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

2 SATA interface connectable for recording and backup

Bandwidth

Incoming bandwidth: 160 Mbps

Outgoing bandwidth: 80 Mbps

Video Output

VGA/HDMI Output

Decoding Capacity

1-ch @ 8 MP / 4-ch @ 1080p

Resolution

Live view, storage, and playback of cameras at up to 8 MP

Smart Function

Centralized management of IP cameras

VCA detection alarm

Motion Detection 2.0

Human/Vehicle Analysis

4-ch

Video and Audio

IP Video Input

16-ch

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

80 Mbps



HDMI Output

1-ch, 4K (4096 x 2160) / 30 Hz, 4K (3840 x 2160) / 30 Hz, 2K (2560 x 1440) / 60 Hz, 1920   x

1080 / 60 Hz, 1600 x 1200 / 60 Hz, 1280 x 1024 / 60 Hz, 1280 x 720 / 60 Hz

VGA Output

1-ch, 1920 × 1080 / 60 Hz, 1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz

Video Output Mode

HDMI / VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Decoding

Decoding Format

H.265+, H.265, H.264+, H.264

Recording Resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA  / 720p / VGA / 4CIF / DCIF /  2CIF / CIF / QCIF

Synchronous playback

16-ch



Decoding Capability

1-ch@8 MP (30 fps) / 3-ch@4 MP (30 fps) / 6-ch@1080p (30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw / G.711alaw / G.722 / G.726

Network

Remote Connection

32



Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS,  iSCSI, ISUP,

UPnP™, HTTP, HTTPS

Network Interface

1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface

16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

150 W

Standard

IEEE 802.3 af / at

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 8 TB capacity for each disk

Alarm In/Out

N/A (4/1 is optional)

USB Interface

2 × USB 2.0

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

15 W (without HDD and PoE off)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Chassis

1U chassis

Dimension (W × D × H)

385 × 315 × 52 mm (15.2"× 12.4" × 2.0")

Weight

2.6 kg (without HDD, 5.7 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
