DS-7616NXI-K2/16P

DS-7616NXI-K2/16P

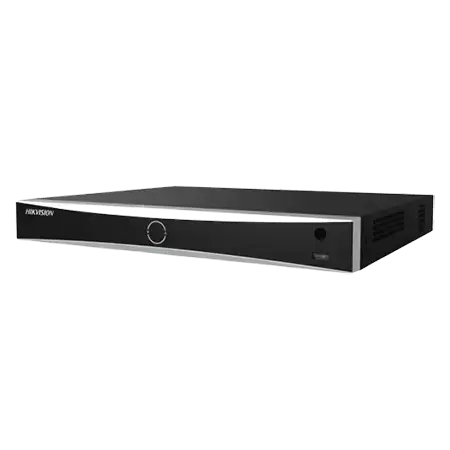

Hikvision DS-7616NXI-K2/16P, 16-ch PoE 1U K Series AcuSense 4K NVR, Up to 16-ch IP camera inputs, plug & play with 16 Power-over-Ethernet (PoE) interfaces, H.265+/H.265/H.264+/H.264 video formats, All channels support Motion Detection 2.0, 2-ch video analysis for human and vehicle recognition to reduce false alarm, 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture, Smart search for the selected area in the video, independent HDMI and VGA outputs, 2 SATA interfaces, 160 Mbps Incoming/outgoing bandwidth, Power ≤ 200W.

IP Video Input

Hikvision DS-7616NXI-K2/16P, 16-ch PoE 1U K Series AcuSense 4K NVR

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Bandwidth

Incoming Bandwidth 160 Mbps, Outgoing Bandwidth 160 Mbps

AcuSense

2-ch video analysis for human and vehicle recognition to reduce false alarm

1-ch facial recognition for video stream, or 4-ch facial recognition for face picture

PoE NVR

Plug & Play with 16 power-over Ethernet (PoE) interfaces

Video Output

Provide independent HDMI and VGA outputs

Interface

 2 SATA interface connectable for recording and backup

Smart Function

All channels support Motion Detection 2.0

Smart search for the selected area in the video

Intelligent Analytics

AI by Device

Facial recognition, perimeter protection, motion detection 2.0

AI by Camera

Facial recognition, perimeter protection, throwing objects from building, motion Detection 2.0, ANPR, VCA

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Picture Library

Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture  4MB, total capacity  1 GB)

Facial Detection and Analytics Performance

1-ch, 8 MP

Face Picture Comparison

4-ch

Motion Detection 2.0

By Device

All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for

human and vehicle recognition to reduce false alarm

By Camera

All channels

Perimeter Protection

By Device

2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle

recognition to reduce false alarm

By Camera

All channels

Video and Audio

IP Video Input

16-ch

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

160 Mbps

HDMI Output

1-ch, 4K (3840 × 2160)/30  Hz,  2K (2560 ×  1440)/60 Hz,  1920  ×  1080/60  Hz,  1600 ×

1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

N/A

Audio Output

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Two-Way Audio

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding Format

H.265 / H.265+ / H.264+ / H.264

Recording Resolution

12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA

Synchronous playback

16-ch

Decoding Capability

AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw / G.711alaw / G.722 / G.726 / AAC

Network

Remote Connection

128

API

ONVIF (profile S/G); SDK; ISAPI

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface

16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

200 W

Standard

IEEE 802.3af/at

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each HDD

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out

4/1

General

Power Supply

12 VDC, 3.3 A

Consumption

 15 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

385 mm × 315 mm × 52 mm (15.2"× 12.4" × 2.0")

Weight

 1 kg (without HDD, 2.2 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017

Obtained Certification

CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS

Note:

Facial recognition, motion detection 2.0 or perimeter protection cannot be enabled at the same time.
