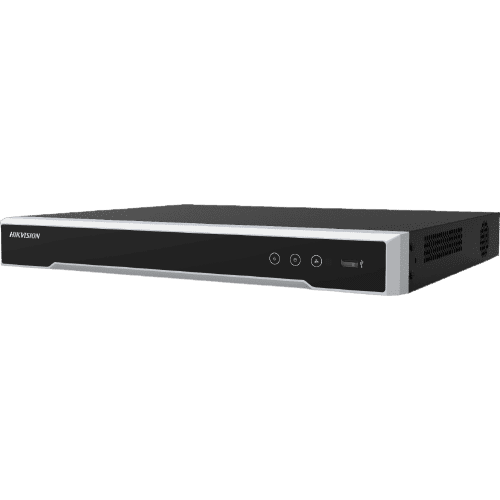

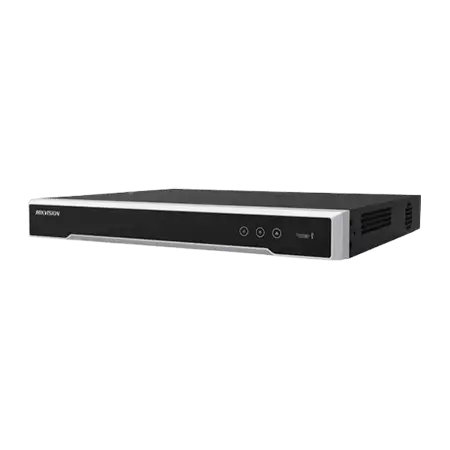

DS-7632NI-K2/16P

Video and Audio

IP Video Input

32-ch

Incoming Bandwidth

256 Mbps

Outgoing Bandwidth

160 Mbps

HDMI Output

4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output

1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output Mode

HDMI/VGA independent output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format

H.265 / H.265+ / H.264 / H.264+

Synchronous Playback

16-ch

Decoding Capability

1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw / G.711alaw / G.722 / G.726

Network

Remote Connection

128-ch

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

Interface

16, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power

≤ 200 W

Standard

IEEE 802.3 af/at

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each HDD

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out

4/1

General

Power Supply

100 to 240 VAC, 50 to 60Hz

Consumption

≤ 15 W (without HDD and PoE off)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10 to 90 %

Dimension (W × D × H)

385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Weight

≤ 3 kg (without HDD, 6.6 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
