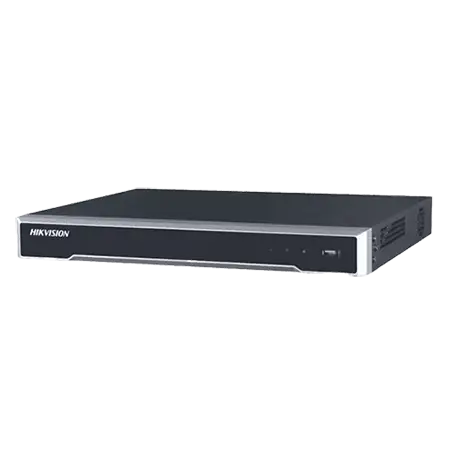

DS-7632NI-K2

Hikvision DS-7600 Series 32-ch NVR, 32-ch IP Camera Input, 256 Mbps Incoming Bandwidth, 160 Mbps Outgoing Bandwidth, 1 HDMI/VGA Output Interface, 1-ch Audio Output, Upto 8MP Recording Resolution, H.265+ Decoding Format, 2 SATA Interfaces Upto 10TB Capacity Each HDD, 4/1 Alarm I/O, 2 USB Interfaces

https://www.esco.pk/web/image/product.template/2288/image_1920?unique=7a45941
  • Type
  • Channels
  • NVR Series
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Hikvision
Type: IP
Channels: 16-32 Ch
NVR Series: 7600 Series
SATA Interfaces (HDD Slots): 2 HDD Slots
​

IP Video Input

Up to 32 IP cameras can be connected

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Bandwidth

Incoming bandwidth: 256 Mbps, Outgoing bandwidth: 160 Mbps

Interface

2 SATA interface connectable for recording and backup

Alarm In/Out: 4/1

Video Output

VGA/HDMI Output

Decoding Capacity

2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Resolution

Live view, storage, and playback of the connected camera at up to 8 MP resolution

Smart Function

Centralized management of IP cameras

VCA detection alarm

Video/Audio input

IP video input

32-ch

Up to 8 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

Incoming bandwidth

256 Mbps

Outgoing bandwidth

160 Mbps

Video / Audio output

Recording resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA  / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

HDMI output resolution

4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA output resolution

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Audio output

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding format

H.265 / H.265+ / H.264 / H.264+ / MPEG4

Live view  /  Playback resolution

8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous playback

8-ch

Capability

2-ch @ 8 MP (25fps) / 4-ch @ 4MP (30fps) / 8-ch @ 1080p (30fps)

Network management

Network protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA

2 SATA interface

Capacity

Up to 6TB capacity for each disk

External interface

Network interface

1, RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface

USB interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

Alarm in/out

4/1

General

Power supply

12 VDC

Power

≤ 40W

Consumption (without hard disk)

≤ 15 W

Working temperature

-10 to +55º C (+14 to +131º F)

Working humidity

10 to 90 %

Dimensions (W × D × H)

385 × 315× 52 mm (15.2" × 12.4" × 2.0")

Weight(without hard disk)

≤ 1 kg (2.2 lb)
