DS-7632NI-M2

DS-7632NI-M2

Hikvision DS-7632NI-M2 32 Channel M Series 8K NVR, Up to 32-ch@1080p decoding capacity, Incoming Bandwidth: 320 Mbps, Outgoing Bandwidth: 400 Mbps, HDMI/VGA independent output, 2 SATA interfaces, 2 RJ-45, 12 VDC.

IP Video Input

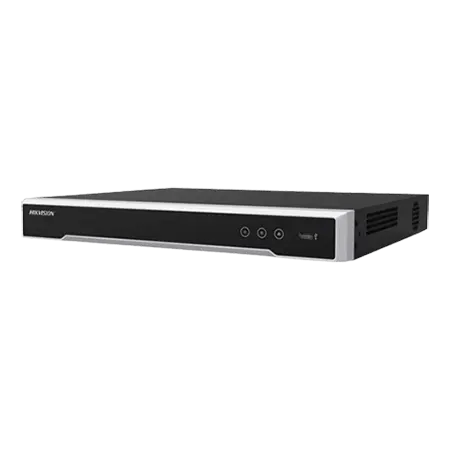

Hikvision DS-7632NI-M2 32 Channel M Series 8K NVR

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Bandwidth

Incoming bandwidth: 320 Mbps, Outgoing bandwidth: 400 Mbps

Video Output

HDMI/VGA independent output

Decoding Capacity

2-ch@32MP (30 fps) + 2-ch@8MP (30fps) / 10-ch@8 MP (30 fps) / 20-ch@4 MP (30 fps)

Resolution

Live view, storage & playback up to 32 MP resolution

Video and Audio

IP Video Input

32-ch

Up to 32 MP resolution

*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Incoming Bandwidth

320 Mbps

Outgoing Bandwidth

400 Mbps

HDMI Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×

1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding Format

H.265+ / H.265 / H.264+ / H.264

Recording Resolution

32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA/720p/VGA

*: The NVR supports up to 8-ch 32 MP/24 MP IP video inputs.

Synchronous Playback

16-ch

Decoding Capability

2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/32-ch@1080p (30 fps)

Dual-Stream Recording

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2

Network

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 16 TB capacity for each HDD

Alarm In/Out

4/1

USB Interface

Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power Supply

12 VDC, 3.33 A

Consumption

15 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

385 × 315 × 52 mm (15.2" × 12.4" × 2.0")

Weight

3 kg (without HDD, 2.2 lb.)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014



CE

EN 55032: 2015+A1: 2020, ENIEC61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020
