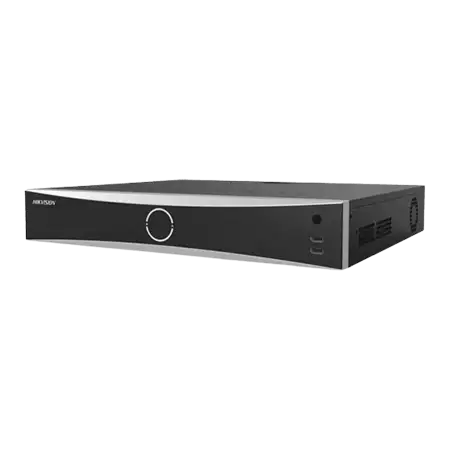

DS-7716NXI-I4/S

Intelligent Analytics

AI by NVR

Facial recognition, perimeter protection, motion detection 2.0

AI by Camera

Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA

Engine

1, engine mode is adjustable

Facial Recognition

Facial Detection and Analytics

Face picture comparison, human face capture, face picture search

Face Attributes

Wearing glasses, wearing a mask, facial expression, body temperature

Face Picture Library

Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)

FacePicture Comparison (Captured from Camera)

8-ch

Facial   Detection and Analytics Performance

4-ch human face capture (HD network camera, up to 2 MP, H.264/H.265)

Motion Detection 2.0

By NVR

All channels for Hikvision cameras

By Camera

All channels

Perimeter Protection

By NVR

4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm;

Up to 12 rules in total

By Camera

All channels

ANPR

By Camera

All channels

Vehicle Attributes

Plate number, license plate color, license plate type

Plate Attributes

Vehicle brand, vehicle color, vehicle type

Video and Audio

IP Video Input

16-ch

Incoming Bandwidth

160 Mbps

Outgoing Bandwidth

256 Mbps

HDMI 1 Output

4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

HDMI 2 Output

4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA Output

1920 × 1080/60 Hz, 1600 × 1200/60 HZ, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

Video Output Mode

HDMI1/VGA simultaneous output, HDMI2/VGA independent output

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Decoding

Decoding Format

H.265+ / H.265 / H.264+ / H.264

Recording Resolution

32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA

32MP / 24MP / 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA

*: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

Synchronous Playback

16-ch

Decoding Capability

Enable AI by NVR: 20-ch@1080p (30 fps)

Disable AI by NVR: 32-ch@1080p (30 fps)

Dual-Stream Recording

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 / PCM

Network

Network Interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Remote Connection

128

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Auxiliary Interface

Serial Interface

2 RS-485 (half-duplex), 1 RS-232

SATA

4 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

eSATA

1 eSATA interface

Alarm In/Out

16/9

USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

Ctrl 12V

Controllable 12 VDC, 0.5 A power output for external alarm device; The power will be turned on when the alarm output is triggered.

*: The Ctrl 12V power is controlled by alarm output 9.

DC 12V

12 VDC, 1 A power output

General

Power Supply

100 to 240 VAC, 50 to 60 Hz

Consumption

≤ 30 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Chassis

19-inch rack-mounted 1.5U chassis

Dimension (W × D × H)

440 × 391 × 75 mm (17.3"× 15.4" × 3.0")

Weight

≤ 3.6 kg (without HDD, 7.9 lb.)
