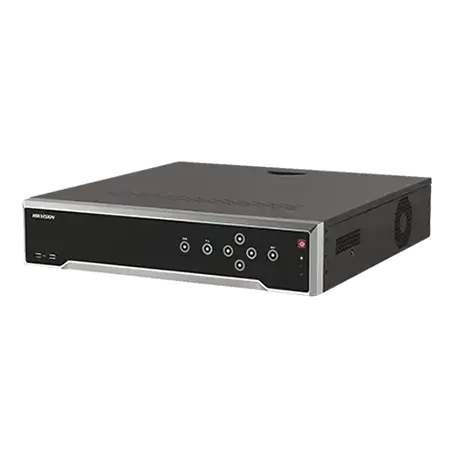

DS-7732NI-I4/16P

Hikvision 7700 Series NVR, 32 Ch. NVR, Up to 12 Megapixels resolution recording, 256Mbps Incoming Bandwidth, 256Mbps Outgoing Bandwidth, 4 SATA Interfaces, 1 HDMI ouputs,1 VGA port, 1 CVBS output,1 eSATA,16 independent PoE network interfaces, alarm I/O: 16/4, 1.5U case,19"

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: IP

Channels: 16-32 Ch

NVR Series: 7700 Series

PoE Ports: 16 Ch

SATA Interfaces (HDD Slots): 1 HDD Slot

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

IP Video Input

Up to 32 IP cameras can be connected

Resolution

Live view, storage, and playback of the connected camera at up to 12 MP resolution

PoE Ports

Plug & Play with 16 Power-over-Ethernet (PoE) interfaces

≤200W PoE Power, IEEE 802.3 af/at

Decoding Capacity

2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps)

8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Bandwidth

Incoming bandwidth: 256 Mbps, Outgoing bandwidth: 256 Mbps

Interface

4 SATA interface connectable for recording and backup

Alarm In/Out: 16/4, 1 RJ-45 10/100/1000 Mbps Ethernet interface

Smart Function

Supports multiple VCA (Video Content Analytics) events

Supports various special function cameras, including thermal camera / fisheye / people counting / heatmap / ANPR, POS triggered recording and alarm

Video / Audio input

IP video input

32-ch

Up to 12 MP resolution

Two-way audio

1-ch, RCA (2.0 Vp-p, 1 k Ω)

Network

Incoming bandwidth

256 Mbps

Outgoing bandwidth

256 Mbps

Remote connection

128

Video / Audio output

Recording resolution

12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

CVBS output (Optional)

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI output resolution

4K (3840 × 2160) / 60Hz, 4K (3840 × 2160) / 30Hz,1920 × 1080p / 60Hz,1600 × 1200 / 60Hz,1280 × 1024 / 60Hz, 1280 × 720 / 60Hz, 1024 × 768 / 60Hz

VGA output resolution

1920 × 1080p / 60Hz, 1280 × 1024 / 60Hz, 1280 × 720 / 60Hz,1024 × 768 / 60Hz

Audio output

1-ch, RCA (Linear, 1 KΩ)

Decoding

Decoding format

H.265 / H.265+ / H.264 / H.264+ / MPEG4

Live view / Playback resolution

12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF

Synchronous playback

16-ch

Capability

2-ch @ 12 MP (20fps) / 4-ch @ 8 MP (25fps) / 8-ch @ 4MP (30fps) / 16-ch @ 1080p (30fps)

Network management

Network protocols

TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS

Hard disk

SATA

4 SATA interfaces for 4HDDs

Capacity

Up to 6TB capacity for each HDD

External interface

Network interface

2 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interfaces

Serial interface

1 RS-485 (half-duplex), 1 RS-232

USB interface

Front panel: 2 × USB 2.0

Rear panel: 1 × USB 3.0

Alarm in / out

16 / 4

POE Interface

Interface

16 RJ-45 10/100 Mbps self-adaptive Ethernet interfaces

Power

≤200W

Supported standard

IEEE 802.3 af/at

General

Power supply

100 to 240 VAC

Power

≤300 W

Consumption (without hard disk)

≤20 W (without enabling PoE)

Working temperature

-10 to +55º C (+14 to +131º F)

Working humidity

10 to 90 %

Chassis

19-inch rack-mounted 1.5U chassis

Dimensions (W × D × H)

445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8")

Weight (without hard disk)

≤ 5 kg (11 lb)
