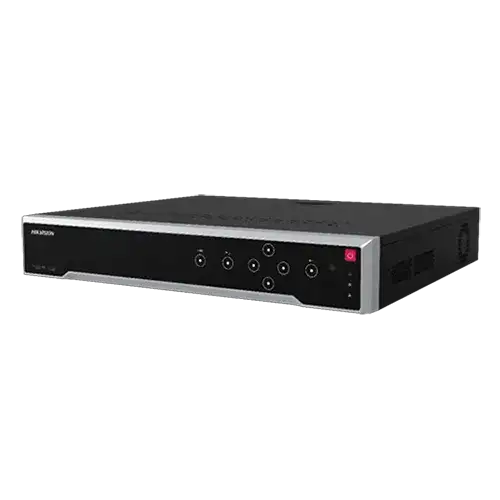

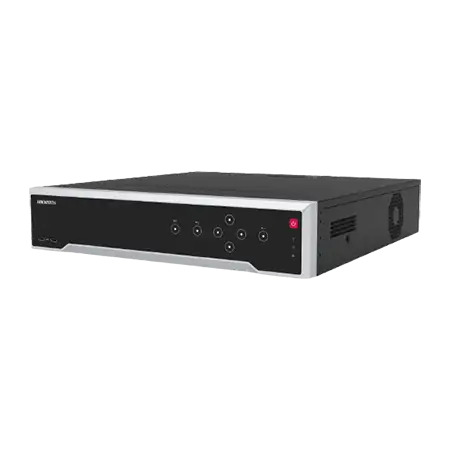

DS-8632NI-K8

Hikvision DS-8632NI-K8 32 Channel NVR, 256 Mbps Incoming Bandwidth, 160 Mbps Outgoing Bandwidth, 2 HDMI (different source) and 2 VGA (different source) interfaces, Supports decoding H.265+/H.265/H.264+/H.264/MPEG4 video formats, Decoding Capability: 2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps), 8 SATA interfaces, 1 eSATA interface, Supports some specialist cameras, including people counting camera/ANPR camera, 100 to 240 VAC.

https://www.esco.pk/web/image/product.template/2583/image_1920?unique=a28e499
  • Type
  • Channels
  • NVR Series
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare
Contact Us
Hikvision
Type: IP
Channels: 16-32 Ch
NVR Series: 8600 Series
SATA Interfaces (HDD Slots): 8 HDD Slots

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

​

8600 Series NVR

Hikvision DS-8632NI-K8 32 Channel NVR

Decoding Capacity

2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Bandwidth

Incoming bandwidth: 256 Mbps

Outgoing bandwidth: 160 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

8 SATA interface connectable for recording and backup, Alarm In/Out: 16/4

Smart Function

Supports some specialist cameras, including people counting camera/ANPR camera, Support multiple VCA (Video Content Analytics) events

Video and Audio

IP video input

32-ch

Up to 8 MP resolution

8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p

Incoming bandwidth

256 Mbps

Outgoing bandwidth

160 Mbps

HDMI 1 output

4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

HDMI 2 output

1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA 1 output

1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

VGA 2 output

1920 × 1080p/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz

Video output mode

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

Audio output

2-ch, RCA (Linear, 1 KΩ)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding format

H.265+ / H.265 / H.264+ / H.264

Recording resolution

8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA

Synchronous playback

16-ch

Capability

2-ch@8 MP (25 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Stream type

Video, Video & Audio

Network

Remote connections

128

Network protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

Serial interface

RS-232, RS-485, keyboard

SATA

8 SATA interfaces

eSATA

1 eSATA interface

Capacity

Up to 8 TB capacity for each disk

Alarm in/out

16/4

USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power supply

100 to 240 VAC, 50 to 60 Hz

Consumption (without HDD)

≤ 30 W

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Dimension (W × D × H)

445 × 470 × 94 mm (17.5"× 18.5" × 3.7")

Weight (without HDD)

≤ 8 kg (17.6 lb)

Certification

Obtained Certification

CE, FCC, CB, IC, RCM, KCC, ICE-003

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
