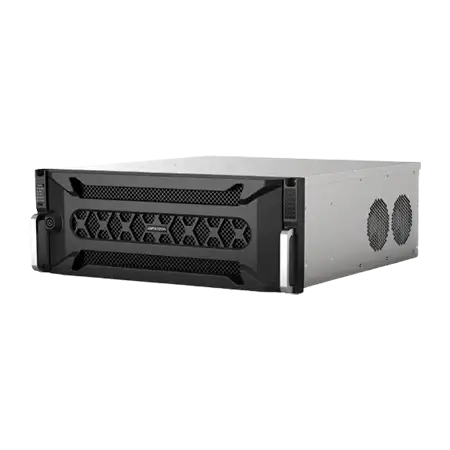

DS-96128NI-I24

Hikvision DS-96128NI-I24 128 Channel 4K Super NVR, Up to 128 channel IP cameras can be connected, Incoming / Outgoing Bandwidth: 576 Mbps / 512 Mbps, Incoming / Outgoing Bandwidth (RAID Mode): 576 Mbps / 512 Mbps, 2 HDMI (different source) and 1 VGA interfaces, Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare, 24 SATA interfaces supporting hot-plug, 1 × eSATA interface, 100 to 240 VAC, 50 to 60Hz.

Type
- IP
Channels
- 64 Ch and Above
NVR Series
- 9600 Series
SATA Interfaces (HDD Slots)
- 16+ HDD Slots

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Please get in touch for pricing & availability.

Get notified when back in stock

Type: IP

Channels: 64 Ch and Above

NVR Series: 9600 Series

SATA Interfaces (HDD Slots): 16+ HDD Slots

Description
Reviews

Super NVR

Hikvision DS-96128NI-I24 128 Channel 4K Super NVR with 24 HDD Slot

Decoding Capacity

1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP(30 fps)/10-ch@4 MP(30 fps)/20-ch@1080p(30fps)/40-ch@720p(30 fps)

Raid

Supports HDD hot swap with RAID0, RAID1, RAID5, RAID 6, and RAID10 storage

Bandwidth

Incoming/Outgoing bandwidth: 576 Mbps/512 Mbps

Incoming/Outgoing bandwidth (RAID mode): 576 Mbps/512 Mbps

Decoding Format

Supports H.265, H.265+, H.264, H.264+ Video formats

Interface

2 HDMI (different source) and 1 VGA interfaces

Alarm In/Out: 16/8, 1 × eSATA interface, 24 SATA interfaces

Video Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p

Smart Function

VCA detection alarm is supported.

VCA search for facial detection, behavior analysis, people counting and heat map

Video & Audio Input

IP video input

128-ch

Incoming/outgoing bandwidth

576 Mbps / 512 Mbps

Incoming/outgoing bandwidth (RAID mode)

576 Mbps / 512 Mbps

TLS outgoing bandwidth

128 Mbps, or 64 Mbps (when RAID is enabled)

Protocol

HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO

Video & Audio Output

HDMI output

Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

VGA output

1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

Audio output

1-ch. RCA (2.0 Vp-p, 1 KΩ)

Video & Audio Decoding

Decoding format

H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision IP camera only)

Video resolution

32MP / 24MP / 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p
*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra HD resolution mode is enabled.

Synchronous playback

Up to 16 channels

Capability

1-ch@ 32MP (8160 × 3616, 30 fps) / 5-ch@8MP (30 fps) / 10-ch@ 4MP(30 fps) / 20-ch@1080p(30 fps) / 40-ch@720p(30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

HDD

Interface

24 SATA interfaces supporting hot-plug

Capacity

Up to 10 TB for each HDD

Storage extension

1 × eSATA interface

RAID

RAID Type

RAID0, RAID1, RAID5, RAID 6, and RAID10

Network Management

Protocol

IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS

Network interface

4, RJ45 10M/100M/1000M self-adaptive Ethernet interface

External Interface

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Serial port

RS-232; RS-485; Keyboard

USB interface

Front Panel: 1 × USB 2.0; Rear Panel: 2 × USB 3.0

Alarm input/output

16/8

General

Power supply

100 to 240 VAC, 50 to 60Hz, 5 A

Fan

Redundant dual ball bearing fan; Speed adjustable

Consumption (without HDD)

≤ 140W

Working temperature

0 °C to + 50 °C (32 °F to 122 °F)

Working humidity

10% to 90%
