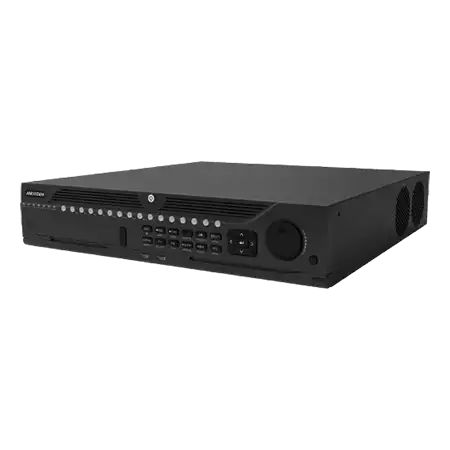

DS-9616NI-I8

Hikvision DS-9616NI-I8 16 Channel 4K NVR, Up to 16 channel IP cameras can be connected, Incoming / Outgoing bandwidth: 256 Mbps / 256 Mbps, Incoming / Outgoing bandwidth (RAID mode): 200 Mbps / 200 Mbps, 2 HDMI (different source) and 2 VGA (different source) interfaces, 8 SATA interfaces supporting hot-plug, 1 eSATA interface, RAID0, RAID1, RAID5, RAID6, and RAID10, 100 to 240 VAC.

https://www.esco.pk/web/image/product.template/3563/image_1920?unique=7a45941
  • Type
  • Channels
  • NVR Series
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Type: IP
Channels: 16-32 Ch
NVR Series: 9600 Series
SATA Interfaces (HDD Slots): 8 HDD Slots

9600 Series NVR

Hikvision DS-9616NI-I8 16 Channel 4K NVR

Decoding Capacity

1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)

Raid

Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage

Bandwidth

Incoming / Outgoing bandwidth: 256 Mbps / 256 Mbps
Incoming / Outgoing bandwidth (RAID mode): 200 Mbps / 200 Mbps

Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

2 HDMI (different source) and 2 VGA (different source) interfaces

Alarm In/Out: 16/4, 1 × eSATA interface,  8 SATA interfaces

Recording Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p

Smart Function

Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

Video and Audio

IP video input

16-ch

Up to 32 MP resolution

*: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

Incoming bandwidth

256 Mbps

Outgoing bandwidth

256 Mbps

Incoming bandwidth (RAID mode)

200 Mbps

Outgoing bandwidth (RAID mode)

200 Mbps

HDMI 1 output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 1 output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 2 output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video output mode

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

CVBS output (optional)

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio output

2-ch, RCA (Linear, 1 KΩ)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding format

H.265+ / H.265 / H.264+ / H.264 / MPEG4

Recording resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP / 1080p / UXGA / 720p

*: After ultra HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

Synchronous playback

16-ch

Capability

1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)

Dual stream recording

Support

Stream type

Video, Video & Audio

Network

Remote connection

128

Network protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Network mode

Net Fault-Tolerance, Multi-address

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary interface

Serial port

1 RS-485 (full-duplex), 1 RS-232, 1 keyboard

SATA

8 SATA interfaces supporting hot-plug

eSATA

1 eSATA interface

Capacity

Up to 10 TB capacity for each disk

Alarm in/out

16/4

USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power supply

100 to 240 VAC, 50 to 60 Hz

Consumption (without HDD)

30 W

Fan

Speed self-adjustable

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Chassis

3U chassis

Dimension (W × D × H)

445 × 465 × 92 mm (17.5"× 18.3" × 3.6")

Weight (without HDD)

10 kg (22 lb)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
