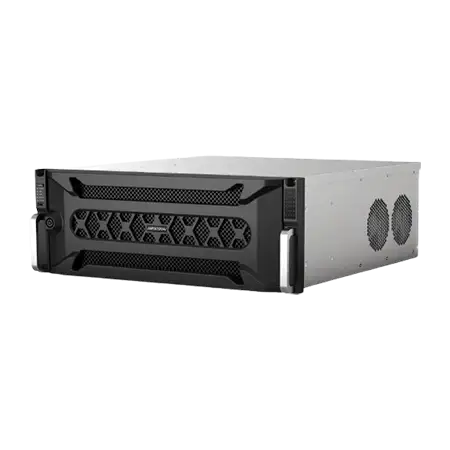

DS-96256NI-I24

Hikvision DS-96256NI-I24 256 Channel 9600 Series 4K Super NVR, Up to 256 channel IP cameras can be connected, Incoming / Outgoing Bandwidth: 768 Mbps / 768 Mbps, Incoming / Outgoing Bandwidth (RAID Mode): 768 Mbps / 768 Mbps, Two independent HDMI outputs and 1 VGA interfaces, 24 SATA interfaces supporting hot-plug, 1 × eSATA interface, Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare, 4 RJ45 10M/100M/1000M Ethernet interface, Alarm input/output: 16/8, 100 to 240 VAC, 50 to 60Hz.

https://www.esco.pk/web/image/product.template/6753/image_1920?unique=059305a

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to wishlist Compare

Please get in touch for pricing & availability.

Type: IP
Channels: 64 Ch and Above
NVR Series: 9600 Series
SATA Interfaces (HDD Slots): 16+ HDD Slots

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Super NVR

Hikvision DS-96256NI-I24 256 Channel 9600 Series 4K Super NVR

Decoding Capacity

1-ch@32MP (8160 × 3616, 30 fps) / 5-ch@8MP (30 fps)/10-ch@4MP (30 fps) / 20-ch@1080p (30 fps) / 40-ch@720p (30 fps)

Raid

Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage

Bandwidth

Incoming / Outgoing Bandwidth: 768 Mbps / 768 Mbps
Incoming / Outgoing Bandwidth (RAID Mode): 768 Mbps / 768 Mbps

Decoding Format

Supports H.265, H.265+, H.264, H.264+,MPEG4, MJPEG

Interface

2 HDMI (different source) and 1 VGA interfaces

Alarm In/Out: 16/8, 1 × eSATA interface,  24 SATA interfaces

Recording Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p

Smart Function

Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

Video & Audio Input

IP video input

256-ch

Incoming/outgoing bandwidth

768 Mbps/768 Mbps

Incoming/outgoing bandwidth (RAID mode)

768 Mbps/768 Mbps

TLS outgoing bandwidth

128 Mbps, or 64 Mbps (when RAID is enabled)

Protocol

HIKVISION, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO

Video & Audio Output

HDMI output

Two independent HDMI outputs of 4K resolution.

Resolution: 4K (4096 × 2160), 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

VGA output

1-ch. Resolution: 1080p (1920 × 1080)/60Hz, UXGA (1600 × 1200)/60Hz, SXGA (1280 × 1024)/60Hz, 720p (1280 × 720)/60Hz, XGA (1024 × 768)/60Hz

Audio output

1-ch. RCA (2.0 Vp-p, 1 KΩ)

Video & Audio Decoding

Decoding format

H.265, H.265+, H.264, H.264+, MPEG4, MJPEG (for Hikvision IP camera only)

Video resolution

32MP / 24MP / 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p

*: 32 MP and 24 MP is only available for channel 1 to 4 when ultra-HD resolution mode is enabled.

Synchronous playback

Up to 16 channels

Capability

1-ch@32 MP (8160 × 3616, 30 fps)/5-ch@8 MP (30 fps)/10-ch@4 MP (30 fps)/20-ch@1080p(30 fps)/40-ch@720p(30 fps)

*: The length or width of camera resolution (each track) cannot exceed 4096 pixels.

HDD

Interface

24 SATA interfaces supporting hot-plug

Capacity

Up to 10 TB for each HDD

Storage extension

1 × eSATA interface

RAID

RAID Type

RAID0, RAID1, RAID5, RAID 6, and RAID10

Network Management

Protocol

IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS

Network interface

4, RJ45 10M / 100M / 1000M self-adaptive Ethernet interface

External Interface

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

Serial port

RS-232; RS-485; Keyboard

USB interface

Front Panel: 1 × USB 2.0; Rear Panel: 2 × USB 3.0

Alarm input/output

16/8

General

Power supply

100 to 240 VAC, 50 to 60Hz, 5 A

Fan

Redundant dual ball bearing fan; Speed adjustable

Consumption (without HDD)

140W

Working temperature

0 °C to + 50 °C (32 °F to 122 °F)

Working humidity

10% to 90%
