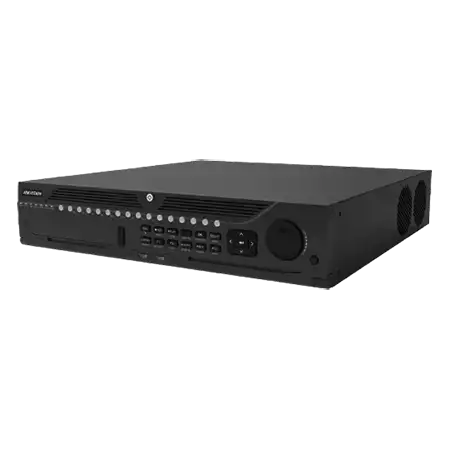

DS-9632NI-I8

Hikvision DS-9632NI-I8 32 Channel NVR, Up to 320 Mbps (or 200 Mbps when RAID is enabled) h, 256 Mbps Outgoing Bandwidth, 2 HDMI (different source) and 2 VGA (different source) interfaces, H.265+ Decoding Format, 8 SATA Interfaces, 1 eSATA Interface, 3 USB Interfaces, RS-232, RS-485, 2 RJ-45 10/100/1000Mbps self-adaptive Ethernet interfaces, 16/4 Alarm I/O, Up to 1-ch@32 MP/2-ch@12 MP/16-ch@1080p decoding capacity, Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare, 100 to 240 VAC, 50 to 60 Hz.

https://www.esco.pk/web/image/product.template/2296/image_1920?unique=7a45941
  • Type
  • Channels
  • NVR Series
  • SATA Interfaces (HDD Slots)

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Invalid email
We'll notify you once the product is back in stock.
Added to your wishlist
Contact Us
Hikvision
Type: IP
Channels: 16-32 Ch
NVR Series: 9600 Series
SATA Interfaces (HDD Slots): 4 HDD Slots
​

9600 Series NVR

Hikvision DS-9632NI-I8 32 Channel NVR

Decoding Capacity

1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)

Raid

Supports RAID 0, 1, 5, 6, 10 and N+1 hot spare for even more reliable data storage

Bandwidth

 Up to 320 Mbps (or 200 Mbps when RAID is enabled) high incoming bandwidth ensures IP cameras can be connected



Decoding Format

Supports H.265+/H.265/H.264+/H.264 Video formats

Interface

2 HDMI (different source) and 2 VGA (different source) interfaces

Alarm In/Out: 16/4, 1 × eSATA interface,  8 SATA interfaces

Recording Resolution

32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p

Smart Function

Supports some specialist cameras, including people counting camera/ANPR (automatic number plate recognition) camera/fisheye camera

Video and Audio

IP video input

32-ch

Up to 32 MP resolution

*: After ultra-HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

Incoming bandwidth

320 Mbps

Outgoing bandwidth

256 Mbps

Incoming bandwidth (RAID mode)

200 Mbps

Outgoing bandwidth (RAID mode)

200 Mbps

HDMI 1 output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

HDMI 2 output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 1 output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA 2 output

1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video output mode

HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output;

HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output

CVBS output (optional)

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480

Audio output

2-ch, RCA (Linear, 1 KΩ)

Two-way audio input

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)

Decoding

Decoding format

H.265+ / H.265 / H.264+ / H.264 / MPEG4

Recording resolution

32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA
*: After ultra-HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs.

Synchronous playback

16-ch

Capability

1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps)

Dual stream recording

Support

Stream type

Video, Video & Audio

Network

Remote connection

128

Network protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network interface

2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Network mode

Net Fault-Tolerance, Multi-address

RAID

RAID Type

RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD)

Auxiliary interface

Serial port

1 RS-485 (full-duplex), 1 RS-232, 1 keyboard

SATA

8 SATA interfaces supporting hot-plug

eSATA

1 eSATA interface

Capacity

Up to 10 TB capacity for each disk

Alarm in/out

16/4

USB interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0

General

Power supply

100 to 240 VAC, 50 to 60 Hz

Consumption (without HDD)

≤ 30 W

Fan

Speed self-adjustable

Working temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working humidity

10% to 90%

Chassis

3U chassis

Dimension (W × D × H)

445 × 465 × 92 mm (17.5"× 18.3" × 3.6")

Weight (without HDD)

≤ 10 kg (22 lb)

Certification

FCC

Part 15 Subpart B, ANSI C63.4-2014

CE

EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
