DS-9664NI-I16
DS-9664NI-I16
Hikvision DS-9664NI-I16 64 Channel NVR, Up to 64 channel IP cameras can be connected, Up to 320 Mbps (or 200 Mbps when RAID is enabled) high Incoming Bandwidth, 256 Mbps Outgoing Bandwidth, 2 HDMI (different source) and 2 VGA (different source) interfaces, H.265+ Decoding Format, 16 SATA Interfaces (Up to 10TB Capacity Each HDD), 1 eSATA Interface, RAID0, RAID1, RAID5, RAID6, and RAID10, 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface, 1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP (30fps)/16-ch@1080p (30fps), USB interface: 2 × USB 2.0 & 1 × USB 3.0, 100 to 240 VAC, 50 to 60 Hz.
64 Channel NVR

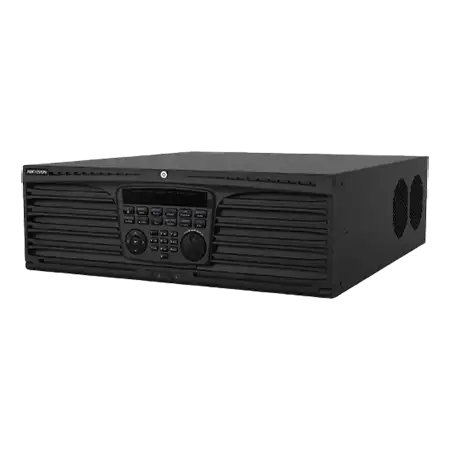

Hikvision DS-9664NI-I16 64 Channel NVR
Decoding Capacity
1-ch@32 MP (30 fps)/2-ch@12 MP (20fps)/4-ch@8 MP (25fps)/8-ch@4 MP(30fps)/16-ch@1080p (30fps)
Raid
Supports RAID0, RAID1, RAID5, RAID6, and RAID10
Bandwidth
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 256 Mbps
Decoding Format
Supports H.265+/H.265/H.264+/H.264 Video formats
Interface
2 HDMI (different source) and 2 VGA interfaces
Alarm In/Out: 16/8, 1 × eSATA interface, 16 SATA interfaces
Recording Resolution
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p
Smart Function
Supports multiple VCA (Video Content Analytics) events
POS triggered recording and alarm
Video and Audio |
|
IP video input |
64-ch |
Up to 12 MP resolution *: After ultra-HD resolution mode is enabled, the NVR supports up to 4-ch 32 MP/24 MP IP video inputs. |
|
Incoming bandwidth |
320 Mbps |
Outgoing bandwidth |
256 Mbps |
Incoming bandwidth (RAID mode) |
200 Mbps |
Outgoing bandwidth (RAID mode) |
200 Mbps |
HDMI 1 output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
HDMI 2 output |
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA 1 output |
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
VGA 2 output |
1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
Video Output Mode |
HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output |
CVBS output (optional) |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
Audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
Audio output |
2-ch, RCA (Linear, 1 KΩ) |
Two-way audio input |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
Decoding |
|
Decoding format |
H.265+ / H.265 / H.264+ / H.264 / MPEG4 |
Recording resolution |
32MP
/ 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA |
Synchronous playback |
16-ch |
Capability |
1-ch@32 MP (30 fps) / 2-ch@12 MP (20fps) / 4-ch@8 MP (25fps) / 8-ch@4 MP (30fps) / 16-ch@1080p (30fps) |
Dual stream recording |
Support |
Stream type |
Video, Video & Audio |
Network |
|
Remote connections |
128 |
Network protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
Network interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
Network mode |
Net Fault-Tolerance, Multi-address |
RAID |
|
RAID Type |
RAID0, RAID1, RAID5, RAID6, and RAID10 (at least 4 TB for each HDD) |
Auxiliary interface |
|
Serial port |
1 RS-485 (full-duplex), 1 RS-232, 1 keyboard |
SATA |
16 SATA interfaces supporting hot-plug |
eSATA |
1 eSATA interface |
Capacity |
Up to 10 TB capacity for each disk |
Alarm in/out |
16/8 |
USB interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
General |
|
Power supply |
100 to 240 VAC, 50 to 60 Hz |
Consumption (without HDD) |
≤ 45 W |
Fan |
Speed self-adjustable |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Working humidity |
10% to 90% |
Chassis |
3U chassis |
Dimension (W × D × H) |
445 × 496 × 150 mm (17.5"× 19.5" × 5.9") |
Weight (without HDD) |
≤ 12.5 kg (27.6 lb) |
Certification |
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
CE |
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
