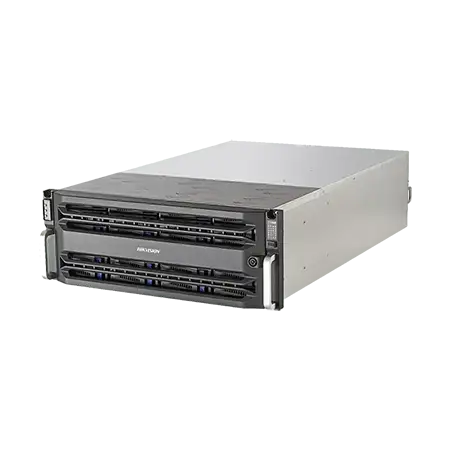

DS-A80624S

DS-A80624S

Hikvision Hybrid Storage Area Network (SAN), 24-slot Single Controller Storage, 320-Ch Recording + Playback Direct Streaming Mode, 180-Ch Recording and Playback IPSAN Mode, 64-bit Multi-Core Processor, 4 to 32 Cache, 24 HDD Slots, Supports Hot-Swapping, 3 Gigabit Ethernet Interfaces, One Gigabit Management Network Interface, 2 USB Ports, 1 COM Port, 2 HDMI Interface, Redundant Power Supply, 4U Chassis

Network Storage Device

24-slot Single Controller Storage

HDD Detection and Repair/RAID Optimization

Detection before operation, Detection in operation., Fault repair

RAID 0, 1, 3, 5, 6, 10, 50, and VRAID

Energy Efficient

CPU load balance, Auto fan tuning, HDD sleeping

Advanced Data Protection

Synchronous backup of key information in system disk and HDD, RAID-based tamper-proof data technology, Auto data synchronization between devices.

Device Maintenance

Management mode, Alarm mode, Log downloading

User-Friendly UI

One touch configuration, Various alarm management

SADP protocol supported, SNMP supported

Interface

1x Ethernet interface, USB x 2, Alarm interface 1, HDMI x1, MiniSAS interface

Direct Streaming Mode

Space pre-allocation strategy, Direct storage for video and picture streams, Supports direct IP camera/DVR/NVR streaming and recording

Performance

Direct Streaming Mode: video (2 Mbps) + picture

320-ch recording + playback

IPSAN

180-ch recording + playback

Controller

Processor

One controller (64-bit multi-core processor)

Cache

4 to 32 GB

HDD

HDD slot

24

Interface / capacity

SATA / 1TB, 2TB, 3TB, 4TB, 6TB,8TB

Hot-swapping

Supported

HDD support

Single, RAID (Enterprise Hard Disk)

RAID

RAID 0, 1, 3, 5, 6, 10, 50, VRAID, JBOD, Hot-Spare

Network

Protocol

iSCSI, RTSP, ONVIF, PSIA

Storage Management

Disk management

Disk inspection, alarm and repair

Logical volume management

iSCSI volume, video volume management

Recording Management

Recording mode

Timing recording, manual recording, dual-stream recording, alarm recording

Video protection

Lock key video, N+1 service protection, ANR, video loss detection and alarm

Searching mode

Search by time and event

Downloading mode

Quick download, batch download, download by segment, download by merging

Device Maintenance

Management mode

Web-based GUI, serial port CLI, centralized management of multiple devices

Alarm mode

Sound, light, email, message, web page

Log downloading

Download no web page

External interface

Data network interface

3, 1000M Ethernet interface

Management network interface

1, 1000M Ethernet interface

MiniSAS interface

Supported

COM

1

USB 3.0

2

Alarm interface

1

HDMI

2

General

Power supply

Redundant

Consumption (with HDDs)

Working: ≤ 430 (1466 BTU with 24 HDDs)

Rated: ≤ 800 W

Environment temperature

●    Working: +5 °C to +40 °C (41 °F to 104 °F)

●    Storing: -40 °C to +55 °C (-104 °F to +131 °F)

Environment humidity

Working: 20% to 80% RH (non-condensing/frozen);

Storing: 5% to 90% RH (non-condensing/frozen)

Chassis

4U (19-inch height)

Dimensions (W × H × D)

447 × 172 × 550mm (17.6 x 6.8 x 21.7in)

Weight (without HDDs)

≤ 33.5kg
