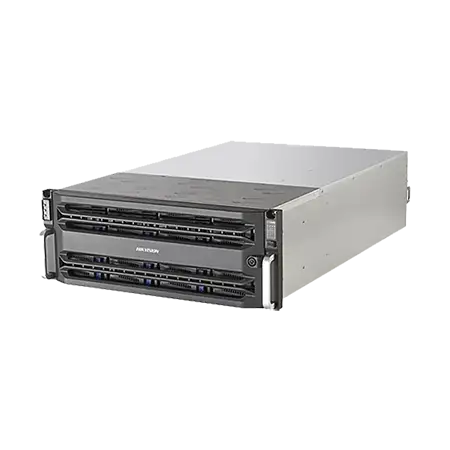

DS-A82024D
DS-A82024D
Hikvision Network Storage Device, 24-slot Cost-efficient Cluster Storage, Double controller, 256 Ch (2Mbps) Record+playback with IPSAN mode,448,Ch(2Mbps) Record+playback with Direct steaming mode, 24 HDD (SAS), Redundant power supply, RAID 0,1,3,5,6,10,50, Hot-Spare, System Information Real-time Backup, 4 1000M Ethernet Port per Controller, 3 USB Interfaces per Controller, 19 Inch 4U, Standard Chassis.
Hybrid SAN (Storage Area Network)
Dual controller, 24 SAS interface for storage enclosure
HDD Detection and Repair/RAID Optimization
Detection before operation, Detection in operation, Fault repair
RAID 0, 1, 3, 5, 6, 10, 50, Global and local hot spare
High-Performance and Extendable Hardware Platform
64-bit multi-core processor, PCI-E 2.0 bus, 4x Ethernet interfaces per controller
Advanced Data Protection
Synchronous backup of key information in system disk and HDD, RAID-based tamper-proof data technology, Auto data synchronization between devices.
Device Maintenance
Management mode, Alarm mode, Log downloading
User-Friendly UI
One touch configuration, Various alarm management
SADP protocol supported, SNMP supported
Interface
24 HDD slot, SSD(optional), SAS up to 12TB, Hot-Swapping, VGA, USB
Direct Streaming Mode
Space pre-allocation strategy, Direct storage for video and picture streams, Supports direct IP camera/DVR/NVR streaming and recording
Supports alarm/scheduled/manual recording, N+1 technology, ANR
Performance |
|
Direct Streaming mode: video (2 Mbps) + picture |
448-ch (recording + playback) |
IPSAN |
256-ch (recording + playback) |
Controller |
|
Controller |
Dual controller |
Processor |
64-bit multi-core processor |
Cache per controller |
8 GB (extendable to 32 GB) / controller |
HDD |
|
HDD slot |
24 |
Interface/capacity |
SSD (optional), SAS / Up to 12 TB |
Hot-swapping |
Supported |
HDD support |
Single, RAID (Enterprise Hard Disk) |
RAID |
RAID0, 1, 3, 5, 6, 10, 50, JBOD, Hot-Spare |
Network |
|
Protocol |
iSCSI, RTSP, ONVIF, PSIA |
Interfaces |
|
Data network interface per controller |
4, 1000M Ethernet interface (4 × GbE or 2 × 10GbE is extendable) |
Management network interface |
1, 1000M Ethernet interface / Controller |
MiniSAS interface |
Supported |
VGA per controller |
1 |
USB per controller |
3 |
General |
|
Power supply |
Redundant |
Consumption (with HDDs) |
Working: ≤ 507 W (1729 BTU with 24 HDDs); Rated: ≤ 800 W |
Environment temperature |
● Working: +5 °C to +35 °C (41 °F to 95 °F) ● Storing: -20 °C to +70 °C (-4 °F to 158 °F) |
Environment humidity |
Working: 20% to 80% RH (non-condensing / frozen) Storing: 5% to 90% RH (non-condensing / frozen) |
Chassis |
19-inch 4U |
Dimensions (W × H × D) |
447 x 172 x 550 mm (17.6 x 6.8 x 21.7 in) |
Weight (without HDDs) |
≤ 33.5 Kg (73.9 lb) |
