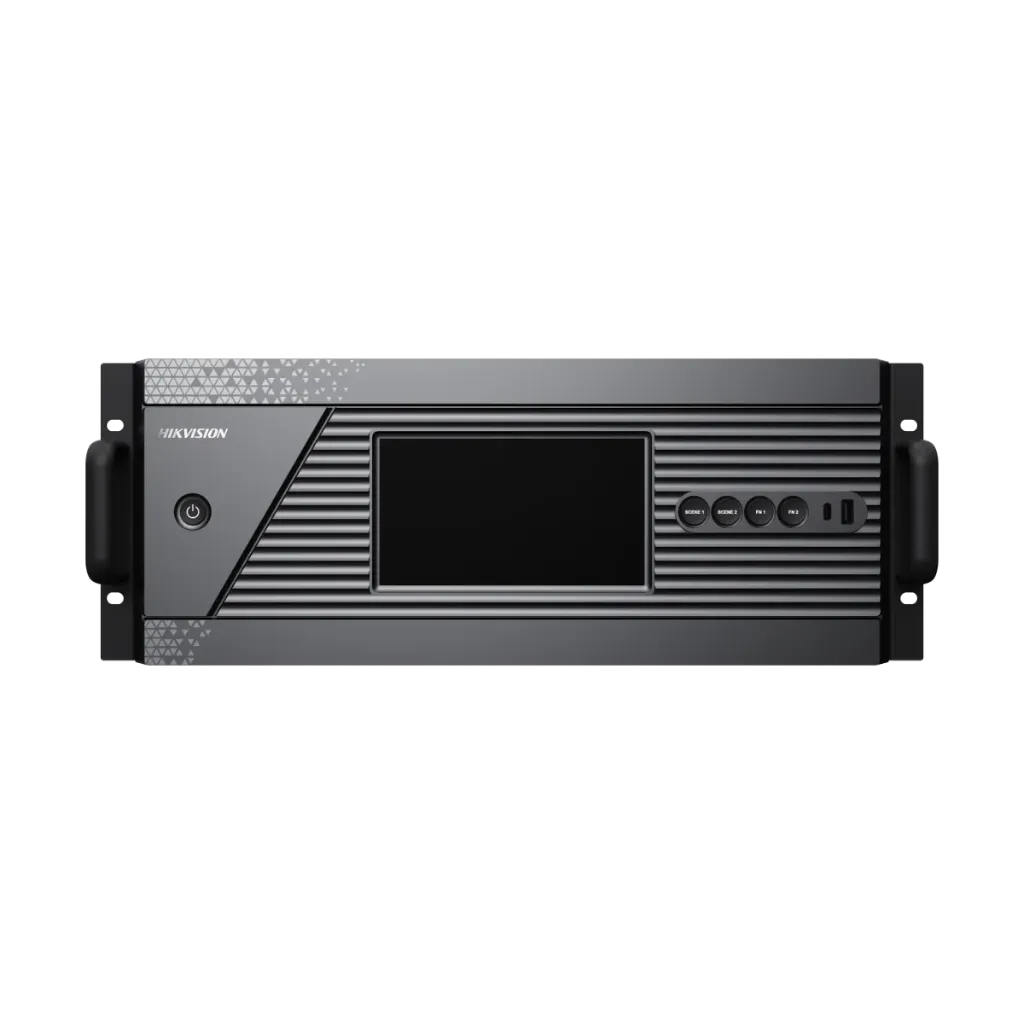

DS-C66S-S12
Video wall controller, 12-slot chassis, 4 U
- 12 service board slots
- Up to 8 video walls, up to 24 displays when fully configured
- HDMI and 4K input and output boards
- LED walls through the 20-port LED board
DS-C66S-S12
Video wall controller, 12-slot chassis, 4 U
- 12 service board slots
- Up to 8 video walls, up to 24 displays when fully configured
- HDMI and 4K input and output boards
- LED walls through the 20-port LED board
Key specs
- Video wall controller chassis
- 12 service board slots, 4 U
- Video walls: 8
- Video wall scale: Up to 24 displays when fully configured
- Scenes: Up to 128 preset scenes
- Hot-swappable boards
- Input boards: DS-C66S-02HI/4K, DS-C66S-04HI
- Output boards: DS-C66S-02HO/4K, DS-C66S-04HO
- Power: ≤ 550 W (full configuration)
| Chassis | |
|---|---|
| Chassis Height | 4 U |
| Bus Type | Network switching |
| Service Board Slots | 12 (6 input slots, 6 output slots) |
| Main Control Board Slot | 1 (1 installed) |
| Max. Input Slots | 6 |
| Max. Output Slots | 6 |
| Installed Power Supplies | 1 (optional 1 additional power supply) |
| Fans | 1, left-right airflow |
| Screen | 7-inch touch IPS LCD panel |
| Main Control Board (DS-C66S-MCU) | |
| USB | 1 × USB 2.0 (front panel USB port also exports logs) |
| Control Network Port | 1 × 1000 Mbps Ethernet (RJ-45) |
| Audio | 2 × 3.5 mm input, 2 × 3.5 mm output |
| Serial | 1 × console (RJ-45, 115200 baud), 1 × RS-485/RS-232 (RJ-45) |
| Genlock | 1 input, 1 loop-through output |
| Power | |
| Power Interface | 100 VAC to 240 VAC, 50/60 Hz |
| Power Consumption | ≤ 550 W (full configuration) |
| Video Wall | |
| Video Walls | Up to 8 |
| Video Wall Scale | Up to 24 displays when fully configured |
| Layers | 16 layers of 2K/4K per output port (HDMI/DVI) or per LED controller board |
| Scenes | Up to 128 preset scenes |
| UHD Fusion | Up to sixteen 4K inputs |
| Background Images | 3, one per wall, 1920 × 1080 |
| Decoding (with DS-C66S-DEC board) | |
| Decoding Format | H.264, H.265, Smart264, Smart265, MJPEG |
| Video Decoding Channels | 48 |
| Decoding Capability | 48 × 720P30, or 24 × 1080P30, or 12 × 4MP, or 8 × 6MP, or 4 × 8MP, or 2 × 12MP, or 2 × 16MP, or 1 × 24MP, or 1 × 32MP |
| Environment | |
| Working Temperature | 0 °C to 50 °C |
| Working Humidity | 10% RH to 90% RH, no condensation |
| General | |
| Dimensions (W × H × D) | 442 mm × 177 mm × 385 mm (17.40 in × 6.97 in × 15.16 in) |
| Net Weight | 16.28 kg (35.89 lb) full configuration; chassis 10.28 kg (22.67 lb); each sub-board 0.5 kg (1.1 lb) |
| Gross Weight | 19.28 kg (42.51 lb) full configuration |
