Hikvision DS-D5B65RB/B 65-inch 4K Interactive Display W/ Camera and Microphone array, 3840 × 2160@60 Hz, 350 cd/m² Brightness, 4-core A73 × 2 + A53 × 2, 1.5 GHz, 3 GB RAM, Built-In Storage: 32GB, Built-in 2 × 16 W loudspeaker, 4K Display Presenting More Details, anti-glared, fingerprint-resistant, and strong light-blocked, touch precision of 1mm, and smart stroke optimization, One-touch Sharing for Meeting via QR code, up to 20 simultaneous touch points, Wireless Screen Mirroring, Built-in 8MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.
Hikvision Interactive Flat Panel
The next generation of digital technologies is transforming the way people live, work, and study. And now, interactive flat panels have emerged to meet the needs of today’s customers. In settings where communication & collaboration are necessary, daily requirements, such as office meetings and classrooms, interactive flat panels can elevate efficiency & bring everyone together. Hikvision's products take the lead with flexible, multi-functional solutions featuring ultra-4K resolution, accurate on-screen writing, built-in whiteboard software, and wireless screen projection.
Why Choose Hikvision’s
Interactive Flat Panels?
Outstanding Imaging
Featuring cutting-edge technologies, Hikvision’s interactive flat panels offer an outstanding visual display for a variety of professional needs such as conferences, instruction, and more.
• 4K resolution and display with anti-glare glass for optimal viewing.
• Eye protection with blue light filtering over 90% and automatic brightness adjustment.
• Zero-gap Bonding with less diffused reflection and screen ghosting.

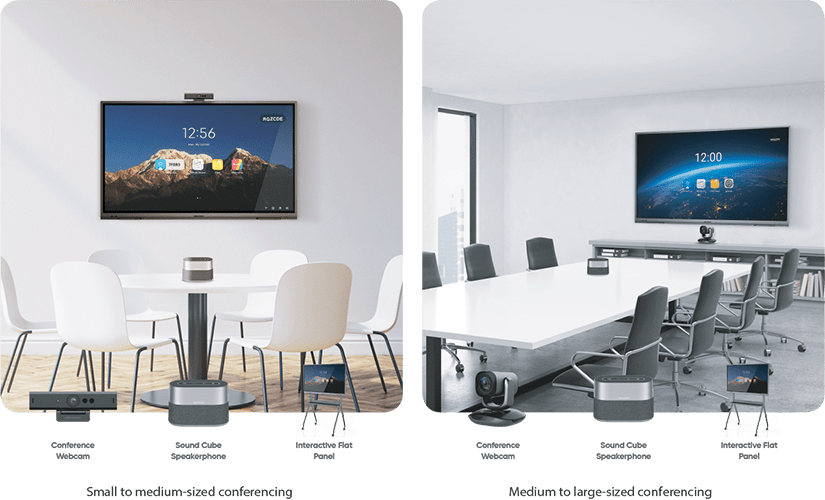

Audio and Video Conferencing Solution
Online and remote conferencing have become regular parts of the workday
for most professionals. Hikvision can help! Integrating our superior
components, Hikvision offers a more productive and interactive experience. The
Ultra-HD imaging and clear audio bring your far-away team members close – from
anywhere in the world.
4K Display Presenting More Details
4K resolution improves the image details with the features of being anti-glared, fingerprint-resistant, and strong light- blocked.
Instant and Ultra-Fine Writing
Provides smooth writing with the touch precision of 1 mm, and smart stroke optimization makes every stroke more real.
One-touch Sharing for Meeting
Annotation sharing by QR code or e-mail ensures more concentrations and higher efficiency.
Free Annotating Without Boundaries
Built-in application enables free annotations and instant saving on any interfaces. The whiteboard system can register up to 20 simultaneous touch points, showing different opinions at the same time.
Wireless Screen Mirroring
Wireless screen mirroring through laptop, desktop PC, mobile phone, and tablet with no need to connect cables. Convenient solution comparison thanks to screen split by half and by quarter.
Corporative Working Without Distance Limit
Video conferencing available through relative software and hardware, making remote cooperation achievable. Multi- screen interaction in large-scale scenarios with synchronized displaying of writing.
Built-in 8 MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.
|
Display |
|
|
Screen Size |
65 inch LED Backlight |
|
Backlight |
DLED |
|
Pixel Pitch |
0.124 (H) × 0.372(V) mm |
|
Resolution |
3840 × 2160@60 Hz |
|
Brightness |
350 cd/m² |
|
Viewing Angle |
178°(H)/178°(V) |
|
Color Depth |
10 bit |
|
Contrast Ratio |
1200:1(Typ.) |
|
Response Time |
6 ms |
|
Refresh Rate |
60 Hz |
|
Color Gamut |
90% NTSC(CIE1931)(Typ.) |
Built-in System | |
|
Processor |
4-core A73 × 2 + A53 × 2, 1.5 GHz |
|
Memory |
3 GB |
|
Built-In Storage |
32 GB |
|
NIC |
Built-in 100 Mbps NIC, supporting routing |
|
Touch |
|
|
Type |
Infrared touch screen |
|
Glass |
Smooth tempered glass being anti-glare and explosion-proof |
|
Touch Point |
20 point multi-touch |
|
Touch Response Time |
＜ 10 ms |
|
Touch Precision |
± 1 mm (≥ 90% touching area) |
|
Optical Bonding |
Support |
|
Interface |
|
|
Video & Audio Input |
HDMI IN × 2, MAX 4K@60 Hz, LINE IN × 1 |
|
Video & Audio Output |
HDMI OUT × 1, MAX 4K@60 Hz, LINE OUT × 1 |
|
Network Interface |
RJ45 (100 Mbps port) × 2 |
|
Data Transmission Interface |
USB on front panel × 2, USB on rear panel × 2, touch USB × 1 |
|
Control Interface |
RS-232 × 1 |
|
Internal Function |
|
|
Loudspeaker |
Built-in 2 × 16 W loudspeaker |
|
Bluetooth |
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version. |
|
Power |
|
|
Power Consumption |
≤ 250 W (full load) |
|
Standby Consumption |
0.5 W |
|
Working Temperature |
0 ℃ to 40 ℃ (32 ℉ to 104 ℉) |
|
Working Humidity |
10% to 90% RH |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50/60 Hz |
|
Product Dimensions (W × H × D) |
1507 × 930 × 86 mm (59.3’’ × 36.6’’ × 3.4’’) |
|
Package Dimensions (W × H × D) |
1687 × 1061 × 234 mm (66.4’’ × 41.8’’ × 9.2’’) |
|
Net Weight |
40.36 kg (88.98 lb.) |
|
Camera |
|
|
Pixel |
8 MP |
|
Camera Function |
Smart switch between Android system and OPS |
|
Field Angle |
100 °(diagonal), 90°(horizontal), 66°(vertical) |
|
Distortion |
≤1% |
|
Camera Resolution Ratio |
Up to 4K |
|
Microphone |
|
|
Specification |
Omni-directional 6-array layout |
|
Mic Function |
Echo reduction and smart noise-cancellation |
|
Sound-Pickup Distance |
8 m |
|
Sampling Rate |
32 K |
|
Mic Sampling Rate |
16 bit |
