DS-D5B86RB/B

DS-D5B86RB/B

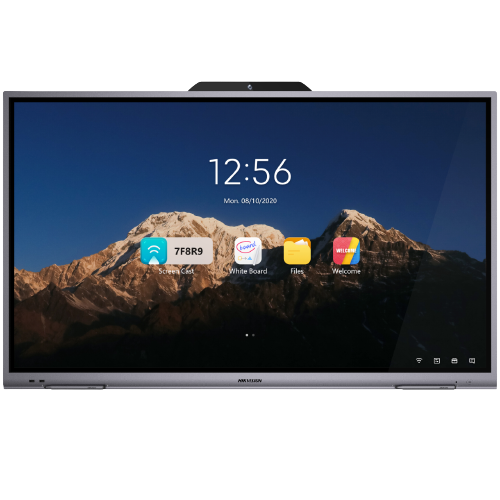

Hikvision DS-D5B86RB/B 86-inch 4K Interactive Display W/ Camera and Microphone array, 4K Display Presenting More Details, anti-glared, fingerprint-resistant, and strong light-blocked, touch precision of 1 mm, and smart stroke optimization, One-touch Sharing for Meeting via QR code, Emails, up to 20 simultaneous touch points, Wireless Screen Mirroring, Built-in 8 MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.

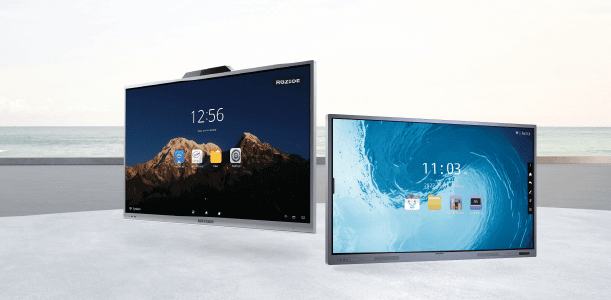

Hikvision Interactive Flat Panel

The next generation of digital technologies is transforming the way people live, work, and study. And now, interactive flat panels have emerged to meet the needs of today’s customers. In settings where communication & collaboration are necessary, daily requirements, such as office meetings and classrooms, interactive flat panels can elevate efficiency & bring everyone together. Hikvision's products take the lead with flexible, multi-functional solutions featuring ultra-4K resolution, accurate on-screen writingbuilt-in whiteboard software, and wireless screen projection

DS-D5B86RB/B

Why Choose Hikvision’sInteractive Flat Panels?

Outstanding Imaging

Featuring cutting-edge technologies, Hikvision’s interactive flat panels offer an outstanding visual display for a variety of professional needs such as conferences, instruction, and more.

• 4K resolution and display with anti-glare glass for optimal viewing.

• Eye protection with blue light filtering over 90% and automatic brightness adjustment.

• Zero-gap Bonding with less diffused reflection and screen ghosting.

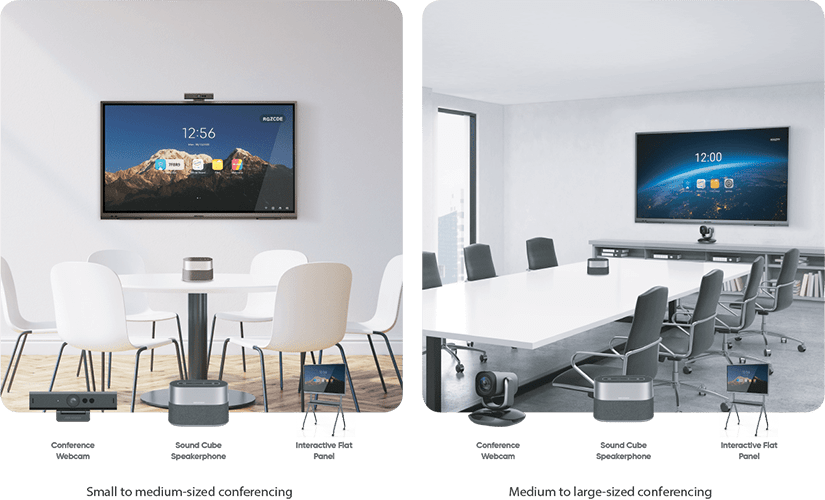

Audio and Video Conferencing Solution

Online and remote conferencing have become regular parts of the workday for most professionals. Hikvision can help! Integrating our superior components, Hikvision offers a more productive and interactive experience. The Ultra-HD imaging and clear audio bring your far-away team members close – from anywhere in the world.

DS-D5B86RB/B

4K Display Presenting More Details

4K resolution improves the image details with the features of being anti-glared, fingerprint-resistant, and strong light- blocked.

Instant and Ultra-Fine Writing

Provides smooth writing with the touch precision of 1 mm, and smart stroke optimization makes every stroke more real.

One-touch Sharing for Meeting

Annotation sharing by QR code or e-mail ensures more concentrations and higher efficiency.

Free Annotating Without Boundaries

Built-in application enables free annotations and instant saving on any interfaces. The whiteboard system can register up to 20 simultaneous touch points, showing different opinions at the same time.

Wireless Screen Mirroring

Wireless screen mirroring through laptop, desktop PC, mobile phone, and tablet with no need to connect cables. Convenient solution comparison thanks to screen split by half and by quarter.

Corporative Working Without Distance Limit

Video conferencing available through relative software and hardware, making remote cooperation achievable. Multi- screen interaction in large-scale scenarios with synchronized displaying of writing.

Built-in 8 MP camera ensures clearer images, and 6 microphone arrays present you an immersive experience.

Display

Screen Size

86 inch LED Backlight

Backlight

DLED

Pixel Pitch

0.164 (H) × 0.493 (V) mm

Resolution

3840 × 2160@60 Hz

Brightness

350 cd/m²

Viewing Angle

178°(H)/178°(V)

Color Depth

10 bit

Contrast Ratio

1200:1(Typ.)

Response Time

6 ms

Refresh Rate

60 Hz

Color Gamut

90% NTSC(CIE1931)(Typ.)

Built-in System

Processor

4-core A73 × 2 + A53 × 2, 1.5 GHz

Memory

3 GB

Built-In Storage

32 GB

NIC

Built-in 100 Mbps NIC, supporting routing

Touch

Type

Infrared touch screen

Glass

Smooth tempered glass being anti-glare and explosion-proof

Touch Point

20 point multi-touch

Touch Response Time

10 ms

Touch Precision

± 1 mm ( 90% touching area)

Optical Bonding

Support

Interface

Video & Audio Input

HDMI IN × 2, MAX 4 K @ 60 Hz, LINE IN × 1

Video & Audio Output

HDMI OUT × 1, MAX 4K @ 60 Hz, LINE OUT × 1

Network Interface

RJ45 (100 Mbps port) × 2

Data Transmission Interface

USB on front panel × 2, USB on rear panel × 2, touch USB × 1

Control Interface

RS-232 × 1

Internal Function

Loudspeaker

Built-in 2 × 16 W loudspeaker

Bluetooth

Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.

Power

Power Consumption

420 W (full load)

Standby Consumption

0.5 W

Working Environment

Working Temperature

0 ℃ to 40 ℃ (32 ℉     to 104 ℉)

Working Humidity

10% to 90% RH

Power Supply

100 to 240 VAC, 50/60 Hz

General

Product Dimensions (W × H × D)

1963 × 1159 × 87.5 mm (77.3’’ × 45.6’’ × 3.4’’)

Package Dimensions (W × H × D)

2187 × 1366 × 274 mm (86.1’’ × 53.8’’ × 10.8’’)

Net Weight

65.62 kg (144.67 lb.)

Gross Weight

86.74 kg (191.23 lb.)

Camera

Pixel

8 MP

Camera Function

Smart switch between Android system and OPS

Field Angle

100 °(diagonal), 90°(horizontal), 66°(vertical)

Distortion

1%

Camera Resolution Ratio

Up to 4K

Microphone

Specification

Omni-directional 6-array layout

Mic Function

Echo reduction and smart noise-cancellation

Sound-Pickup Distance

8 m

Sampling Rate

32 K

Mic Sampling Rate

16 bit
