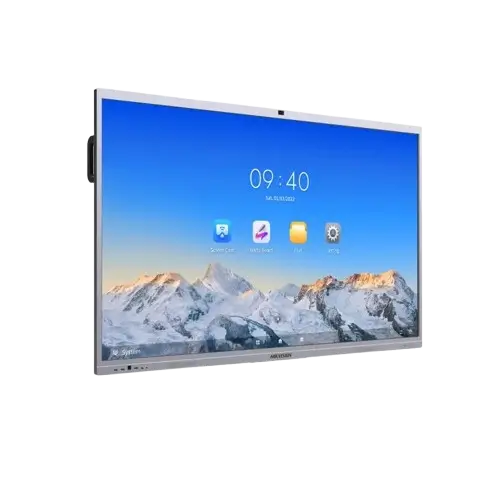

DS-D5C86RB/B
Hikvision DS-D5C86RB/B 86-inch 4K Interactive Display, Anti-glare and anti-blocking design, Quick response, at most 50-points touch control and smooth writing experience, Built-in network switch chip, EDLA Certified, Backlight: DLED, Pixel Pitch: 0.1645 (H) × 0.4935 (V)mm, Resolution: 3840 × 2160 @60 Hz, Brightness: 400 cd/m² (Typ.), Color Depth: 10 bit, Display Color: 1.07 G, Contrast Ratio: 5000:1 (Static); 30,000:1 (Dynamic), Android 13.0, Memory: 8 GB, Built-in Storage: 128 GB, Quad-core Cortex-A76 × 4(2.4 GHz) & quad-core Cortex-A55 × 4 (1.8 GHz), Camera: Pixel 48MP for Photos & 8 MP for Video, Omni-directional 8-array layout Microphone, Built-in 2 × 20 W+25W loudspeaker, Built-in BLE module supports Bluetooth 5.1, Light Sensor, Image Processing Technology, HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1, HDMI Out (HDMI 2.0) × 1, Audio Out × 1, LAN (1000 Mbps) × 2, WIFI: 2.4G/5G, WIFI 6, 100 to 240 VAC, 50/60 Hz.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Audio and Video Conferencing Solution
Online and remote conferencing are now essential to the modern workday.
With Hikvision, you can elevate these interactions to a new level. Hikvision provides a more engaging and productive experience. Our ultra-HD video and crystal-clear audio make distant team members feel as if they’re right there with you—no matter where they are in the world.
Ultra Series Interactive Flat Panel
Explore Hikvision’s next-generation interactive flat panel displays, designed to enhance your experience. Featuring stunning ultra-4K resolution, precise on-screen writing, and intuitive built-in whiteboard software, these displays deliver unmatched versatility and functionality. Effortlessly switch between tasks with smart meeting features, while free wireless projection boosts productivity. Take your presentations and collaborations to the next level with this cutting-edge technology.
Display |
|
Screen Size |
86 inch |
Backlight |
DLED |
Pixel Pitch |
0.1645(H) × 0.4935(V)mm |
Resolution |
3840 × 2160 @60 Hz |
Brightness |
400 cd/m² (Typ.) |
Color Depth |
10 bit |
Display Color |
1.07G |
Response Time |
5 ms |
Panel Type |
VA |
Contrast Ratio |
5000:1 (Static); 30,000:1 (Dynamic) |
Color Gamut |
72% NTSC(CIE1931)(Typ.) |
Refresh Rate |
60 Hz |
Viewing Angle |
178°(H)/178°(V) |
Aspect Ratio |
16:09 |
Surface Hardness |
9H |
Surface Glass |
3.2 mm Anti-Glare Glass |
Surface Haze |
25%Haze |
Glass Bonding Method |
Zero Lamination |
Display Area |
1895.04mm x 1065.96mm |
Working Duration |
7 × 16H |
Transmittance |
88% ± 3 |
Lifespan |
50,000 hours |
Interface |
|
Video & Audio Input |
HDMI In (HDMI 2.0)× 3, VGA In x 1, DP In (DP 1.2)× 1, Audio In × 1 |
Video & audio output |
HDMI Out (HDMI 2.0)× 1, Audio Out × 1, SPDIF Out × 1 |
Control interface |
TOUCH-USB 3.0 × 3, RS232 × 1 |
Network Interface |
LAN (1000 Mbps) × 2 WIFI AP&Station,2.4G/5G IEEE 802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
Data Transmission Interface |
USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
Internal Function |
|
Loudspeaker |
Built-in 2 ×20 W+25W loudspeaker; |
Bluetooth |
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
NFC |
Support screen mirroring by Android phones |
Light Sensor |
Yes |
Image Processing Technology |
Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging support shadow correction and distortion correction for lens. |
Audio Processing Technology |
Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. |
Touch |
|
Type |
Infrared Touch Screen |
Touch Point |
50 point multi-touch |
Touch Response Time |
≤ 2 ms |
Minimum Touch Object |
≥ 1.5 mm (≥ 90% touching area) |
Touch Precision |
± 0.5 mm (≥ 90% touching area) |
Touch Resolution |
32768 × 32768 |
Built-in System |
|
Operation System |
Android 13.0 |
Memory |
8 GB |
Built-in Storage |
128 GB |
Processor |
Quad-core Cortex-A76 × 4 (2.4GHz)and quad-core Cortex-A55 × 4 (1.8GHz) |
GPU |
Mali-G610 MC4 |
HDCP Version |
2.3 |
Camera |
|
Pixel |
Pixel 48MP for Photos & 8 MP for Video |
Camera Function |
Support intelligent switching between Android system, OPS, and PC. |
Field Angle |
120°(diagonal), 110°(horizontal), 75°(vertical) |
Distortion |
≤2.5% |
Camera Resolution Ratio |
Up to 4K |
Microphone |
|
Specification |
Omni-directional 8-array layout |
Mic Function |
Echo reduction and smart noise- cancellation |
Voice Distance |
12 m |
Sampling Rate |
32 K |
Mic Sampling Rate |
16 bit |
Power |
|
Power Supply |
100 to 240 VAC, 50/60 Hz |
Standby Consumption |
≤ 0.5 W |
Average Consumption |
< 205W |
General |
|
VESA |
800 mm × 400 mm (4 × M8-25 mm) |
Product dimensions |
1960.5 mm × 1173.7 mm × 82.5 mm |
Package Dimensions (W × H × D) |
2197 mm × 284 mm × 1376mm |
Net Weight |
65.13 kg |
Gross Weight |
82.6 kg |
Display |
|
Screen Size |
86 inch |
Backlight |
DLED |
Pixel Pitch |
0.1645(H) × 0.4935(V)mm |
Resolution |
3840 × 2160 @60 Hz |
Brightness |
400 cd/m² (Typ.) |
Color Depth |
10 bit |
Display Color |
1.07G |
Response Time |
5 ms |
Panel Type |
VA |
Contrast Ratio |
5000:1 (Static); 30,000:1 (Dynamic) |
Color Gamut |
72% NTSC(CIE1931)(Typ.) |
Refresh Rate |
60 Hz |
Viewing Angle |
178°(H)/178°(V) |
Aspect Ratio |
16:09 |
Surface Hardness |
9H |
Surface Glass |
3.2 mm Anti-Glare Glass |
Surface Haze |
25%Haze |
Glass Bonding Method |
Zero Lamination |
Display Area |
1895.04mm x 1065.96mm |
Working Duration |
7 × 16H |
Transmittance |
88% ± 3 |
Lifespan |
50,000 hours |
Interface |
|
Video & Audio Input |
HDMI In (HDMI 2.0)× 3, VGA In x 1, DP In (DP 1.2)× 1, Audio In × 1 |
Video & audio output |
HDMI Out (HDMI 2.0)× 1, Audio Out × 1, SPDIF Out × 1 |
Control interface |
TOUCH-USB 3.0 × 3, RS232 × 1 |
Network Interface |
LAN (1000 Mbps) × 2 WIFI AP&Station,2.4G/5G IEEE 802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz) authentication protocols WEP, WPA, WPA2, PSK and 802.1X EAP |
Data Transmission Interface |
USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports USB 2.0, DP 1.2, and charging functions; side charging 15 W, front charging 65 W) |
Internal Function |
|
Loudspeaker |
Built-in 2 ×20 W+25W loudspeaker; |
Bluetooth |
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.1 |
NFC |
Support screen mirroring by Android phones |
Light Sensor |
Yes |
Image Processing Technology |
Support 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging support shadow correction and distortion correction for lens. |
Audio Processing Technology |
Support dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection. |
Touch |
|
Type |
Infrared Touch Screen |
Touch Point |
50 point multi-touch |
Touch Response Time |
≤ 2 ms |
Minimum Touch Object |
≥ 1.5 mm (≥ 90% touching area) |
Touch Precision |
± 0.5 mm (≥ 90% touching area) |
Touch Resolution |
32768 × 32768 |
Built-in System |
|
Operation System |
Android 13.0 |
Memory |
8 GB |
Built-in Storage |
128 GB |
Processor |
Quad-core Cortex-A76 × 4 (2.4GHz)and quad-core Cortex-A55 × 4 (1.8GHz) |
GPU |
Mali-G610 MC4 |
HDCP Version |
2.3 |
Camera |
|
Pixel |
Pixel 48MP for Photos & 8 MP for Video |
Camera Function |
Support intelligent switching between Android system, OPS, and PC. |
Field Angle |
120°(diagonal), 110°(horizontal), 75°(vertical) |
Distortion |
≤2.5% |
Camera Resolution Ratio |
Up to 4K |
Microphone |
|
Specification |
Omni-directional 8-array layout |
Mic Function |
Echo reduction and smart noise- cancellation |
Voice Distance |
12 m |
Sampling Rate |
32 K |
Mic Sampling Rate |
16 bit |
Power |
|
Power Supply |
100 to 240 VAC, 50/60 Hz |
Standby Consumption |
≤ 0.5 W |
Average Consumption |
< 205W |
General |
|
VESA |
800 mm × 400 mm (4 × M8-25 mm) |
Product dimensions |
1960.5 mm × 1173.7 mm × 82.5 mm |
Package Dimensions (W × H × D) |
2197 mm × 284 mm × 1376mm |
Net Weight |
65.13 kg |
Gross Weight |
82.6 kg |
