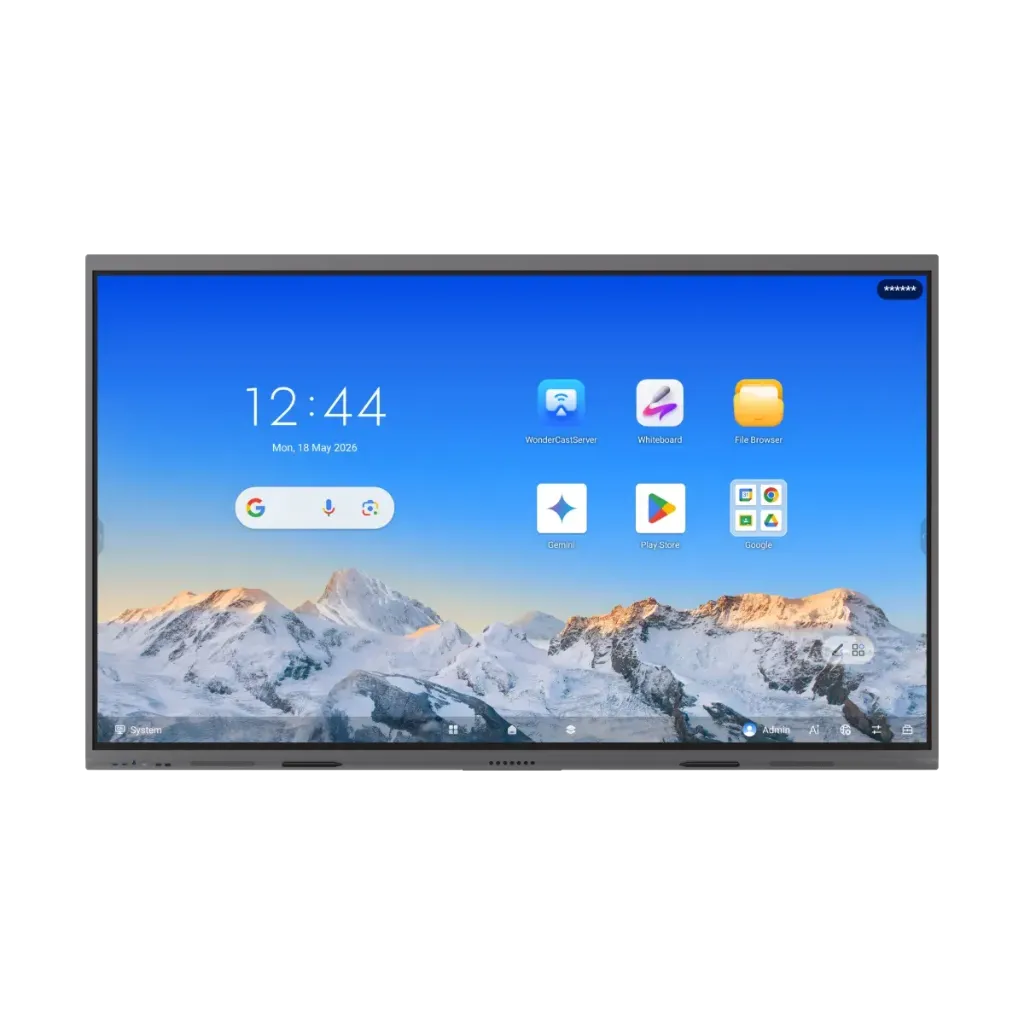

DS-D5C98RB/B2L
98-inch 4K interactive display, Select Series
- 3840 × 2160 @60 Hz, Android 14
- 50-point multi-touch, infrared touch screen
- OPS slot for a Windows PC
- Built-in speakers 2 × 20 W + 25 W
DS-D5C98RB/B2L
98-inch 4K interactive display, Select Series
- 3840 × 2160 @60 Hz, Android 14
- 50-point multi-touch, infrared touch screen
- OPS slot for a Windows PC
- Built-in speakers 2 × 20 W + 25 W
Key specs
- 98-inch 4K interactive display (Select Series)
- 3840 × 2160 @ 60 Hz, 600 cd/m² (Typ.)
- Up to 50-point multi-touch, infrared touch
- Android 14, 8 GB, plus up to 16 GB virtual RAM, 128 GB storage
- Speakers 2 × 20 W + 25 W
- Inputs: HDMI 2.1 × 3
- OPS slot (optional Windows PC)
- VESA 1000 mm × 400 mm
| Display | |
|---|---|
| Screen Size | 98 inch |
| Backlight | DLED |
| Pixel Pitch | 0.164 (H) × 0.493 (V) |
| Resolution | 3840 × 2160 @ 60 Hz |
| Brightness | 600 cd/m² (Typ.) |
| Color Depth | 10 bit |
| Display Color | 1.07 B |
| Response Time | 5 ms |
| Panel Type | IPS |
| Contrast Ratio | 1200:1 |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil) / 7 (Mohs) |
| Surface Glass | Anti-glare and anti-fingerprint |
| Surface Haze | 25% |
| Glass Bonding Method | Zero Lamination |
| Display Area | 2158.85 mm × 1214.35 mm |
| Working Duration | 7 × 16 H |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch | |
| Type | Infrared Touch Screen |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | ≤ 2 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32768 × 32768 |
| Built-in System | |
| Operating System | Android 14.0 |
| Memory | 8 GB, plus up to 16 GB virtual RAM |
| Built-in Storage | 128 GB |
| Processor | Quad-core Cortex-A76 × 4 (2.4 GHz) and quad-core Cortex-A55 × 4 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| NPU | 6 TOPS |
| HDCP Version | 2.3, 2.0, 1.4 |
| Internal Function | |
| Loudspeaker | Built-in 2 × 20 W + 25 W |
| Languages Supported | 39 languages (including English, Simplified Chinese, Japanese, Spanish, Arabic) |
| Bluetooth | BLE module, Bluetooth 5.4 |
| NFC Card Reader | 13.56 MHz (ISO 14443A/B, ISO 15693) |
| Light Sensor | Yes |
| Humidity Accuracy | Up to ± 1.5 %RH |
| Temperature Accuracy | Up to ± 0.1 °C |
| AI | |
| Functions | AI Assistant, AI Identify, AI Notes |
| Free Offer | 1-year validity; 6,000 minutes for AI Notes |
| Whiteboard | |
| Features | Built-in; handwriting recognition, graphics recognition, document insertion |
| Screencast | |
| Software | Built-in WonderCast |
| Capacity | Up to 9 devices simultaneously |
| Interface | |
| Video & Audio Input | HDMI 2.1 TMDS × 3 (Front × 1; Rear × 2; HDCP 2.3/2.0/1.4; HDMI CEC) |
| Video Input | VGA × 1 (Rear) |
| Audio Input | Audio × 1 (Rear) |
| Video & Audio Output | HDMI 2.1 TMDS × 1 (Rear) |
| Audio Output | Audio × 1 (Rear); SPDIF × 1 (Rear) |
| Control | TOUCH-USB 3.0 × 1 (Front); TOUCH-USB 2.0 × 2 (Rear); RS232 × 1 (Rear) |
| LAN | 1000 Mbps × 2 (Rear) |
| Wi-Fi | AP & Station, 2.4 GHz / 5 GHz; Wi-Fi 6 (802.11 a/b/g/n/ac/ax), 2 × 2 MIMO |
| Wi-Fi Authentication | WEP, WPA, WPA2, PSK, 802.1X EAP |
| USB 3.0 | × 4 (Front × 2; Rear × 2) |
| USB 2.0 | × 1 (Rear) |
| Type-C | × 2 (Front × 1; Rear × 1); USB 2.0, 100 W charging, DP IN 1.2 |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Average Consumption | < 325 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% to 90% RH |
| General | |
| VESA | 1000 mm × 400 mm (4 × M8, 20 mm) |
Know before you buy
Quick answers about the DS-D5C98RB/B2L, and how it compares.
Does it have a camera?
Not built in on this model.
How many people can write at once?
It supports up to 50-point multi-touch (infrared touch screen), so several people can write at the same time.
Can I run Windows on it?
Yes, with an OPS PC module in its slot: DS-D5AC12G5-8S2. Android runs built in.
Can I share my laptop screen wirelessly?
Yes, with the WonderCast software, no extra hardware needed. Or plug the optional DS-D5SC4B-B wireless dongle into the laptop and press to share.
Can I buy it online?
Interactive displays are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
