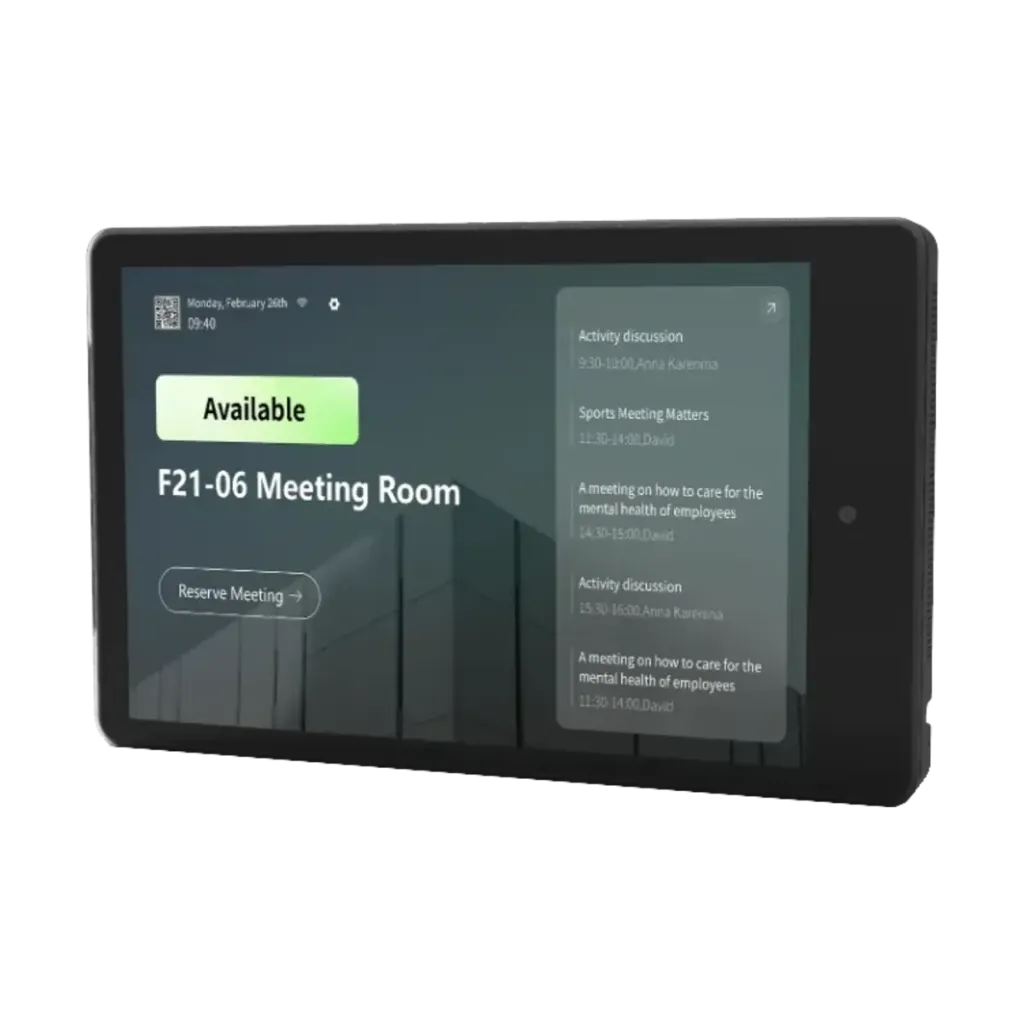

DS-D5F10CB/BH
10.1-inch meeting room scheduling panel
- Meeting info on the door
- Face or NFC card sign-in
- Opens the door after sign-in
- PoE powered, wall mounted
DS-D5F10CB/BH
10.1-inch meeting room scheduling panel
- Meeting info on the door
- Face or NFC card sign-in
- Opens the door after sign-in
- PoE powered, wall mounted
Key specs
- 10.1-inch meeting room scheduling panel
- 1280 × 800 touch screen, 10-point touch
- Meeting topic, host and time on the door
- Sign-in by face (2 MP camera) or NFC card
- Unlocks the door after sign-in (access control linkage)
- Exchange server and AD domain support
- Android 11, 2 GB RAM, 16 GB storage
- PoE (802.3at) or 12 VDC, 18 W
- Wall mounting, 275 × 170 × 25 mm
| Display | |
|---|---|
| Screen Size | 10.1 inch |
| Brightness | 250 cd/m² |
| Viewing Angle | 170° (H) / 170° (V) |
| Physical Resolution | 1280 × 800 |
| Touch | |
| Touch Point | 10 |
| Built-in System | |
| Processor | 4 cores ARM Cortex-A55 |
| Memory | 2 GB |
| Built-in Storage | 16 GB |
| Operation System | Android 11.0 |
| Internal Function | |
| Camera | 2 MP WDR camera |
| Card Reader | NFC, 13.56 MHz (ISO14443A / ISO14443B / ISO 15693 / M1 card / Sony FeliCa) |
| Microphone | Included |
| Loudspeaker | 8 Ω, 2 W × 2 |
| Interface | |
| USB | Micro USB OTG × 1, USB 3.0 × 1 |
| Data Transmission Interface | Access control linkage interface × 1, 3.5 mm audio × 1 |
| Network Interface | RJ45, 1000 M LAN (IEEE802.3at, PoE 56-57 V, class 4, 25.5 W) |
| Bluetooth | BT 4.1 |
| Indicator | LED |
| General | |
| Power | 12 VDC, 1.5 A |
| Power Consumption | 18 W |
| Product Dimensions | 275 × 170 × 25 mm |
| Mounting Type | Wall mounting |
| Net Weight | 1.5 kg |
| Package Dimensions | 390 × 220 × 68 mm |
| Gross Weight | 3.7 kg |
| Packing List | Power adapter × 1, access control linkage line × 1, quick start guide × 1, screw kit × 1, Micro USB cable × 1, compliance manual × 1 |
| Working Environment | |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 0% to 95% |
| Storage Temperature | -40 °C to 85 °C |
Know before you buy
Quick answers about the DS-D5F10CB/BH, and how it compares.
What does it show?
The meeting topic, the meeting room, the host and the time, according to the meeting status.
How do people sign in?
By face, with the built-in 2 MP camera, or by swiping an NFC card. The sign-in is reported to the platform.
Can it open the door?
Yes. After a successful sign-in it triggers its access control linkage output to open an electromagnetic lock.
Does it work with Outlook / Exchange?
It supports access to Exchange server and AD domain functions.
