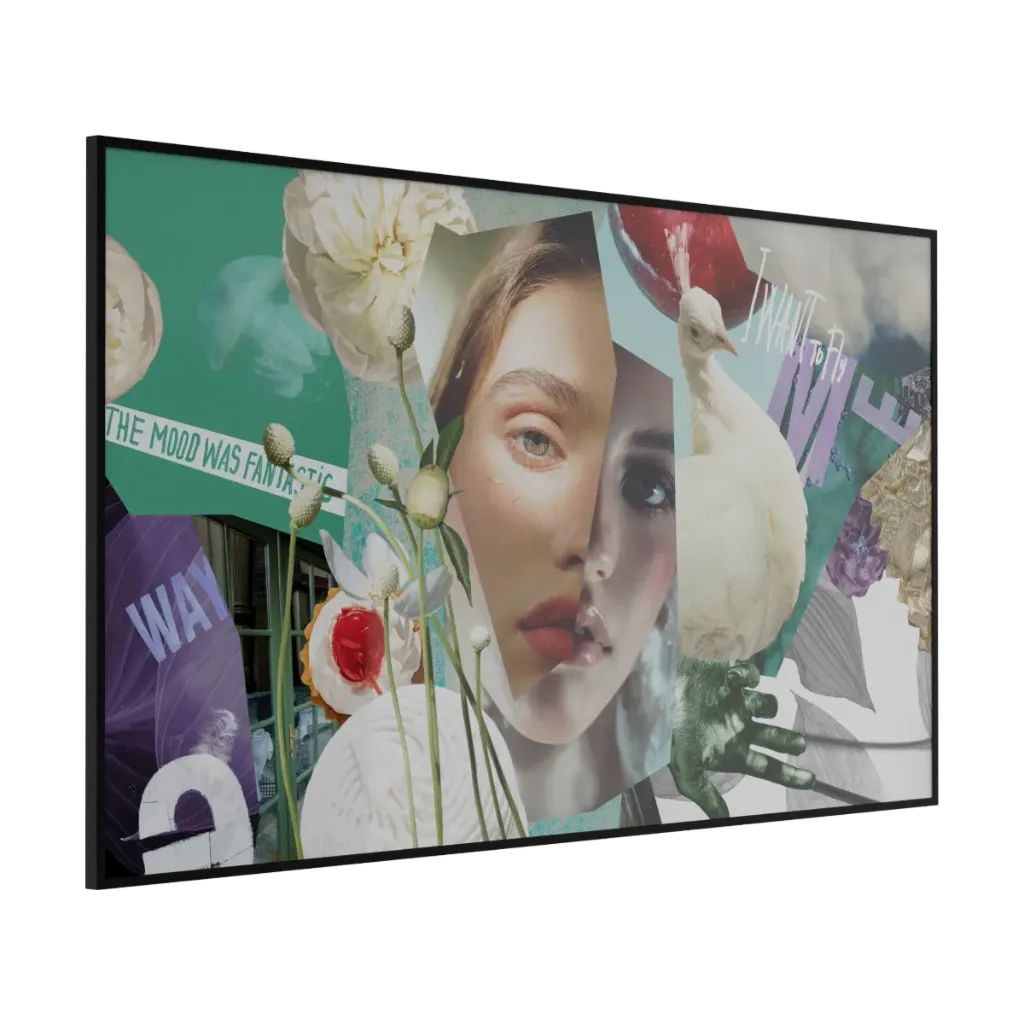

DS-D6055UN-DL
55-inch wall-mounted digital signage
- 3840 × 2160, 500 cd/m²
- Built-in Android 13 player, 4 GB RAM, 32 GB eMMC
- Rated for 7 × 24h operation
- Wi-Fi and LAN for remote content
DS-D6055UN-DL
55-inch wall-mounted digital signage
- 3840 × 2160, 500 cd/m²
- Built-in Android 13 player, 4 GB RAM, 32 GB eMMC
- Rated for 7 × 24h operation
- Wi-Fi and LAN for remote content
Key specs
- 55-inch wall-mounted digital signage
- 3840 × 2160
- 500 cd/m²
- Android 13, 4 GB RAM, 32 GB eMMC storage
- Input: HDMI 2.0 (HDCP 2.2) × 3, DP 1.2
- Speakers: LINE OUT, Speaker (6 Ω 10 W) × 2
- Network: RJ45, Wi-Fi
- Rated for 7 × 24h
- 134 W (typ), 195 W (max), 13 kg
| Display | |
|---|---|
| Screen Size | 55 inch |
| Resolution | 3840 × 2160 |
| Active Display Area | 1219.70 (H) mm × 691.89 (V) mm |
| Pixel Pitch | 0.105 (H) mm × 0.315 (V) mm (as printed) |
| Backlight | D-LED |
| Viewing Angle | 178° (H) / 178° (V) |
| Brightness | 500 cd/m² |
| Contrast Ratio | 4000:1 |
| Color Depth | 10 bit (8 bit + FRC) |
| Response Time | 8 ms |
| Color Gamut | 85% NTSC |
| Reliability | 7 × 24h |
| Refresh Rate | 60 Hz |
| Haze | 25% |
| Built-in System | |
| OS | Android 13 |
| CPU | Cortex-A55, 4-core, 1.92 GHz main frequency |
| RAM | 4 GB |
| Storage | 32 GB eMMC |
| Interface | |
| Video and Audio Input | HDMI 2.0 (HDCP 2.2) × 3, DP 1.2 × 1 |
| Video and Audio Output | LINE OUT × 1, Speaker (6 Ω 10 W) × 2 |
| Network | RJ45 × 1, Wi-Fi (2.4G/5G, 802.11 a/b/g/n/ac/ax) × 1, RS232 in × 1, RS232 out × 1 |
| Data Transmission | USB 2.0 × 1, USB 3.0 × 1, BT 5.4 × 1 |
| Power | |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Power Consumption | 134 W (typ), 195 W (max) |
| Working Environment | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Operating Humidity | 10% to 80% RH |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) |
| Storage Humidity | 10% to 90% RH |
| General | |
| Mounting Type | Wall mounting (horizontal or vertical) |
| Product Dimensions without wall-mount back panel (W × H × D) | 1238.4 mm × 709.2 mm × 70 mm |
| Product Dimensions with wall-mount back panel (W × H × D) | 1238.4 mm × 709.2 mm × 99.8 mm |
| Package Dimensions (W × H × D) | 1390 mm × 830 mm × 144 mm |
| Net Weight | 13 kg |
| Gross Weight | 19.5 kg |
| Available Models | DS-D6055UN-DL, DS-D6055UN-DL/Motherboard |
| Packing List | |
| Digital signage | 1 |
| Wall-mount back panel with fixing screws | 1 |
| EU power cable | 1 |
| RS232 cable | 1 |
| Remote control | 1 |
| User manual | 1 |
| Quick start guide | 1 |
| Regulatory and safety information | 1 |
| Logo sticker | 1 |
| Energy efficiency label | 1 |
Know before you buy
Quick answers about the DS-D6055UN-DL, and how it compares.
What can it play?
Plays pictures, audio, video, scrolling subtitles, PDF, web pages, live video, number calling and pop-up pictures.
Does it need a PC?
No. It has a built-in Android 13 player with 4 GB RAM and 32 GB eMMC storage.
How do I change what it shows?
Flexible scheduling: daily, weekly, loop and custom play modes. Centralized management: timed on/off, quick on/off, timed brightness/volume, screenshot preview, remote program release, USB program update.
Can it run all day?
Yes. Hikvision rates it for 7 × 24h operation.
Can I buy it online?
Digital signage displays are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
