System |
|
|
Processor |
32-bit |
|
Interface |
|
|
TAMPER |
Support |
|
RS-485 |
Support |
|
Wiegand |
Support (set via DIP switch) |
|
Authentication |
|
|
Card reading frequency |
13.56 MHz |
|
Card reading distance |
≤50 mm (≤1.97") |
|
General |
|
|
Indicator |
Power indicator, status indicator |
|
Power supply |
12 VDC |
|
Power consumption |
≤2 W |
|
Working temperature |
-20 °C to 65 °C (-4 °F to 149 °F) |
|
Working humidity |
10% to 90% (Non Condensing) |
|
Protective level |
IP65 |
|
Dimensions |
115 mm × 44 mm × 22 mm (4.53'' × 1.73'' × 0.87'') |
|
Installation |
Wall Mounting with Screws; Do Not Support Gang Box |
|

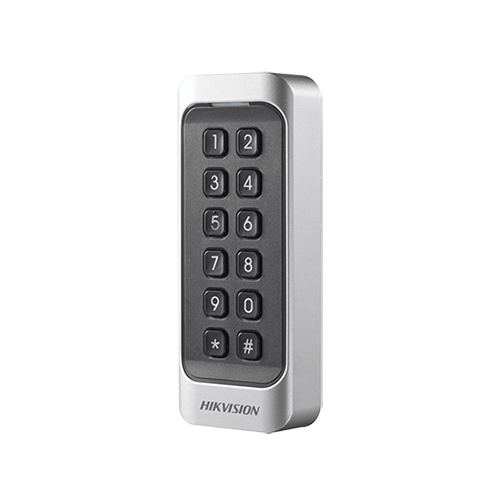

Keypad |
Keypad with 12 Keys (0~9, *, #) |
|
Buzzer |
Support |
