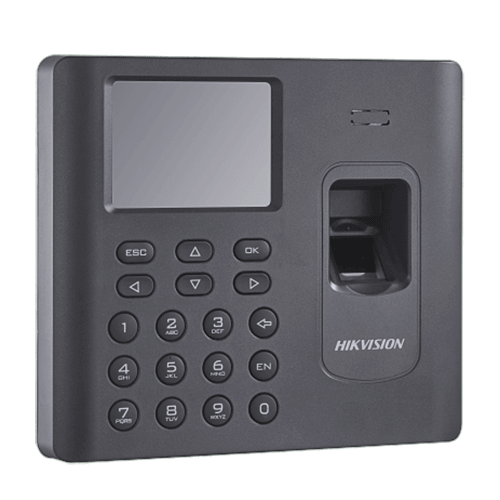

DS-K1A802MF-B

Hikvision Fingerprint Time Attendance Terminal, Built-in Mifare card reading module, Storage with 3000 cards, 3000 fingerprints and 100,000 events, Supports Time Attendance function, Optical Fingerprint Recognizer Module, Uplink Communication: TCP-IP, Wi-Fi, USB2.0, Physical Keypad, 12 VDC, Supports Lithium Battery.

https://www.esco.pk/web/image/product.template/2564/image_1920?unique=a41cdf3

    Rs. 0.00 0.0 PKR Rs. 0.00

    Rs. 10,000.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    Hikvision
    ​

    Time Attendance

    Standalone Time Attendance Terminal

    User Support

    Support upto 3000 users with 10 Fingerprints Per User

    Battery

    2000mAh Lithium Ion Built-in Battery for Reliability

    Record History

    Up to 3,000 Valid Cards

    Up to 100,000 Event Records

    Up to 150,000 Attendance Records

    Authentication Mode

    Support Fingerprint, Mifare Card and Password Authentication Mode

    Response Time

    Fingerprint Authentication <1s

    Card Authentication <1s

    Shifts

    Support Upto 32 Normal Shift, 32 Man-Hour Shifts

    Interface Support

    Support Wifi and 10/100 Mbps RJ-45 Interface

    Support USB 2.0 Interface for Easy Attendance Reports

    General

    Storage

    Up to 3000 valid cards, 100,000 records, 150,000 attendance records

    Operation system

    Linux

    iVMS-4200

    Support

    Fingerprint capacity

    Up to 3000 fingerprints; up to 10 fingerprints for each person

    Card reading response duration

    < 1 s

    Fingerprint recognition duration

    < 1 s

    Fingerprint comparing mode

    1:1 and 1:N

    FAR (False Acceptance Rate)

    ≤ 0.001%

    FRR (False Rejection Rate)

    ≤ 0.01%

    Fingerprint recognizer

    Optical fingerprint recognizer module

    Card reading mode

    Support Mifare card, including cards with special shapes; Supports reading card in metal environment

    Card reading distance

    0 to 5 cm

    Lithium battery

    2000 mAh

    Transmission Rate

    LAN: 10/100 Mbps self-adaptive

    Wi-Fi

    Support

    USB interface

    USB 2.0, type A

    LCD screen

    2.8-inch 320 × 240 LCD-TFT display screen

    Keypad

    Physical keys (no backlight)

    LED indicator

    Power/status (red/green)

    Audio

    1 buzzer, 1 loudspeaker

    Power supply

    12 VDC/1 A

    Working temperature

    -10 °C to +55 °C (14 °F to +131 °F)

    Working humidity

    10% to 90% (no condensing)

    Application mode

    Indoor

    Color

    Black (included), gold (optional), silver (optional), white (optional)

    Dimension (L × W × H)

    140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")

    Installation

    Surface mounting, metal door mounting, desk stand
