DS-K1F600-D6E-F

DS-K1F600-D6E-F

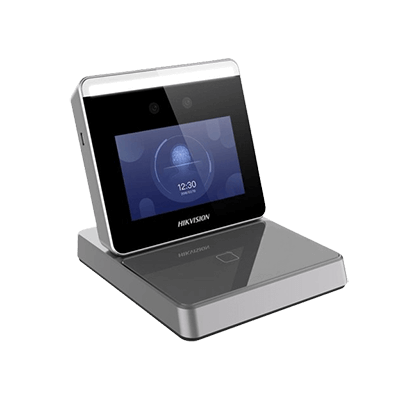

Hikvision DS-K1F600-D6E-F Enrollment Station, Supports enrolling face picture, fingerprint, 13.56 MHz Mifare 1 card, and 125KHz EM card. 3.97-inch LCD touch screen, 2 Mega pixel wide-angle lens; Supports TCP/IP communication, DC 12V/2A, Dimensions: 121.6 mm × 137.9 mm × 125 mm (4.8"" × 5.4"" × 4.9"").

Enrollment Station

Hikvision DS-K1F600-D6E-F Enrollment Station,

Supports enrolling face picture & fingerprint

Display

Dimensions: 3.97 inch, Resolution: 800 × 480, Type: Capacitive Touch

Application

Suitable for the scenarios of enterprise, apartments, offices, construction site, etc.

Capacity

2,000 user capacity, 2,000 face capacity,

20,000 card capacity, and 20,000 fingerprint capacity

Camera

2MP wide-angle dual-lens

Authentication

Face Recognition Distance: 0.3 m to 1.5 m, Card Type: EM card; M1 card

System

Operation system

Linux

Screen

Dimensions

3.97 inch

Resolution

800 × 480

Type

Capacitive

Operation method

Touch

Video

Pixel

2 MP

Lens

2

WDR

Support

Video standard

PAL/NTSC

Audio

Audio output

Support

Volume adjustment

Support

Network

Wired network

TCP/IP

Wi-Fi

Support

Interface

Power interface

Round

USB

1

PSAM card

Reserved

Capacity

User capacity

2000

Card capacity

20,000

(The displayed capacity on the device screen varies according to the configured enrollment rules)

Face capacity

2000

Fingerprint capacity

20,000 (10 fingerprints per person)

Event capacity

2000 offline enrollment records

Authentication

Card type

EM card and Mifare 1 card

Card reading frequency

13.56MHz, 125KHz

Card reading distances

0 to 5 cm

Face recognition distance

0.3 m to 1.5 m

Function

Face anti-spoofing

Support

Audio prompt

Support

M1 card encryption

Support

Time synchronization

Support

Others

Supplement light

Support

Indicator

Not support

Power supply

12 VDC, 15 W

Working temperature

-10 °C to 50 °C (14 °F to 122 °F)

Working humidity

10 to 90

Dimensions

121.6 mm × 137.9 mm × 125 mm (4.8" × 5.4" × 4.9")

Application environment

Indoor

Weight

0.5 kg (1.1 lb)

Installation

Base mounting
