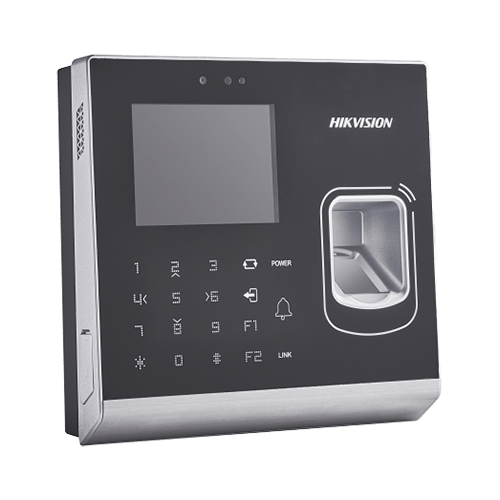

DS-K1T201MF-C

Hikvision IP-based Fingerprint Access Control Terminal, 2 MP Camera, Optical Fingerprint Recognizer Module, Mifare Card Reader, 100,000 Cards and 300,000 Record Capability, 5000 Fingerprints, 10 Fingerprint Templates for a Person, Supports RS-485 and Wiegand (W26/W34) Protocol, Tamper Proof Alarm, Wi-Fi.

https://www.esco.pk/web/image/product.template/2566/image_1920?unique=a41cdf3

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Invalid email
    We'll notify you once the product is back in stock.
    Added to your wishlist
    Contact Us
    Hikvision
    ​

    Camera

    2MP Camera for Face detection and Picture capturing

    Fingerprint Capacity

    Support upto 5000 users with 10 Fingerprints Per User

    Record History

    100,000 Cards

    300,000 Swiping Card Records

    Authentication Mode

    Support Fingerprint, Mifare Card and Password Authentication Mode

    Interface

    Doorbell, Tamper Alarm, Exit Button, Door Magnetic Sensor, Alarm Input

    Response Time

    Fingerprint Authentication <1s

    Card Authentication <1s

    Specifications

    Processor

    32 Bit High-performance Processor

    Storage

    256M Storage

    Operation System

    Linux

    Camera

    2 MP (Optional)

    Card Capability

    100,000 Cards and 300,000 Swiping Card Records

    Fingerprint Capacity

    Max. 5000 Fingerprints; Up to 10 Local Collected Fingerprint Templates for Each Person

    Fingerprint Recognition Speed

    1:1≤1s, 1:3000≤1.5s

    FAR (False Acceptance Rate)

    ≤0.001%

    FRR (False Recognition Rate)

    ≤0.01%

    Fingerprint Module

    Optical Fingerprint Recognizer Module

    Card Reading Mode

    Mifare Card Reading

    Communication Mode

    TCP/IP and Wi-Fi

    Input Interface

    Doorbell × 1, Tamper Alarm × 1, Exit Button × 1, Door Magnetic Sensor × 1, Alarm Input × 2

    Output Interface

    Lock Relay × 1, Alarm Output × 1

    USB Interface

    USB 2.0

    LCD Screen

    320 × 240 (pixel) LCD-TFT Display Screen

    Key Board

    17 Keys

    LED Indicator

    Power/ Communication

    Prompt

    Beeper and Audio

    Power Supply

    12 VDC/3 A

    Working Current

    Max. 500 mA

    Working Temperature

    -30°C to 65°C (-22°F to 149°F)

    Working Humidity

    10% to 90% (No Condensing)

    Dimension

    137mm × 142mm × 35mm (5.4” × 5.6” × 1.4”)

    Weight

    400g (0.88lb)
