DS-K1T320MFWX-B
Hikvision DS-K1T320MFWX-B Value Series Face Access Terminal, Operating system Linux, ROM: 4GB, RAM: 256MB, CPU: 960 MHz, Screen size 2.4 inch, FOV HFOV = 43°; VFOV = 25°, Audio output: Built-in buzzer, Face capacity: 500, Fingerprint capacity: 1,000, Card capacity: 1,000, Event capacity 100,000, Face recognition distance 0.3 m ~ 1.5 m, Card type M1 card, Support, 2.4 G 802.11b/g/n Wi-Fi, Supplement light: White light, Support Multi-factor authentication, Face anti-spoofing, Supports access control and local time and attendance function, 12 VDC, -10 °C to 55 °C.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Value Series Face Access Terminal

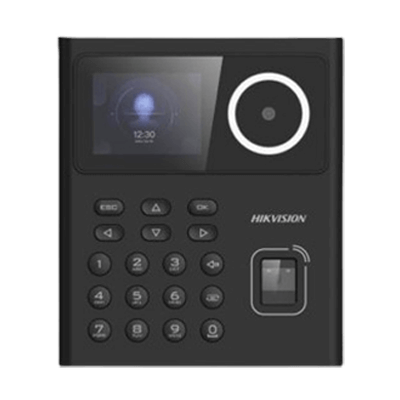

Hikvision DS-K1T320MFWX-B Value Series Face Access Terminal
Camera
Resolution 2 MP (video stream: 720P), FOV HFOV = 43°; VFOV = 25°
Multiple Authentication
Multiple authentication methods, including face, fingerprint, card, and PIN, etc
LCD Screen
2.4-inch LCD screen
User Support
Max. 500 faces, 1,000 cards, 1,000 fingerprints and 100,000 events
Function
Support Face Anti-Spoofing, Built-in buzzer & Support Time Attendance
System |
|
Operating system |
Linux |
ROM |
4 GB |
RAM |
256 MB |
CPU |
960 MHz |
Display |
|
Screen size |
2.4 inch |
Type |
LCD |
Resolution |
320 × 240 |
Video |
|
Lens |
1 |
Video compression standard |
PAL (Default) and NTSC |
Resolution |
2 MP (video stream: 720P) |
FOV |
HFOV = 43°; VFOV = 25° |
Audio |
|
Audio output |
Built-in buzzer |
Network |
|
Network protocol |
ISAPI, ISUP 5.0 |
Wired network |
Support |
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
Interface |
|
Network interface |
1 RJ-45, 10/100 M self-adaptive |
Lock control |
1 |
Exit button |
1 |
Door contact input |
1 |
TAMPER |
1 |
USB |
1 |
Capacity |
|
Face capacity |
500 |
Fingerprint capacity |
1,000 |
Card capacity |
1,000 |
Event capacity |
100,000 |
Authentication |
|
Face recognition distance |
0.3 m ~ 1.5 m |
Face recognition accuracy rate |
> 99% |
Face recognition duration |
< 0.2 s |
Card type |
M1 card |
Card reading distance |
0 ~ 5 cm |
General |
|
Built-in access controller |
Yes |
Supplement light |
White light |
Power supply |
12 VDC Supports power supply by battery in the bracket |
Power consumption |
≤ 6 W |
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
Working humidity |
0 to 90% (No condensing) |
Function |
|
Live view |
Support |
Multi-factor authentication |
Support |
Face anti-spoofing |
Support |
