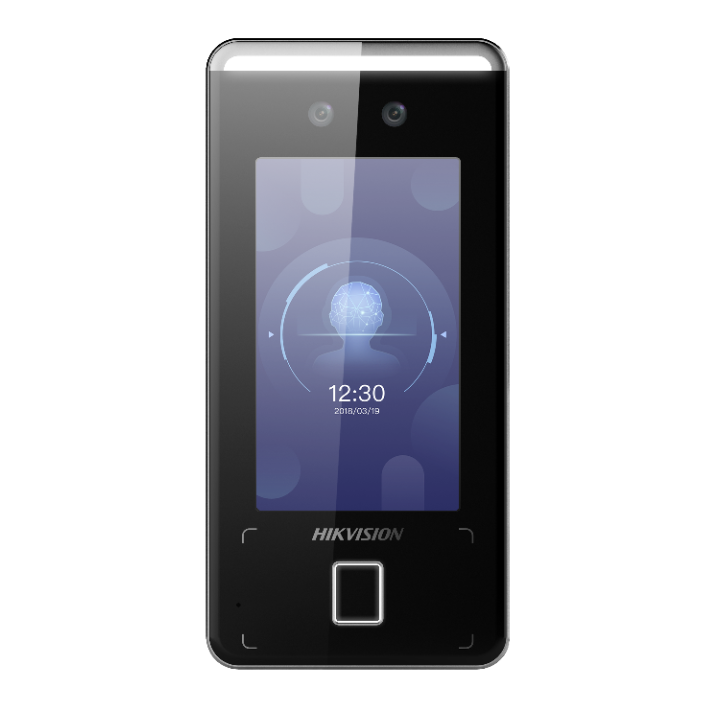

DS-K1T341AMF
Hikvision DS-K1T341AMF Value Series Face Access Terminal, 4.3-inch LCD touch screen, 2MP camera, built-in Mifare card reading module, Max.3000 faces capacity and Max.3000 fingerprints capacity, Max.3000 cards, Two-way audio with client software, indoor station, and master station, Supports TCP/IP, Supports ISUP5.0, ISAPI, Configuration via the web client, Face recognition. Distance: 0.5 m to 1.5 m, Duration<0.2 s/User, Accuracy rate ≥ 99%, IP65.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Value Series Face Access Terminal
Face Recognition Distance: 0.5 m to 1.5 m, Face recognition duration< 0.2 s/User
Camera
2MP Dual Lens Camera
User Support
3000 face capacity, 3000 Fingerprint & Card capacity, 150,000 event capacity
Time Attendance Status
Check In/Out, Break In/Out, Overtime In/Out
Interface
1x RJ45, ×1x RS-485, Wiegand 26 & 34, 1xLock output, 1x Exit button
1x Door contact input, 1x Power interface, 1xTAMPER, 1x USB
LCD Touch Screen
4.3-inch LCD touch screen
Anti Spoofing
Support Face Anti-Spoofing
Multiple Authentication Modes
Card and Fingerprint, Face and Fingerprint, Card and Face and Fingerprint, etc
Mask Wearing Alert
Face Mask Wearing Alert and Forced Mask Wearing Alert
Audio Interface
Built-in Omnidirectional Microphone
Built-in loudspeaker
Applications
Factories
For both protection and confidentiality, many factories use strict access control systems. But traditional authentication methods aren't as accurate and simple as facial recognition today. For example, Lost ID cards may be picked up by unauthorized individuals who want to access restricted areas. When staff members are carrying boxes, or wearing gloves over their fingers, fingerprint authentication may also be uncomfortable. All these issues are solved at once by using face recognition terminals-adding protection and convenience wherever it is needed.
Offices
For office premises, Access control and Attendance are equally important. It's too simple for workers to fraudulently Check In/Out with conventional card-based solutions. And at peak hours, fingerprint-based solutions can not be effective. Now, with fast recognition speeds below 0.2 seconds, Hikvision Face Recognition Terminals are providing a secure and powerful solution for office scenarios.
Schools
Face recognition at the school gate ensures the campus can only be accessed by approved students, employees, and parents. Using facial-imaging as identification, it provides a superior protection approach since it is nearly impossible to produce counterfeits using the advanced technologies of Hikvision.
Stores
For store managers, maintaining accurate and reliable attendance records is important. The perfect solution for retail store applications of all kinds is the new Value Series Face Recognition Terminals from Hikvision. For staff at all levels, it's precise, quick, and convenient.
Screen |
|
Size |
4.3-inch |
Operation method |
Capacitive touch screen |
Camera |
|
WDR |
Support |
Resolution |
2MP |
Lens |
× 2 |
Video standard |
PAL (Default) and NTSC |
Audio |
|
Audio input |
Built-in omnidirectional microphone |
Audio output |
Built-in loudspeaker |
Volume adjustment |
Adjust via device or client |
Network |
|
Wired network |
10 M/100 M/1000 M self-adaptive |
Communication protocol |
EHome 5.0 |
Interface |
|
Network interface | 1x RJ45 |
RS-485 |
× 1 |
Wiegand |
Wiegand 26 and Wiegand 34 |
Lock output |
× 1 |
Exit button |
× 1 |
Door contact input |
× 1 |
Power interface |
× 1 |
TAMPER |
× 1 |
USB |
1x USB2.0 |
Capacity |
|
Card capacity |
3000 |
Face capacity |
3000 |
Fingerprint capacity |
3000 |
Event capacity |
150,000 |
Authentication |
|
Card type |
Mifare 1 |
Card reading distance |
0 to 3 cm |
Card reading duration |
< 1 s |
Face recognition duration |
< 0.2 s |
Face recognition distance |
0.5 to 1.5 m |
Fingerprint Recognition duration |
< 1 s |
Function |
|
Face anti-spoofing |
Support |
Live view |
Supports live view on the platform, H.264 |
Face recognition |
Supports face recognition in low illumination |
Access control management |
Supports multiple authentication methods |
Others |
|
Power supply |
12 VDC, 2 A |
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
Working humidity |
0 to 90% (No condensing) |
Protective level |
IP65 |
