Hikvision DS-K1T342EFWX Value Series Face Access Terminal, Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards, Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens, Built-in EM card reading module, Supports ISAPI, ISUP5.0, Configuration via the web client, Face Recognition Distance: 0.3 m to 1.5 m, Supports mask recognition.
Face Recognition Terminal

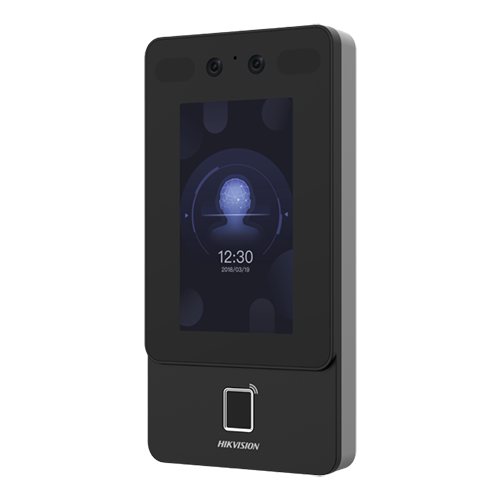

Hikvision DS-K1T342EFWX Value Series Face Access Terminal
User Support
Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Multiple Authentication
Face/Card/Fingerprint Authentication
Camera
2MP wide-angle lens
LCD Screen
4.3-inch LCD Touch Screen
Function
Support Face Anti-Spoofing and Audio prompt
System | |
Operation system | Linux |
Display | |
Dimensions | 4.3-inch |
Resolution | 272 × 480 |
Type | LCD |
Operation method | Capacitive touch screen |
Video | |
Pixel | 2 MP |
Lens | × 2 |
Video standard | PAL (Default) and NTSC |
Network | |
Wired network | 10 M/100 M self-adaptive |
Wi-Fi | Support |
Interface | |
Network interface | 1 |
RS-485 | 1 |
Wiegand | 1 |
Lock output | 1 |
Exit button | 1 |
Door contact input | 1 |
TAMPER | 1 |
USB | 1 |
Capacity | |
Card capacity | 3,000 |
Face capacity | 1,500 |
Fingerprint capacity | 3,000 |
Event capacity | 150,000 |
Authentication | |
Card type | EM Card (125 KHz Frequency) |
Face recognition duration | ＜0.2 s |
Face recognition accuracy rate | ＞99% |
Face recognition distance | 0.3 to 1.5 m |
Fingerprint recognition duration | ＜1 s |
Function | |
Face anti-spoofing | Support |
Audio prompt | Support |
Time synchronization | Support |
General | |
Power supply | 12 VDC/1 A (power adapter included) |
Working temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
Working humidity | 0 to 90% (No condensing) |
