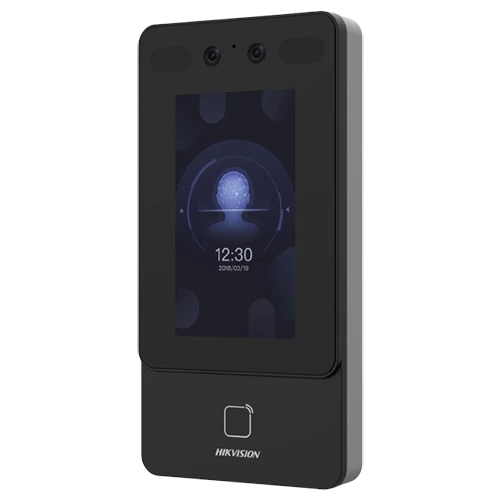

DS-K1T342MWX
Hikvision DS-K1T342MWX Value Series Face Access Terminal, Max.1500 faces capacity, and Max.3000 cards, Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, Built-in M1 card reading module, Two-way audio with client software, indoor station, & main station, Supports TCP/IP, Wi-Fi: Support, 2.4 G, 802.11b/g/n, Supports ISAPI, ISUP5.0, Configuration via the web client, Face recognition. Distance: 0.3 m to 1.5 m, Duration < 0.2 s/User, Accuracy rate ≥ 99%, Supports mask recognition, 1 RJ-45, 10/100 M self-adaptive, Lock control x1, Exit button x1, Door contact input x1, TAMPER x1, 1 Wiegand (Hik 26bit, Hik 34bit), 13.56 MHz M1 Card reading frequency, Face anti-spoofing, 12 VDC, 1A.
Face Recognition Terminal
Hikvision DS-K1T342MWX Value Series Face Access Terminal
User Support
Max.1500 faces capacity, and Max.3000 cards
Interface
Two-way audio with client software,, Supports TCP/IP, Wi-Fi
Camera
2MP wide-angle lens, lens x2
LCD Screen
Face Recognition Terminal, 4.3-inch LCD touch screen,
Function
Support Face Anti-Spoofing and Audio prompt
Display |
|
Screen size |
4.3 inch |
Operation method |
Capacitive touch screen |
Type |
LCD |
Video |
|
Lens |
2 |
Resolution |
2 MP |
Audio |
|
Audio quality |
Noise suppression and echo cancellation |
Network |
|
Wired network |
Support |
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
Interface |
|
Network interface |
1 RJ-45, 10/100 M self-adaptive |
Lock control |
1 |
Exit button |
1 |
Door contact input |
1 |
TAMPER |
1 |
RS-485 |
1 RS-485 (Half duplex, HIKVISION) |
Wiegand |
1 Wiegand (Hik 26bit,Hik 34bit) |
USB |
1 |
Authentication |
|
Card type |
M1 card |
Card reading frequency |
13.56 MHz |
General |
|
Power supply |
12 VDC, 1 A (power adapter included) |
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
Working humidity |
0 to 90% (No condensing) |
Dimensions |
91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") |
Installation |
Wall mounting |
Weight |
Gross weight: 0.93 kg (2.05 lb) Net weight: 0.36 kg (0.79 lb) |
Platform |
Hik-ProConnect & HikCentral Professional |
Function |
|
Face anti-spoofing |
Support |
Display |
|
Screen size |
4.3 inch |
Operation method |
Capacitive touch screen |
Type |
LCD |
Video |
|
Lens |
2 |
Resolution |
2 MP |
Audio |
|
Audio quality |
Noise suppression and echo cancellation |
Network |
|
Wired network |
Support |
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
Interface |
|
Network interface |
1 RJ-45, 10/100 M self-adaptive |
Lock control |
1 |
Exit button |
1 |
Door contact input |
1 |
TAMPER |
1 |
RS-485 |
1 RS-485 (Half duplex, HIKVISION) |
Wiegand |
1 Wiegand (Hik 26bit,Hik 34bit) |
USB |
1 |
Authentication |
|
Card type |
M1 card |
Card reading frequency |
13.56 MHz |
General |
|
Power supply |
12 VDC, 1 A (power adapter included) |
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
Working humidity |
0 to 90% (No condensing) |
Dimensions |
91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96") |
Installation |
Wall mounting |
Weight |
Gross weight: 0.93 kg (2.05 lb) Net weight: 0.36 kg (0.79 lb) |
Platform |
Hik-ProConnect & HikCentral Professional |
Function |
|
Face anti-spoofing |
Support |
