DS-K1T343MFWX

DS-K1T343MFWX

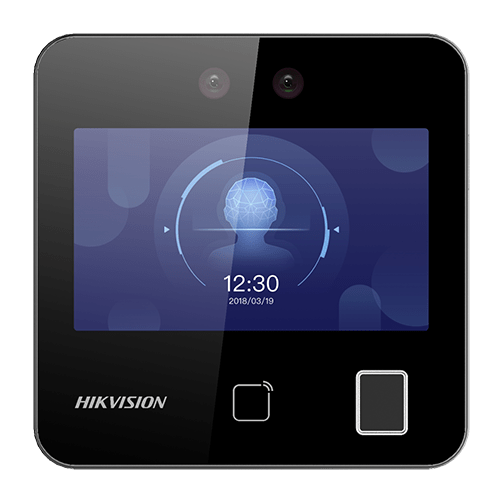

Hikvision DS-K1T343MFWX Value Series Face Recognition Terminal, Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards, 4.3-inch LCD touch screen, 2MP wide-angle lens, Built-in Mifare card reading module, Support Time Attendance, Two-way audio with client software, Supports TCP/IP & Wi-Fi, Supports ISAPI, ISUP5.0, Face recognition. Distance: 0.3 m to 1.5 m, Duration < 0.2 s/User, Accuracy rate ≥ 99%, 12 VDC/1A.

Value Series Face Access Terminal

Hikvision DS-K1T343MFWX Value Series Face Recognition Terminal

Camera

2 Mega Pixel wide-angle lens

User Support

Max.1500 Faces Capacity, Max.3000 Fingerprints Capacity, and Max.3000 Cards

LCD Touch Screen

4.3-inch (480 × 272 Resolution) Capacitive Touch Screen

Function

Support Face Anti-Spoofing, Time Synchronization

Interface

Network Interface x1, RS-485 x1, Wiegand x1, Lock Output x1, Exit Button x1, USB x1

System

Operation system

Linux

Display

Dimensions

4.3-inch

Resolution

480 × 272

Type

LCD

Operation method

Capacitive touch screen

Video

Pixel

2 MP

Lens

× 2

Video standard

PAL (Default) and NTSC

Network

Wired network

10 M/100 M self-adaptive

Wi-Fi

Support

Interface

Network interface

1

RS-485

1

Wiegand

1

Lock output

1

Exit button

1

Door contact input

1

IO input

-

IO output

-

TAMPER

1

USB

1

Capacity

Card capacity

3,000

Face capacity

1,500

Fingerprint capacity

3,000

Event capacity

150,000

Authentication

Card type

Mifare 1 card

Card reading frequency

13.56 MHz

Face recognition duration

0.2 s

Face recognition accuracy rate

99%

Face recognition distance

0.3 to 1.5 m

Fingerprint recognition duration

1 s

Function

Face anti-spoofing

Support

Audio prompt

Support

Time synchronization

Support

General

Power supply

12 VDC/1 A

Working temperature

-10 °C to 40 °C (14 °F to 104 °F)

Working humidity

0 to 90% (No condensing)

Dimensions

118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86")

Application environment

Indoor

Installation

Wall Mounting; Base Mounting

Weight

Gross weight: 0.71 kg (1.57 lbs)

Net weight: 0.23 kg (0.51 lbs)
