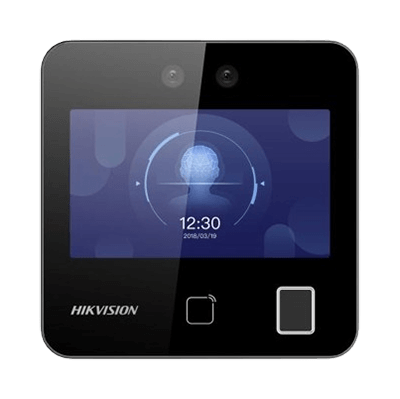

DS-K1T343MFWX-B
Hikvision DS-K1T343MFWX-B Value Series Face Access Terminal, Max.1500 faces capacity, Max.3000 fingerprints capacity, Max.3000 cards, and Event Capacity: 150,000, Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, Built-in M1 card reading module, Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi, Supports ISAPI, ISUP5.0, Face recognition Distance: 0.3 m to 1.5 m, Duration < 0.2 s/User, Accuracy rate ≥ 99%, Supports access control local time and attendance function, 12 VDC, 1A.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Value Series Face Access Terminal
Hikvision DS-K1T343MFWX-B Value Series Face Access Termina
Camera
2 Mega Pixel wide-angle lens, 2 Lens
User Support
Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
LCD Touch Screen
4.3-inch (480 × 272 Resolution) Capacitive Touch Screen
Function
Support Face Anti-Spoofing, Supports access control local time & attendance function
Interface
Two-way audio with client software, Supports TCP/IP, Wi-Fi
System |
|
Operating system |
Linux |
ROM |
4 GB |
RAM |
DDR3:512 M |
CPU |
800 MHz |
Display |
|
Screen size |
4.3 inch |
Operation method |
Capacitive touch screen |
Type |
LCD |
Resolution |
480 × 272 |
Video |
|
Lens |
2 |
Resolution |
2 MP |
Wide Dynamic Range (WDR) |
Support |
Video standard |
PAL (Default) and NTSC |
Focal length |
4 mm |
Aperture |
F 2.0 |
HOV |
HFOV:75.5° VFOV:41.5° DFOV:87° |
Audio |
|
Audio compression standard |
G.711U |
Audio compression bitrate |
64 Kbps |
Audio input |
Built-in omnidirectional microphone |
Audio output |
Built-in loudspeaker |
Audio quality |
Noise suppression and echo cancellation |
Volume adjustment |
Adjust via device or client |
Power output |
1 W |
Network |
|
Network protocol |
SDK, SIP, RTSP, ISAPI, ISUP5.0 |
Wired network |
Support |
Wi-Fi |
Support, 2.4 G, 802.11b/g/n |
Interface |
|
Network interface |
1 RJ-45, 10/100 M self-adaptive |
Lock control |
1 |
Exit button |
1 |
Door contact input |
1 |
TAMPER |
1 |
RS-485 |
1 RS-485 (Half duplex, HIKVISION) |
Wiegand |
1 Wiegand (W26, W34) |
USB |
1 |
Capacity |
|
Face capacity |
1,500 |
Fingerprint capacity |
3,000 |
Card capacity |
3,000 |
Event capacity |
150,000 |
Authentication |
|
Face recognition distance |
0.3 to 1.5 m |
Face recognition accuracy rate |
>99% |
Face recognition duration |
<0.2 s |
Fingerprint recognition duration |
<1 s |
Card type |
M1 card |
Card reading frequency |
13.56 MHz |
Card reading distance |
0 to 5 cm (Normal Card); 0 to 3 cm (Card with Different Shapes) |
Card reading duration |
<1 s |
General |
|
Supplement light |
IR light |
Power supply |
12 VDC, 1 A (power adapter included) Supports power supply by battery in the bracket |
Working temperature |
-10 °C to 40 °C (14 °F to 104 °F) |
Working humidity |
0 to 90% (No condensing) |
Dimensions |
118.4 mm × 118.4 mm × 21.8 mm (4.66" × 4.66" × 0.86") |
Installation |
Wall mounting, base mounting |
Weight |
Gross weight: 0.71 kg (1.57 lb) Net weight: 0.23 kg (0.51 lb) |
Application environment |
Indoor |
Platform |
Hik-ProConnect and HikCentral Professional |
Function |
|
Live view |
Support |
Two-way audio |
Support |
Multi-factor authentication |
Support |
Face anti-spoofing |
Support |
First person in |
Support |

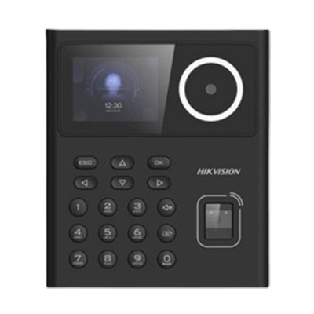

Suggested Alternatives
