DS-K1T804AMF

DS-K1T804AMF

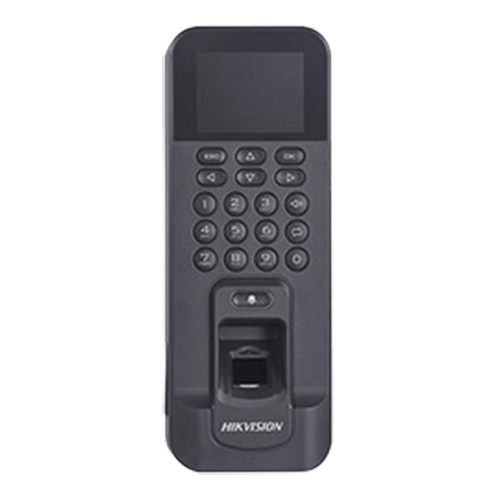

Hikvision DS-K1T804AMF (Fingerprint, Mifare 1 Card) 2.4-inch LCD Display Standalone Access Control Terminal, 3,000 fingerprints, 3,000 cards and 100,000 events storage, 1 loudspeaker, 1 buzzer, Support Access Control and Time Attendance Function, Optical Fingerprint Module, Uplink Communication: TCP-IP, Wi-Fi, RS-485, Wiegand interface, Alarm input and output interface, Supports ISAPI protocol and ISUP 5.0 protocol, 12 VDC/1 A

Access Control

Hikvision DS-K1T804AEF (Mifare Card, Fingerprint)

2.4-inch LCD Access Control Terminal

User Support

Max. 3000 Users, Max. 3000 Fingerprints & Card, Max. 100,000 Event records

Authentication Mode

Different authentication types can be configured according to different situations, authentication via PIN code is also supported

Interface

Communication via TCP/TP and Wi-Fi

1 Loudspeaker, 1 Buzzer

Time Attendance

Support Time Attendance

Features

Tampering Detection, Unlocking Overtime Alarm, Invalid Card Swiping Over Times alarm, Duress card alarm, and so on

Specifications

System

Operating system

Linux

Screen

Screen size

2.4-inch

Resolution

320 × 240

Type

LCD-TFT display screen

Audio

Audio output

1 loudspeaker, 1 buzzer

Network

Wired network

TCP/IP, 10/100Mbps, self-adaptive

Wi-Fi

Support

Interface

Network interface

1

RS-485

1

Wiegand

1

Lock control

1

Exit button

1

Door contact input

1

Alarm input

1

Alarm output

1

TAMPER

1

USB

1

Capacity

Card capacity

3000

Fingerprint capacity

3000

Event capacity

100,000

Authentication

Card type

Mifare 1 card

Card reading distance

0 to 4.5 cm

Card reading duration

  1 s

Fingerprint module

Optical fingerprint module

Fingerprint comparing mode

1:1 and 1:N

Fingerprint recognition duration

  1 s

Others

Indicator

Power/status (red/green)

Power supply

12 VDC/1 A

Working temperature

-10 °C to +55 °C (14 °F to +131 °F)

Working humidity

10% to 90% (no condensing)

Color

Black

Dimensions

205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")

Installation

Surface mounting
