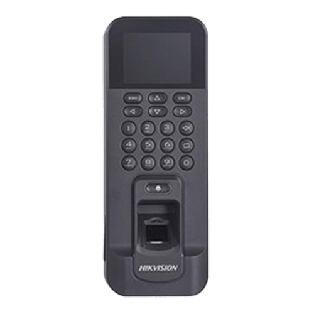

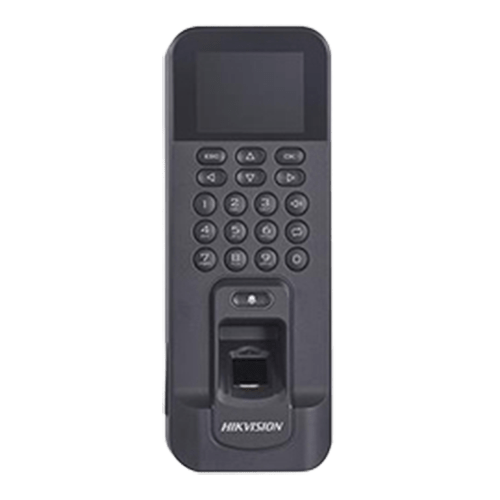

Hikvision DS-K1T804BMF Biometric Time Attendance and Access Control Standalone Device with Mi-fare Card Reader, 3000 Cards and Fingerprints Capacity, 100,000 Logs, Wi-Fi, Relay (Lock Output) × 1, and Alarm Output × 1, 12 VDC/1A.
Communication Interface
Communication via TCP/TP and Wi-Fi
Supports Wiegand interface
Fingerprint
Fingerprint capacity: 3000
Authentication Mode
Support Fingerprint, Mifare 1 card and Password Authentication Mode
Response Time
Fingerprint Authentication <1s
Card Authentication <1s
Audio Output
1 loudspeaker, 1 buzzer
Record History
Up to 3,000 Valid Cards, Up to 100,000 Event & Up to 150,000 Attendance Records
Specifications | |
System | |
Operation system | Linux |
Display | |
Size | 2.4-inch |
Resolution | 320 × 240 |
Type | LCD-TFT display screen |
Audio | |
Audio output | 1 loudspeaker, 1 buzzer |
Network | |
Wired network | TCP/IP, 10/100Mbps, self-adaptive |
Wi-Fi | Support |
Interface | |
Network interface | 1 |
Wiegand | 1 |
Lock output | 1 |
Exit button | 1 |
Door contact input | 1 |
IO input | 1 |
IO output | 1 |
TAMPER | 1 |
USB | 1 |
Capacity | |
Card capacity | 3000 |
Fingerprint capacity | 3000 |
Event capacity | 100,000 |
Authentication | |
Card type | Mifare 1 card |
Card reading distance | 0 to 4.5 cm |
Card reading duration | ＜ 1 s |
Fingerprint module | Optical fingerprint module |
Fingerprint comparing mode | 1:1 and 1:N |
Fingerprint recognition duration | ＜ 1 s |
Fingerprint False Acceptance Rate (FAR) | ≤ 0.001 % |
Fingerprint False Rejection Rate (FRR) | ≤ 0.01 % |
General | |
Indicator | Power/status (red/green) |
Power supply | 12 VDC/1 A |
Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
Working humidity | 10% to 90% (no condensing) |
Dimensions | 205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46") |
Installation | Surface mounting |
