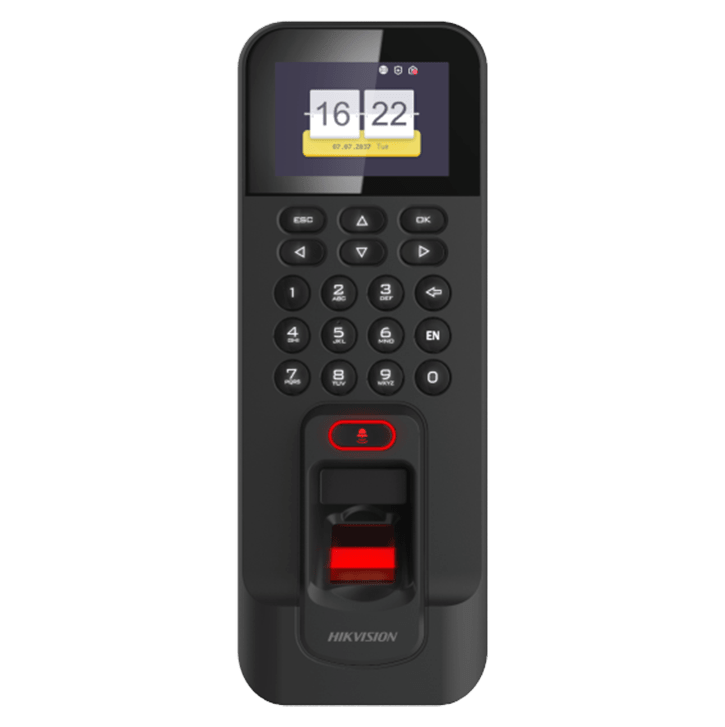

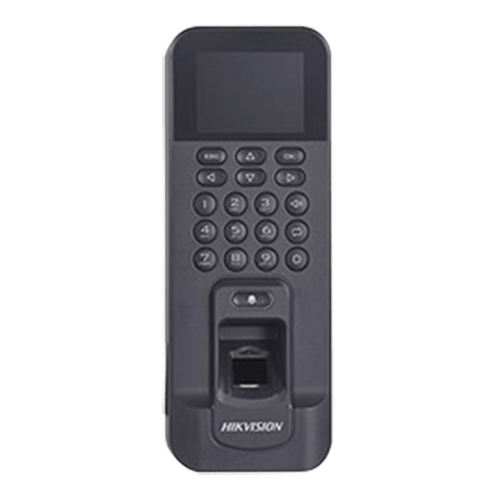

DS-K1T804MF

DS-K1T804MF

Hikvision Biometric Time Attendance and Access Control Standalone Device with Mifare Card Reader, 3000 Cards and Fingerprints, 100,000 Logs, Wifi, Relay (Lock Output) × 1, and Alarm Output × 1, IP42

Communication Interface

Wi-Fi, RS-485 (For Secure Door Control Unit)

Wiegand Output (W26/W34) and Input (Wiegand 26/34)

User Support

Support upto 3000 users with 10 Fingerprints Per User

Authentication Mode

Support Fingerprint, MifareCard and Password Authentication Mode

Response Time

Fingerprint Authentication <1s

Card Authentication <1s

Shifts

Support Upto 32 Normal Shift, 32 Man-Hour Shifts

Record History

Up to 3,000 Valid Cards, Up to 100,000 Event & Up to 150,000 Attendance Records

Specifications

Operating System

Linux

Storage

Up to 3000 Valid Cards;

Up to 100,000 Event Records;

Up to 150,000 Attendance Records

Fingerprint Capacity

Up to 3000 Fingerprints; Up to 10 Fingerprints for Each Person

Fingerprint Comparing Mode

1:1 and 1:N, N=3000

Card Reading Response Duration

< 1 s

Fingerprint Authentication Duration

< 1 s

FAR(False Accept Rate)

≤ 0.001 %

FRR (False Rejection Rate)

≤ 0.01 %

Fingerprint Recognizer

Optical Fingerprint Recognizer Module

External Card Reader

Standard Wiegand26/34

Card Reading Mode

Supports Mifare Card, Including Cards with Special Shapes; Supports Reading Card in Metal Environment

Card Reading Distance

0 to 4.5cm

Keyboard

Keyboard (Back Light)

Reset Key

× 1

Communication Interface

TCP/IP, RS-485 (For Secure Door Control Unit), Wiegand Output (W26/W34) and Input (Wiegand 26/34)

Wi-Fi

Support

Wiegand Interface

Output: Wiegand 26/34; Input: Wiegand 26/34

Transmission Rate

TCP/IP: 10/100Mbps, Self-adaptive; RS485: 19200 bps-N-8-1

Input Interface

Exit Button × 1, Door Sensor × 1 and Alarm Input × 1

Output Interface

Relay (Lock Output) × 1, and Alarm Output × 1

USB

USB 2.0; Type A

LCD Screen

2.4-inch (320 × 240 LCD-TFT Display Screen)

Audio

1 Buzzer and 1 Loudspeaker

LED Indicator

Power/Status (Red/Green)

Power Supply

12 VDC/2 A

Working Temperature

-10 ° C to 55 ° C (14 ° F to 131 ° F)

Working Humidity

10% to 90% (No Condensing)

Water-Proof

IP42

Temper-Proof

Support

Appearance Color

Black (Included), Gold (Optional), Silver (Optional), White (Optional)

Dimension (L × W × H)

205 mm × 76.5 mm × 37 mm (8.07" × 3.01" × 1.46")

Installation

Surface Mounting, Metal Door Mounting, Installation with Gang Box
