DS-K1T808EFWX-B

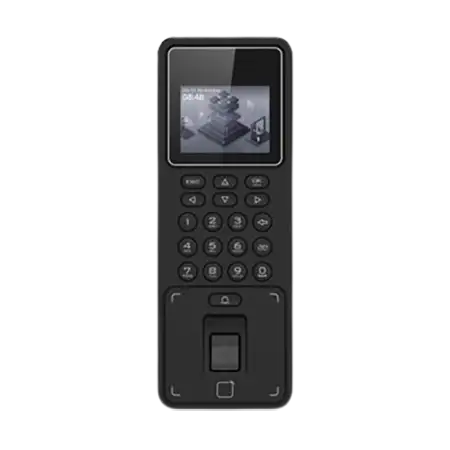

Hikvision DS-K1T808EFWX-B Fingerprint Terminal, 2.4-inch LCD screen, Multiple authentication methods, including fingerprint, card (EM card), and PIN, etc., Max. 3000 cards, 3000 fingerprints and 100,000 events, Supports ISAPI and ISUP 5.0 protocols, Configuration via the PC web client and mobile web client, Supports wired network and Wi-Fi (AP mode), Supports wiring with secure door control unit or card reader via RS-485, Supports power supply by battery in the bracket, Supports access control and local time and attendance function, Fingerprint capacity: 3000, Card capacity: 3000, Event capacity: 100,000, 12 VDC.

https://www.esco.pk/web/image/product.template/24631/image_1920?unique=788b6a9

    Rs. 0.00 0.0 PKR Rs. 0.00

    Not Available For Sale

    This combination does not exist.

    Add to Cart
    Add to wishlist Compare

    Please get in touch for pricing & availability.

    Contact Us
    Hikvision

    Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

    ​

    Fingerprint Terminal

    Hikvision DS-K1T808EFWX-B Fingerprint Terminals

    LCD

    2.4Inch LCD Screen

    Multiple authentication method

    Fingerprint, card (EM card), and PIN, etc

    Capacity

    Max. 3000 cards, 3000 fingerprints and 100,000 events

    Network

    Supports wired network and Wi-Fi (AP mode)

    Function

    Supports access control and attendance function, Supports power supply by battery in the bracket

    System

    Operating system

    Linux

    Display

    Screen size

    2.4 inch

    Type

    LCD

    Resolution

    320 × 240

    Audio

    Audio output

    Built-in buzzer

    Network

    Wired network

    Support

    Wi-Fi

    Support, 2.4 G, 802.11b/g/n

    Interface

    Network interface

    1 RJ-45, 10/100 M self-adaptive

    Lock control

    1

    Exit button

    1

    Door contact input

    1

    TAMPER

    1

    RS-485

    1 RS-485 (Half duplex,     HIKVISION)

    Wiegand

    1 Wiegand (W26, W34)

    USB

    1

    Capacity

    Fingerprint capacity

    3000

    Card capacity

    3000

    Event capacity

    100,000

    Authentication

    Card type

    EM card

    Fingerprint module

    Optical fingerprint module

    Fingerprint comparing mode

    1:1 and 1:N

    General

    Power supply

    12 VDC

    Supports power supply by battery in the bracket

    Power consumption

    ≤ 6 W

    Working temperature

    -10 °C to 55 °C (14 °F to 131 °F)

    Working humidity

    0 to 90% (No condensing)

    Language

    English, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean, Japanese

    Keypad

    Support
