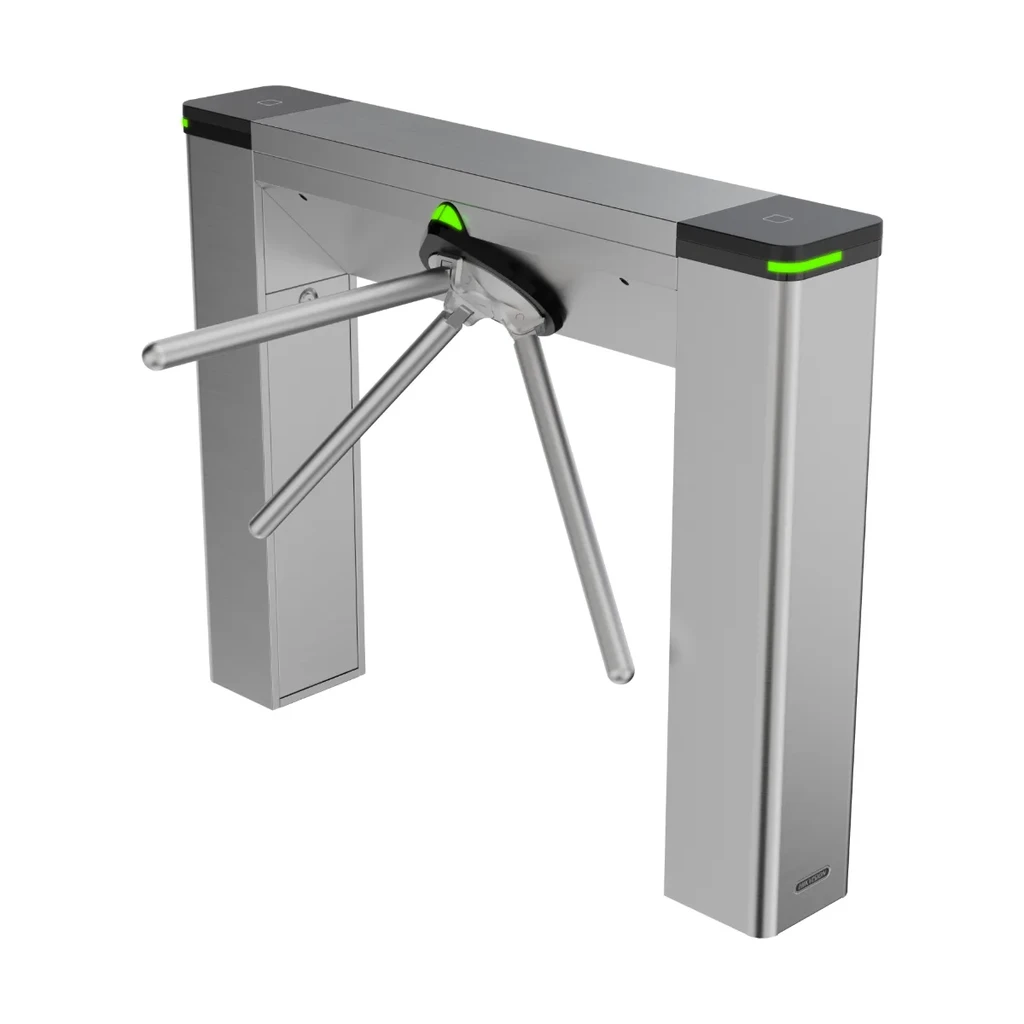

DS-K3G501BLX
Pro tripod turnstile, 550 mm lane, outdoor
- 30 to 60 persons per minute, MCBF 3 million
- Arms drop on fire alarm, for evacuation
- Takes a Hikvision face terminal (Pg)
- Open, closed, free and forbidden modes
DS-K3G501BLX
Pro tripod turnstile, 550 mm lane, outdoor
- 30 to 60 persons per minute, MCBF 3 million
- Arms drop on fire alarm, for evacuation
- Takes a Hikvision face terminal (Pg)
- Open, closed, free and forbidden modes
Key specs
- One 550 mm lane
- 30 to 60 persons per minute
- MCBF 3 million or more
- Arms drop automatically on fire alarm, for evacuation
- Pg: face terminal bought separately
- Modes: open, closed, free access, forbidden; relay input for any access system
- SUS304 stainless steel 1.5 mm, 1.2 mm stainless arms; IPX4, outdoor (waterproof)
- 100-120 / 200-240 VAC; 15 W standby, 30 W working, 40 W peak
- -20 to 65 °C; 232 x 960 x 1208 mm, 41.8 kg
| System | |
|---|---|
| MCBF | ≥ 3 million times |
| Interface | |
| Exit button | 2 |
| Fire alarm input | 1 |
| Hardware | |
| Access controller | Not supplied |
| Function | |
| Audio prompt | Not support |
| Keypad configuration | Support |
| Modes | Barrier open, barrier closed, free access and forbidden modes selectable |
| Third-party integration | Any third-party access control system via relay output |
| Fire alarm passing | When triggered, the barrier drops automatically for emergency evacuation |
| Indicator | LED shows entrance / exit and passing status |
| General | |
| Throughput | 30 to 60 persons per minute (the actual throughput depends on the person passing rate and passing method) |
| Lane width | 550 mm (21.65") |
| Barrier material | 1.2 mm stainless pipe |
| Pedestal material | SUS304 stainless steel 1.5 mm |
| Power consumption | Standby: 15 W; working: 30 W; peak: 40 W |
| Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working humidity | 0% to 95% (no condensing) |
| Protective level | IPX4 |
| Application environment | Outdoor (waterproof) |
| Dimensions | Without package: 232 mm × 960 mm × 1208 mm (9.1" × 37.8" × 47.6"); with package: 410 mm × 1180 mm × 1350 mm (16.1" × 46.5" × 53.1") |
| Weight | Without package: 41.78 kg (92.11 lb); with package: 51.45 kg (113.43 lb) |
| Approval | CE / CB / RoHS / REACH / WEEE |
| Power supply | 100 to 120 VAC / 200 to 240 VAC, 50/60 Hz |
| Accessory (optional) | |
| Card reader | DS-K1801AE, DS-K1801AM |
Know before you buy
Quick answers about the DS-K3G501BLX-R/Pg-Dm55, and how it compares.
Does it come with an access controller?
No. Hikvision supplies the turnstile without an access controller. Add a Hikvision face terminal (the Pg version takes one, bought separately), or connect your existing access system through the turnstile relay input.
How many people can pass per minute?
30 to 60 persons per minute. The real figure depends on how fast people show their card or face and walk through.
What happens in a fire alarm?
The turnstile has a fire alarm input: when it is triggered, the arms drop automatically so people can leave.
Can it go outdoors?
Yes. Hikvision rates it for outdoor use (waterproof), IPX4, -20 to 65 °C.
Value or Pro tripod?
The Value DS-K3G301LX: MCBF 2 million, 25 to 60 persons per minute, SUS304 1.0 mm, IPX4. The Pro DS-K3G501BLX: MCBF 3 million, 30 to 60 persons per minute, SUS304 1.5 mm, outdoor (waterproof), and selectable open, closed, free access and forbidden modes.
Can I buy it online?
Turnstiles are installed products, so we start with a free pre-sales consultation: our engineers survey the entrance, suggest the version and terminals, and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
