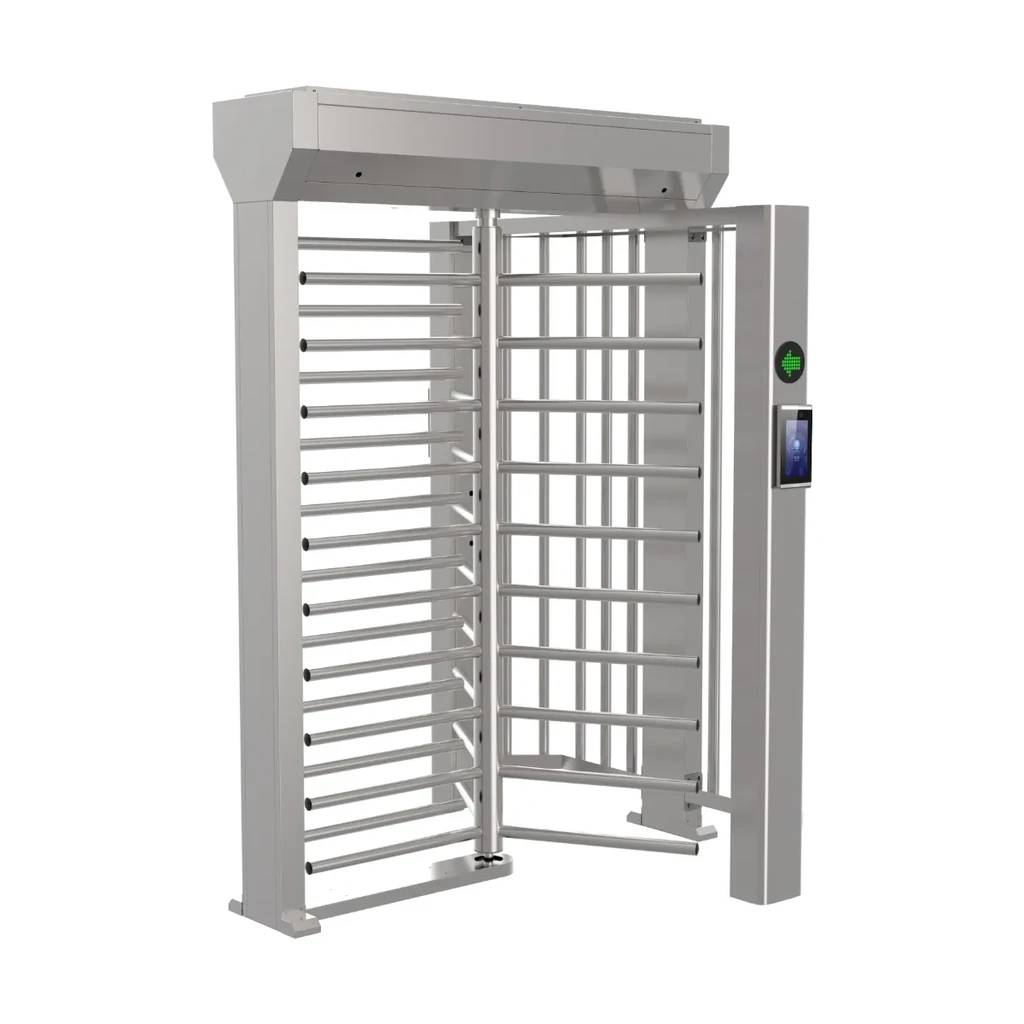

DS-K3H4411-120
Full height turnstile, one 650 mm lane
- One 650 mm lane, both directions
- SUS304 stainless steel, indoor and outdoor
- More than 30 persons per minute, hydraulic damper
- Arms turn freely in a power cut
DS-K3H4411-120
Full height turnstile, one 650 mm lane
- One 650 mm lane, both directions
- SUS304 stainless steel, indoor and outdoor
- More than 30 persons per minute, hydraulic damper
- Arms turn freely in a power cut
Key specs
- One lane, 650 mm wide, both directions
- Full height, 2300 mm
- More than 30 persons per minute
- MCBF more than 3 million cycles
- SUS304 stainless steel 1.5 mm, stainless steel pipe 1.2 mm
- Arms unlock into free passing in a power cut, for evacuation
- LED direction indicator, valid passing time; passage delay by DIP switch; hydraulic shock absorber
- 100 to 240 VAC; indoor and outdoor, -15 to 55 °C
- 1630 x 1580 x 2300 mm, 220 kg
| System | |
|---|---|
| MCBF | More than 3 million times |
| General | |
| Throughput | More than 30 persons per minute (the actual throughput depends on the person passing rate and passing method) |
| Lane width | 650 mm |
| Pedestal material | SUS304 stainless steel 1.5 mm (0.06"); stainless steel pipe 1.2 mm (0.05") |
| Power supply | 100 to 240 VAC; 50 to 60 Hz |
| Working temperature | -15 °C to 55 °C (5 °F to 131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Dimensions | Without package: 1630 mm × 1580 mm × 2300 mm (64.2" × 62.2" × 90.6"); with package: 2100 mm × 1290 mm × 1240 mm (82.7" × 50.8" × 48.9") |
| Application environment | Indoor and outdoor |
| Weight | Without package: 220 kg (485 lbs); with package: 320 kg (705 lbs) |
| Function | |
| Direction indicator | LED shows whether passing is allowed or forbidden |
| Power failure | Arms unlock into free passing for evacuation |
| Valid passing duration | Permission is cancelled if the person does not pass in time |
| Passage delay | Set by DIP switch on the control panel |
| Direction | Bi-directional |
| Shock absorber | Hydraulic, for smooth and quiet turning |
| Accessory (optional) | |
| Face terminal | DS-K1T671M, DS-K1T671, DS-K1T671MF Pro face access terminals |
Know before you buy
Quick answers about the DS-K3H4411-120/Pg-Dm65, and how it compares.
How many people can pass per minute?
More than 30 persons per minute. The real figure depends on how fast people show their face or card and walk through.
What happens in a power cut?
The arms unlock into free passing, so people can leave the site. Plan a guard or a second lock point if the site must stay closed during a power cut.
Is it noisy?
No. A hydraulic shock absorber keeps the rotation smooth and quiet.
Can it go outdoors?
Yes. Hikvision rates it for indoor and outdoor use, -15 to 55 °C, with a waterproof structure in SUS304 stainless steel. Clean it every month (every week near the sea or chemical plants); for those sites Hikvision suggests 316 stainless steel, so ask us first.
How do people get through?
The Pg version takes a Hikvision face terminal on the post (Hikvision lists the DS-K1T671MF, DS-K1T671M, DS-K1T671). The terminal checks the face or card and lets the person through. It turns both ways, so a second terminal can check people on the way out.
What if someone is let in but does not walk through?
The turnstile has a valid passing duration: if the person does not pass in time, the permission is cancelled and the next person must authenticate again. The delay is set with a DIP switch on the control panel.
Single lane or two lanes?
This is the single lane version, 650 mm wide. For two lanes in one frame, see the DS-K3H4420-120.
Can I buy it online?
Turnstiles are installed products, so we start with a free pre-sales consultation: our engineers survey the entrance, suggest the version and terminals, and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
