DS-KDM9403-FKP

DS-KDM9403-FKP

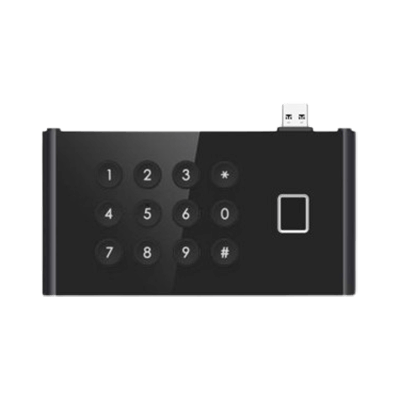

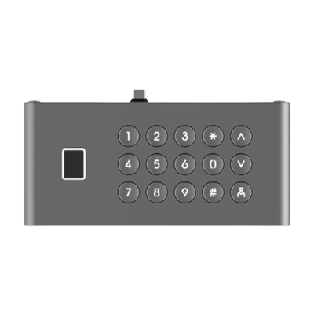

Hikvision DS-KDM9403-FKP Fingerprint & Keypad module of KD9403, 5000 high fingerprints capacity, Backlight compensation behind the keypad, 12 physical buttons, IP65 protection level.

Fingerprint & Keypad module

Hikvision DS-KDM9403-FKP Fingerprint & Keypad module of KD9403

Button

12 physical buttons

Fingerprint Capacity

5000 high fingerprints capacity

Protective Level

IP65 protection level

Capacity

Fingerprint capacity

5000

Device interfaces

USB

1 USB type-A, only connect to KD9403

General

Button

12 physical buttons

Installation

Surface mounting and flush mounting

Weight

Net weight: 0.260 kg Gross weight: 1.456 kg

Protective level

IP65

Working temperature

-30 °C to 60 °C (-22 °F to 140 °F)

Working humidity

10% to 90% (no-condensing)

Dimension (W × H × D)

76 mm × 145 mm × 28 mm (3" × 5.7" × 1.1")

Power supply

5 VDC, 0.5 A

Application environment

Outdoor

Material

Plastic
